Installation Procedure

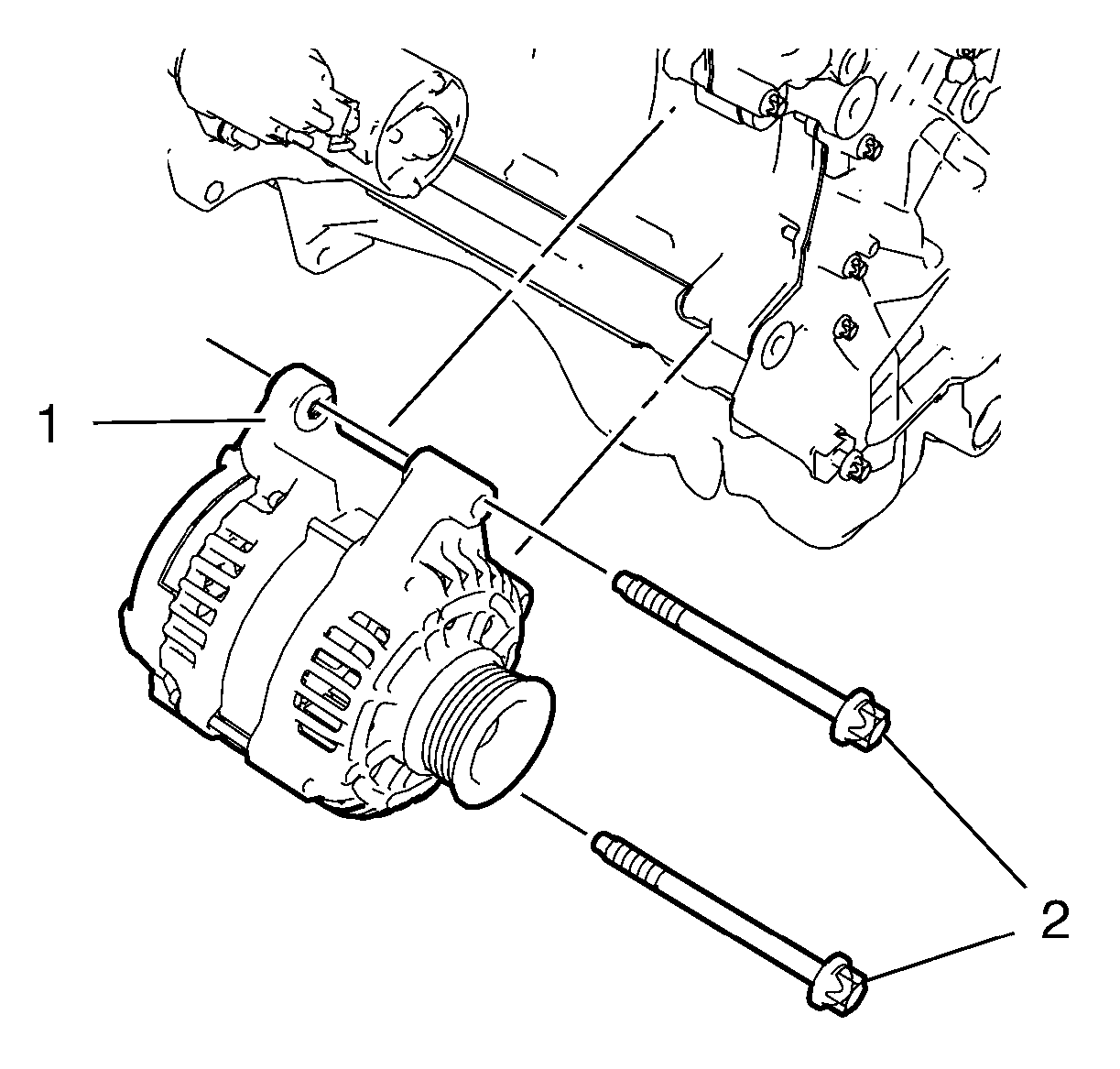

    Fig 1: Generator And Bolts
    GM2191720Courtesy of GENERAL MOTORS COMPANY
  1. Install the generator (1) from above.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the 2 generator bolts (2) and tighten to 35 N.m (26 lb ft).
  3. Raise the vehicle.
  4. Fasten the drive belt tensioner. Refer to Drive Belt Tensioner Replacement .

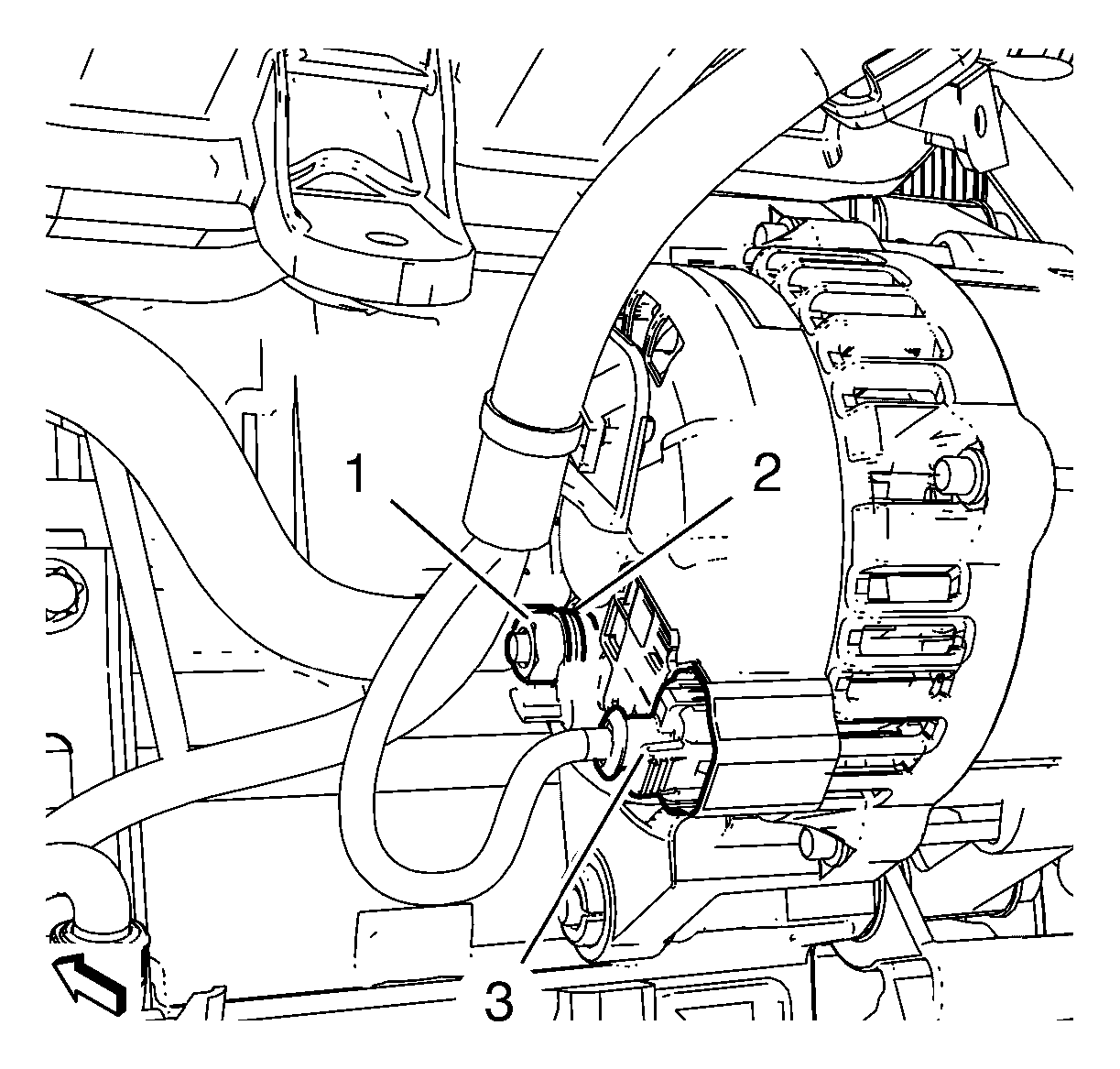

    5. Fig 2: Generator Positive Cable And Generator Wiring Harness Connector
    GM2191719Courtesy of GENERAL MOTORS COMPANY
  5. Connect the generator wiring harness connector (3).
  6. Install the generator positive cable (2).
  7. Install the generator positive cable nut (1) and tighten to 17 N.m (13 lb ft).
  8. If equipped, install the front compartment splash shield. Refer to Front Compartment Insulator Replacement .
  9. If equipped, remove the engine shield.
  10. Lower the vehicle.
  11. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
  12. Close the hood.
