Radiator Support Bracket Replacement
WARNING: This page is about a different car, the 2011 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

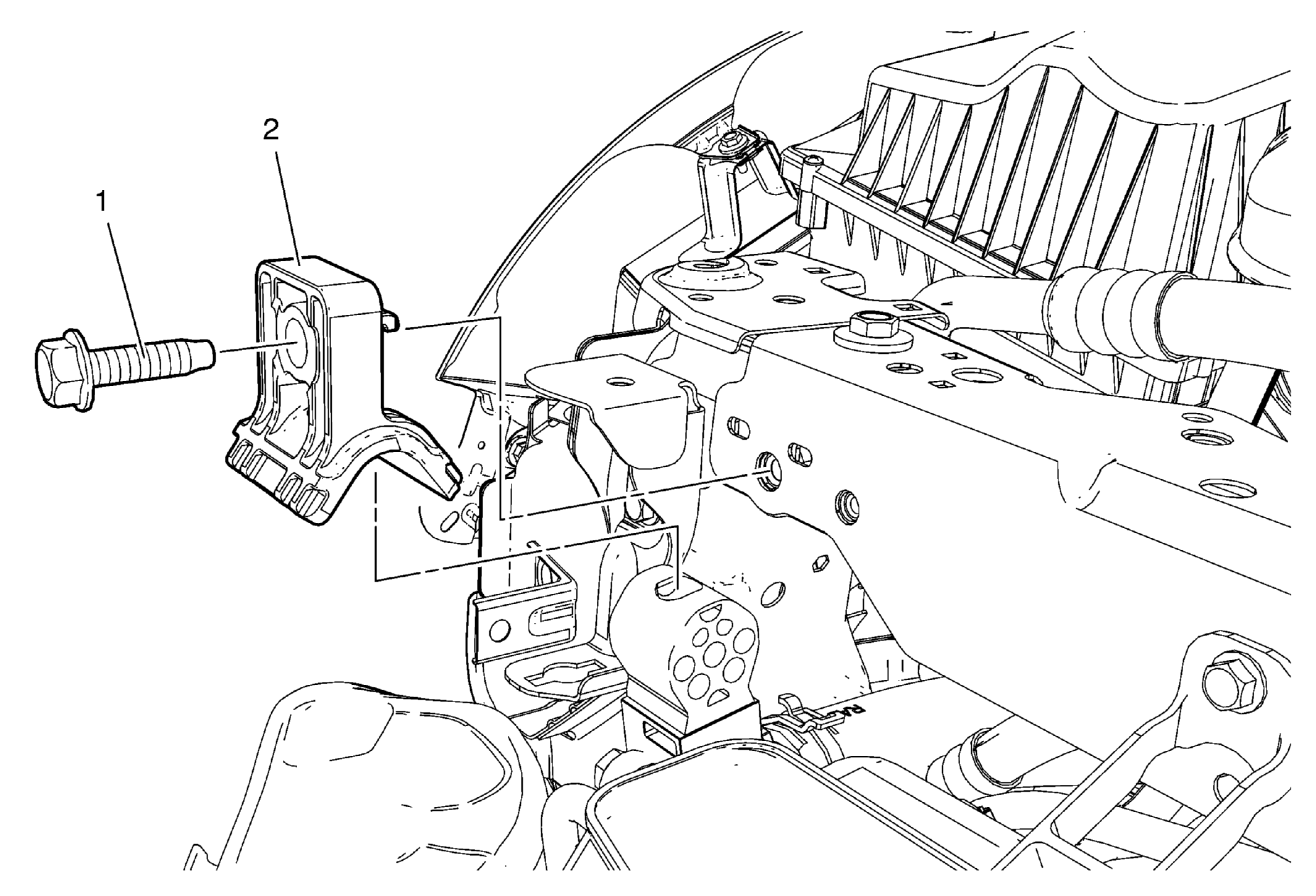

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement . |
|
| 1 | Radiator Support Bracket Bolt
CAUTION:
Refer to Fastener Caution
.
Tighten: 22 N.m (17 lb ft) |
| 2 | Radiator Support Bracket Procedure: Pull the radiator forward until the bracket is reachable. |
