Reading Lamp Replacement

WARNING: This page is about a different car, the 2011 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

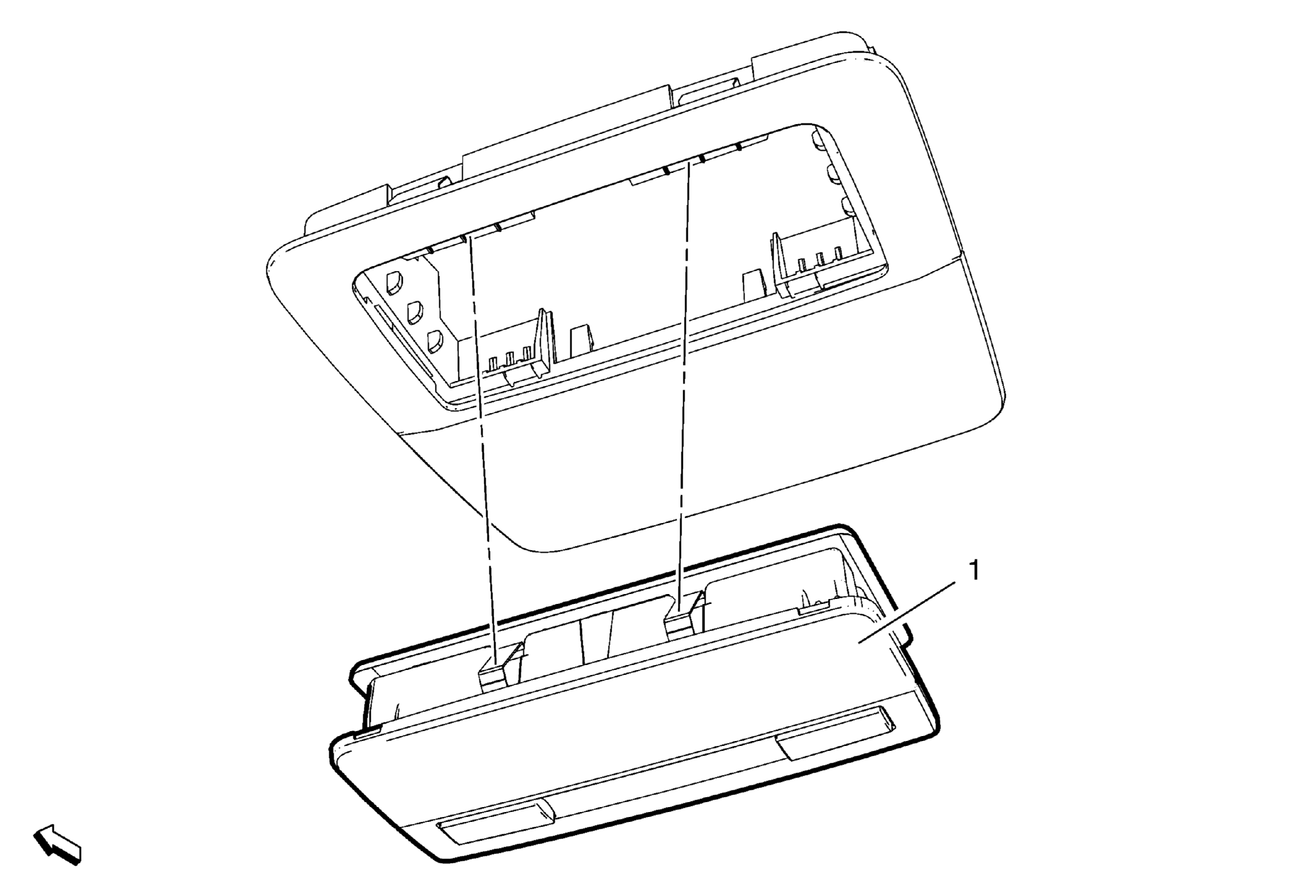

Fig 1: Reading Lamp

Courtesy of GENERAL MOTORS CORP.

Preliminary Procedures: Remove roof console. Refer to Roof Console Replacement .
1	Reading Lamp Procedure Disconnect the electrical connector. Change the bulb, as needed.

Preliminary Procedures:
Remove roof console. Refer to Roof Console Replacement .

Callout

Component Name

Reading Lamp

Procedure

Disconnect the electrical connector.
Change the bulb, as needed.
