Inflatable Restraint Sensing and Diagnostic Module Replacement

WARNING: This page is about a different car, the 2011 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

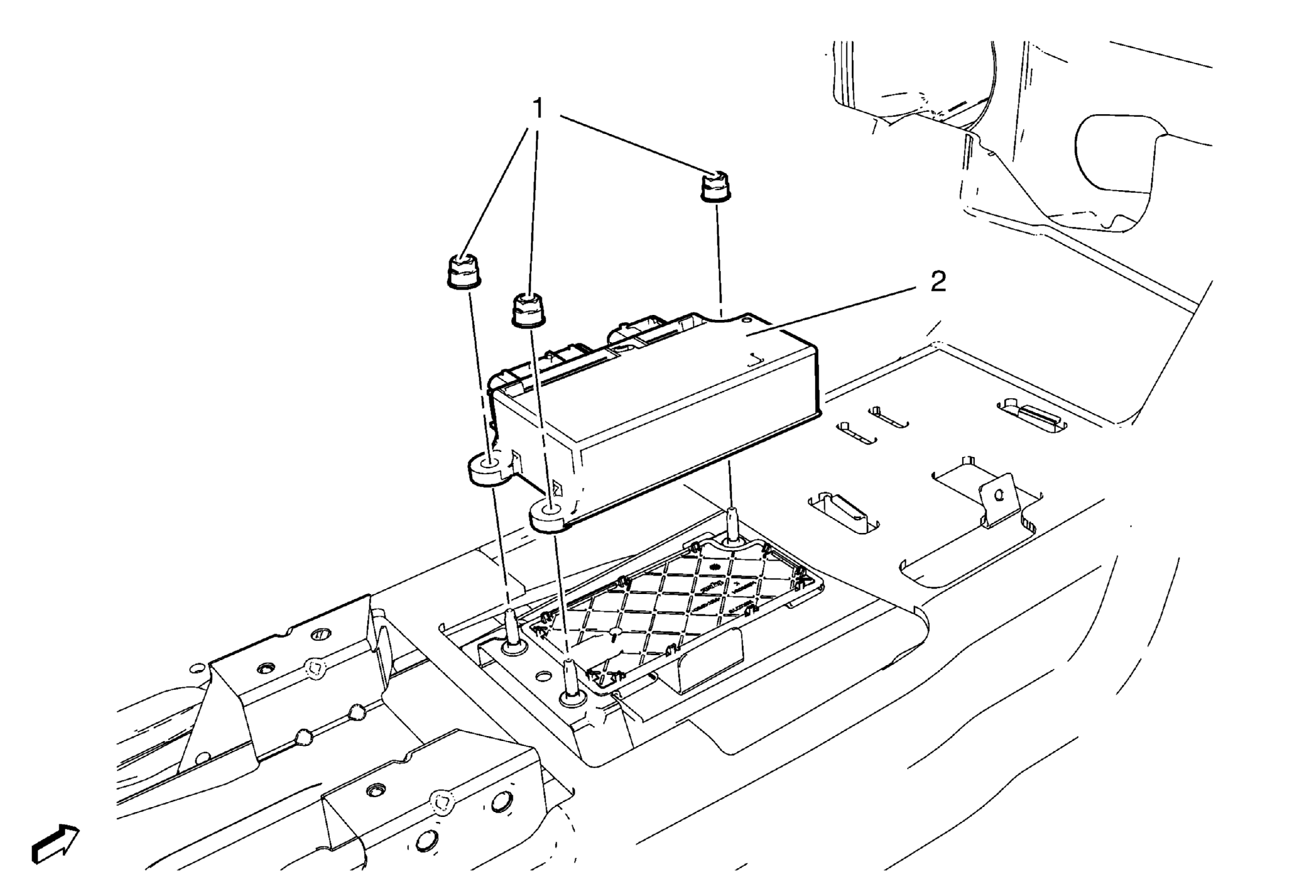

Fig 1: Inflatable Restraint Sensing and Diagnostic Module Assembly And Nuts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling . Remove the instrument panel lower trim panel. Refer to Instrument Panel Lower Trim Panel Replacement - Left Side and Instrument Panel Lower Trim Panel Replacement - Right Side . Disconnect the electrical connector.
1	Inflatable Restraint Sensing and Diagnostic Module Nut (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Inflatable Restraint Sensing and Diagnostic Module Assembly Procedure: If installing a replacement module, program the module. Refer to Control Module References .

Callout

Component Name

Preliminary Procedures

Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling .
Remove the instrument panel lower trim panel. Refer to Instrument Panel Lower Trim Panel Replacement - Left Side and Instrument Panel Lower Trim Panel Replacement - Right Side .
Disconnect the electrical connector.

Inflatable Restraint Sensing and Diagnostic Module Nut (Qty: 3)

CAUTION: Refer to Fastener Caution .

Tighten: 10 N.m (89 lb in)

Inflatable Restraint Sensing and Diagnostic Module Assembly
Procedure:
If installing a replacement module, program the module. Refer to Control Module References .
