Rear Seat Side Inflatable Restraint Module Replacement
WARNING: This page is about a different car, the 2011 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

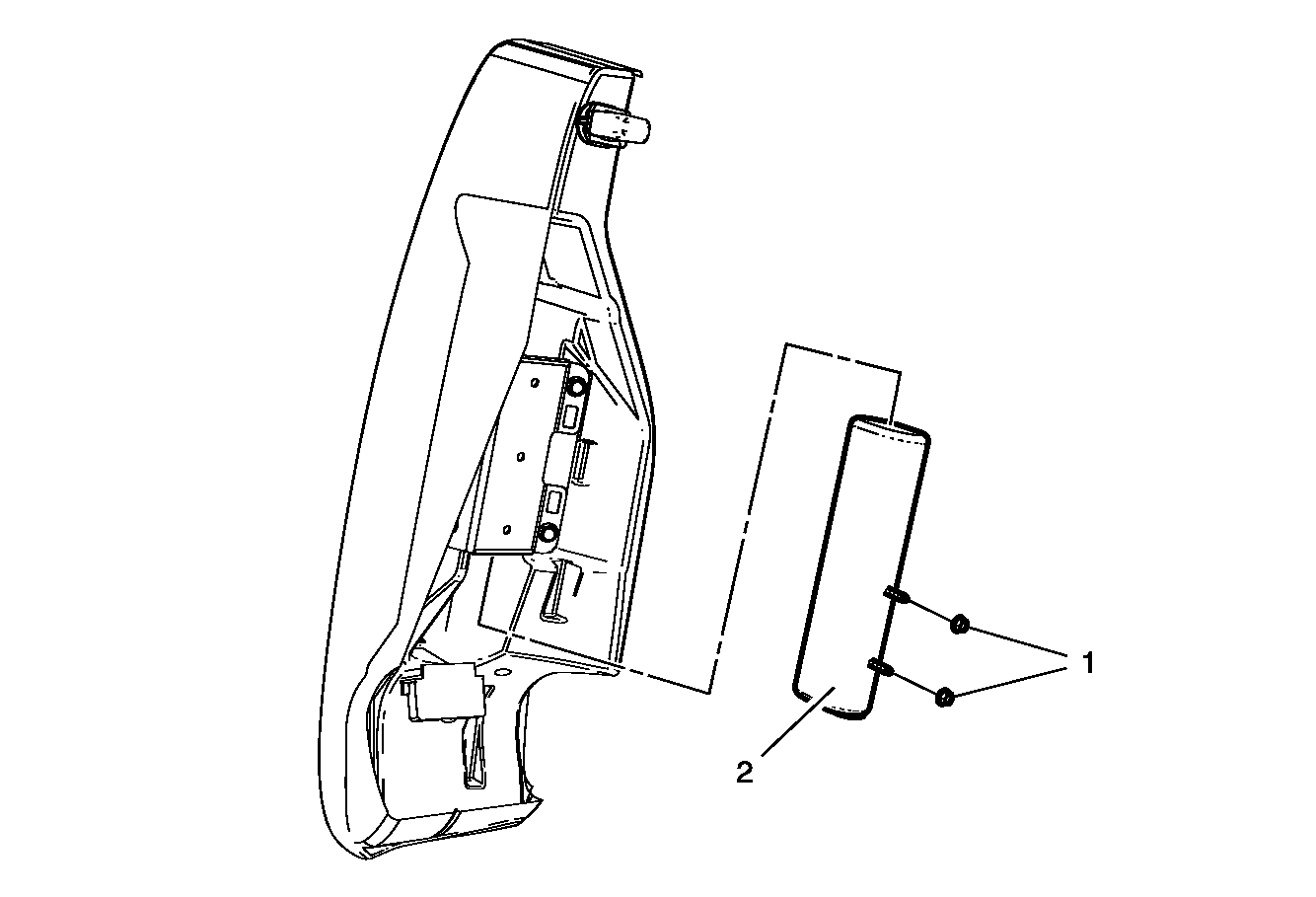

| Callout | Component Name |
|---|---|
|
WARNING:
Refer to SIR Warning
. Preliminary Procedures: Remove the rear seat back cushion bolster. Refer to Rear Seat Back Cushion Bolster Replacement
. |
|
| 1 | Rear Seat Side Inflatable Restraint Module Nut (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 3.25 N.m (29 lb in) |
| 2 | Rear Seat Side Inflatable Restraint Module Procedure: Disconnect electrical connector. |
