Installation Procedure

WARNING: This page is about a different car, the 2011 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

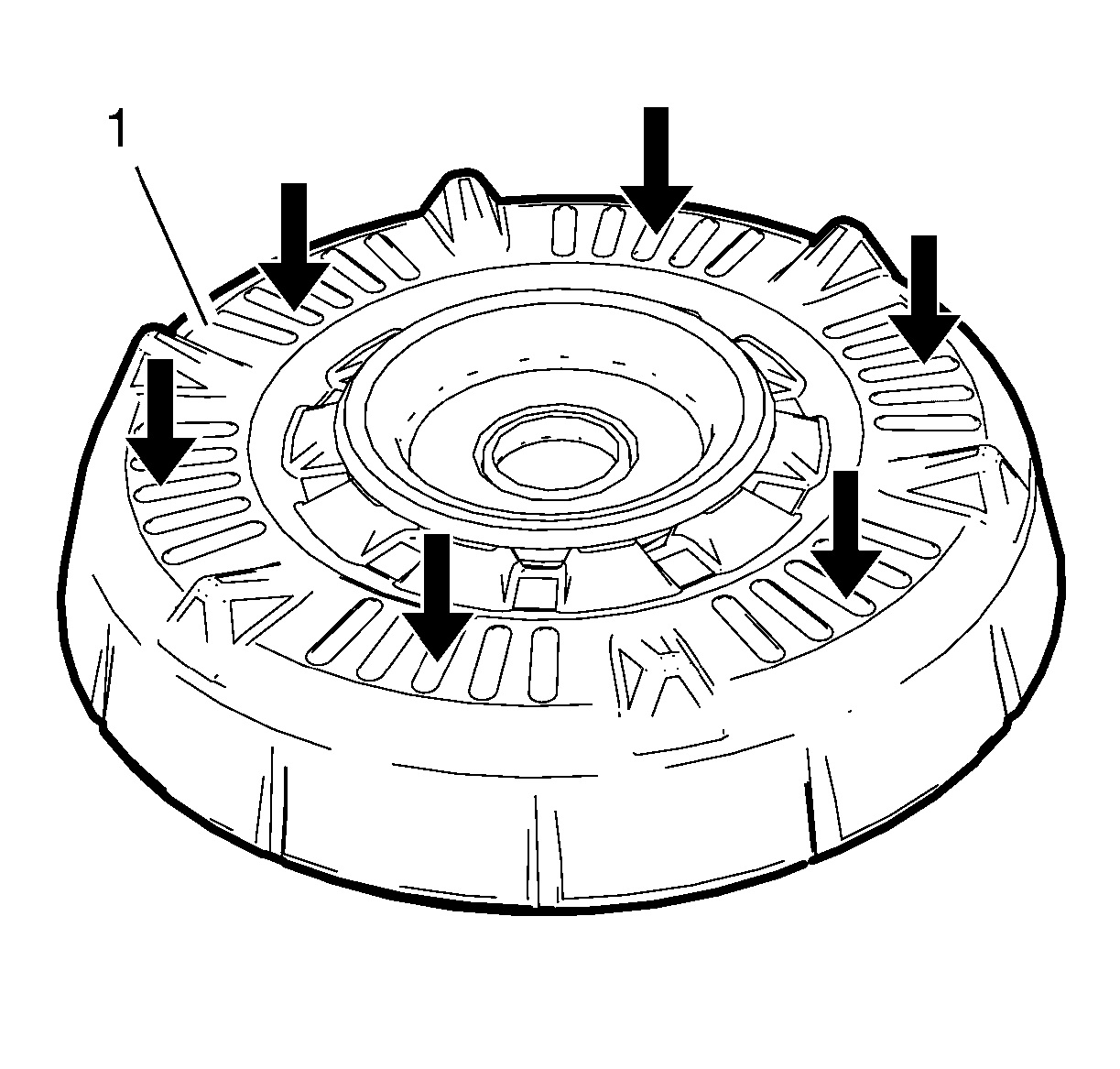

GM2887231Courtesy of GENERAL MOTORS CORP.
  1. Lightly apply rubber lubricant to the upper strut mount using rubber lubricant GM P/N 12345884 (Canadian P/N 88863415) to ease installation and for proper seating of mount.
  2. Install the front strut assembly.
  3. GM2424066Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .

    Install the strut mounting plate (2).

  4. Install the upper strut mount nut (1).
  5. Tighten the nut (1) to 65 N.m (48 lb ft)  , using the CH-49375  wrench.

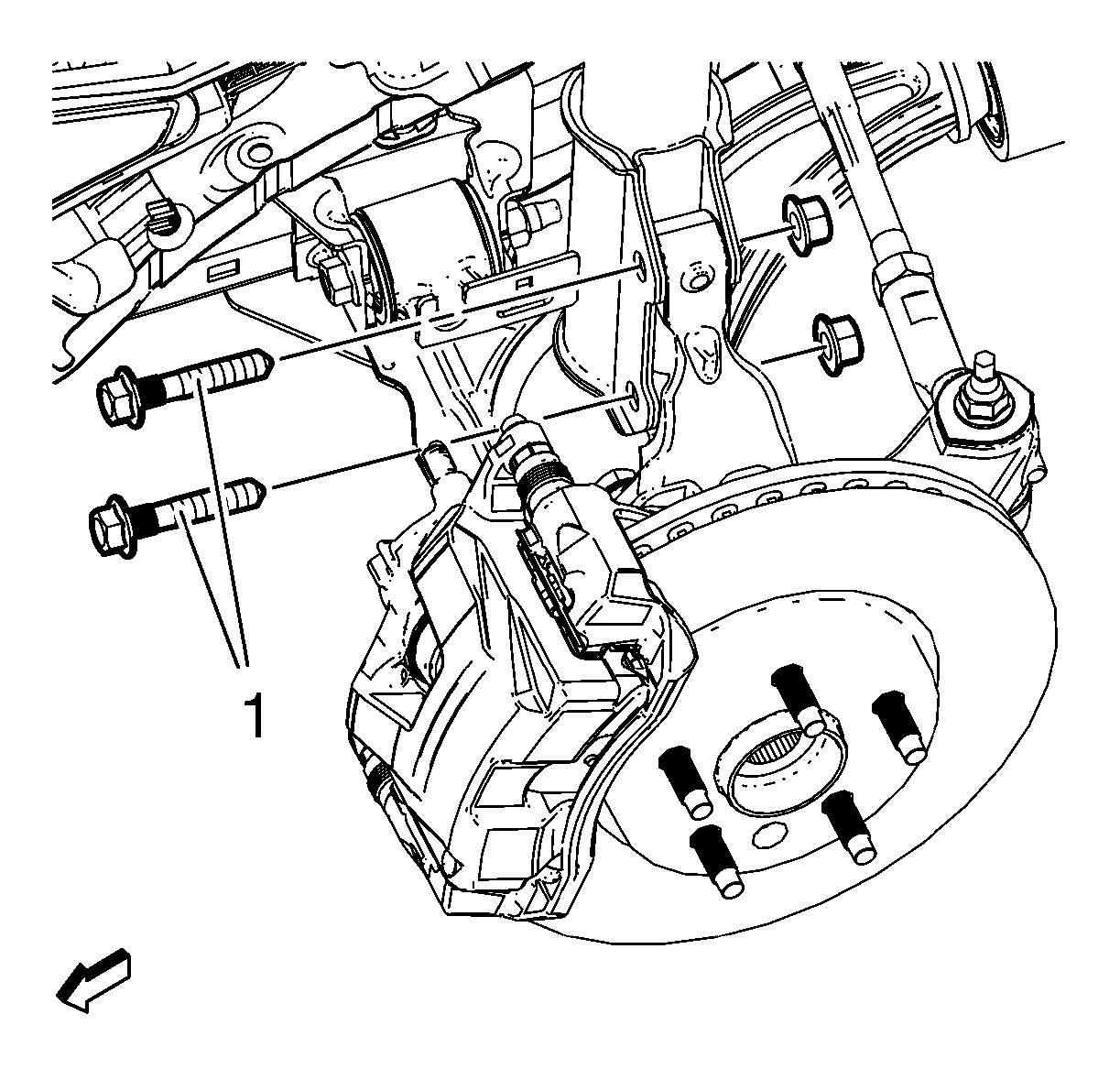

    6. Fig 1: Identifying Steering Knuckle And Bolts
    GM2027760Courtesy of GENERAL MOTORS CORP.
  6. Insert the front strut in the knuckle.
    7. WARNING: Refer to TORQUE-TO-YIELD FASTENER WARNING
  7. Tighten the NEW steering knuckle nuts and bolts (1) a first pass to 90 N.m (66 lb ft)  .
  8. Tighten the NEW steering knuckle nuts and bolts a final pass to an additional 60 - 70 degrees  , using the EN-45059  meter.
    9. Fig 2: View Of Stabilizer Shaft Link Nut
    GM2027766Courtesy of GENERAL MOTORS CORP.
  9. Install the stabilizer shaft link nut (1) and tighten to 65 N.m (48 lb ft)  .

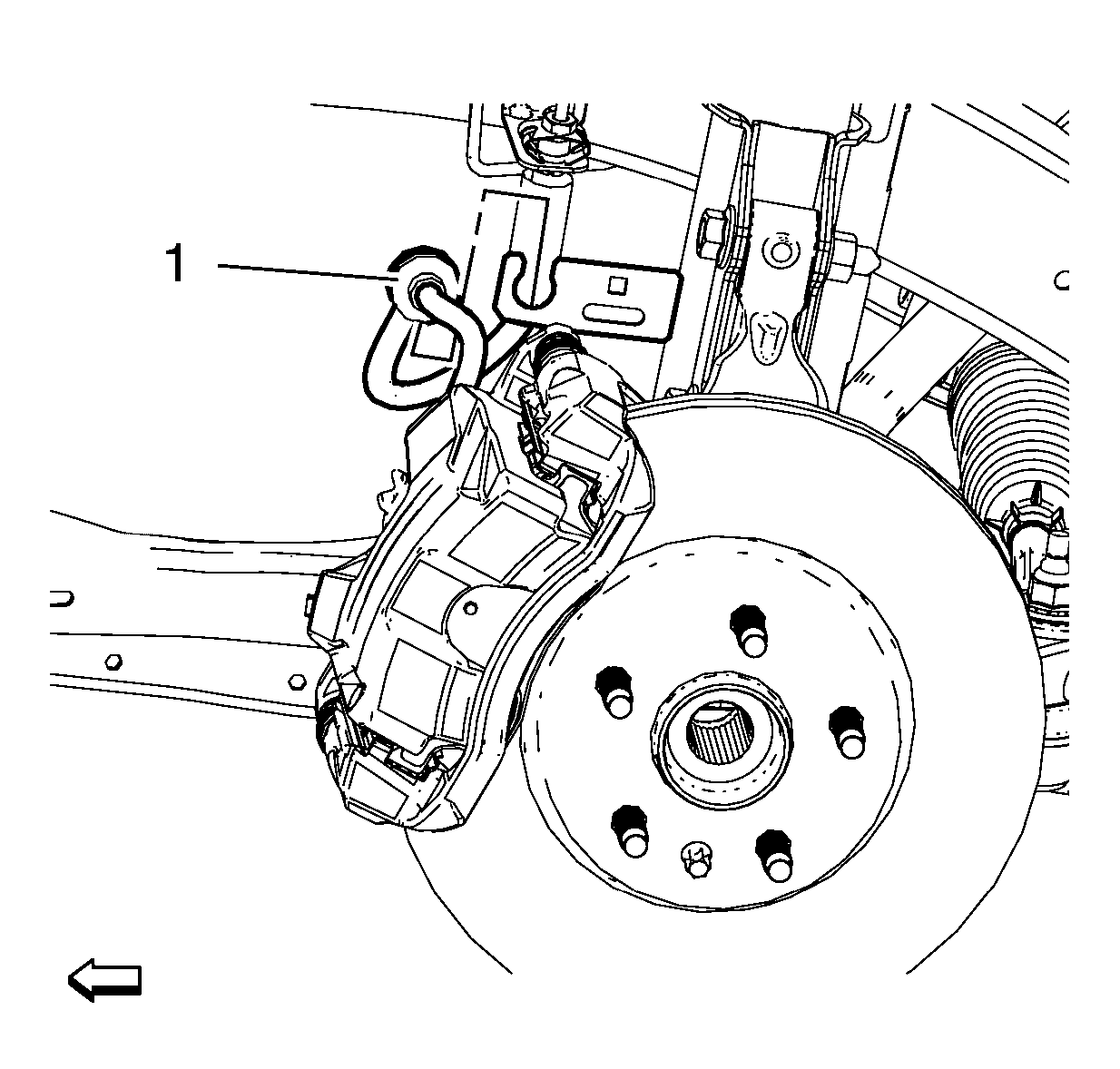

    10. Fig 3: Identifying Brake Hose
    GM2027759Courtesy of GENERAL MOTORS CORP.
  10. Install the brake hose (1) to the strut.
  11. Install the front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  12. Lower the vehicle.
  13. Check the front end alignment specifications. Refer to Wheel Alignment Specifications .
