Installation Procedure

WARNING: This page is about a different car, the 2011 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

Connect the electrical connectors.

Fig 1: Radio Antenna Base

Courtesy of GENERAL MOTORS CORP.

Install the radio antenna base (1).

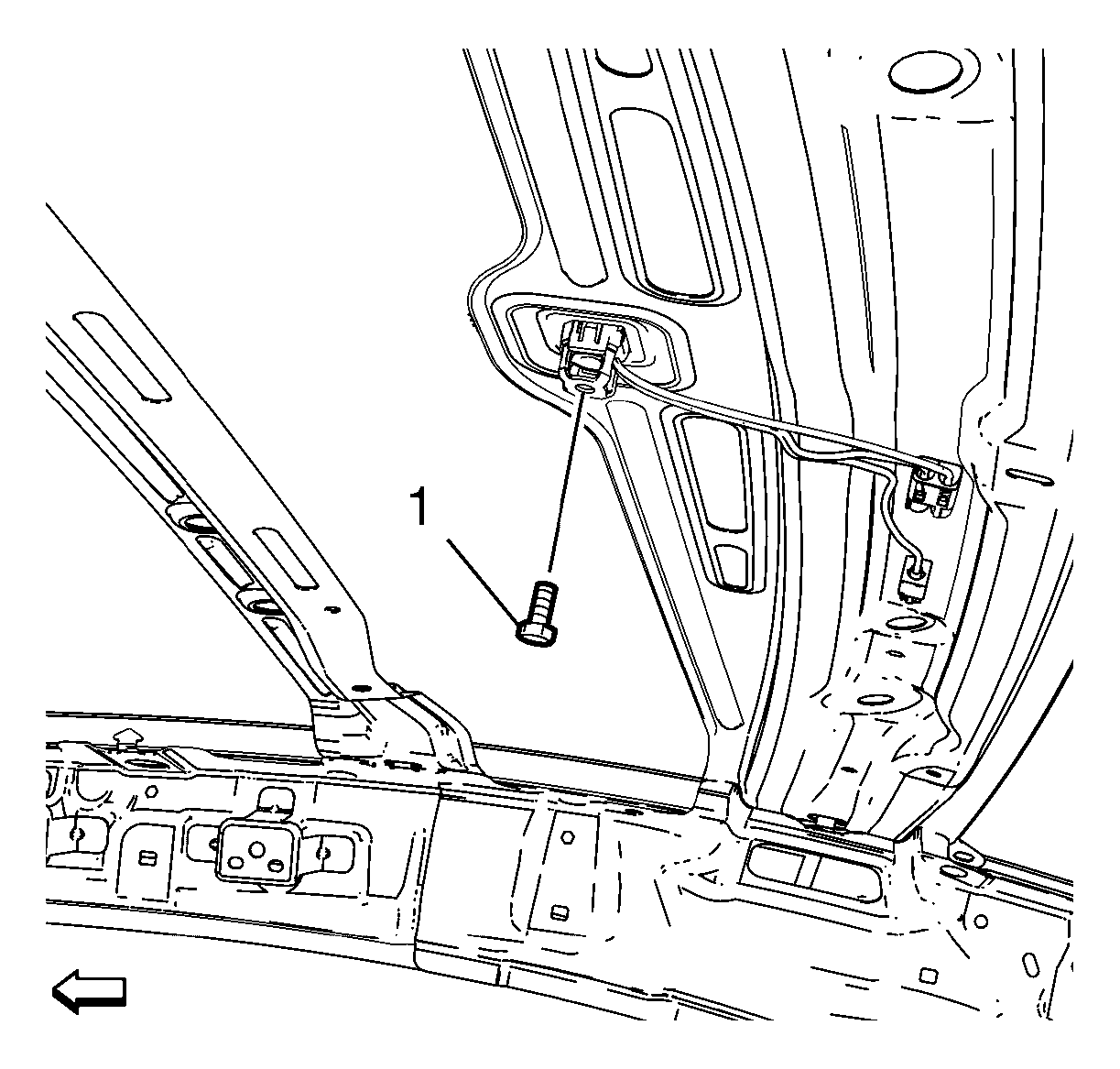

Fig 2: Radio Antenna Base Bolt

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Install the radio antenna base bolt (1) and tighten to 9 N.m(80 lb in).
Install the headlining trim panel. Refer to Headlining Trim Panel Replacement (with Sunroof) or Headlining Trim Panel Replacement (without Sunroof) .
