Radio Replacement

WARNING: This page is about a different car, the 2011 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

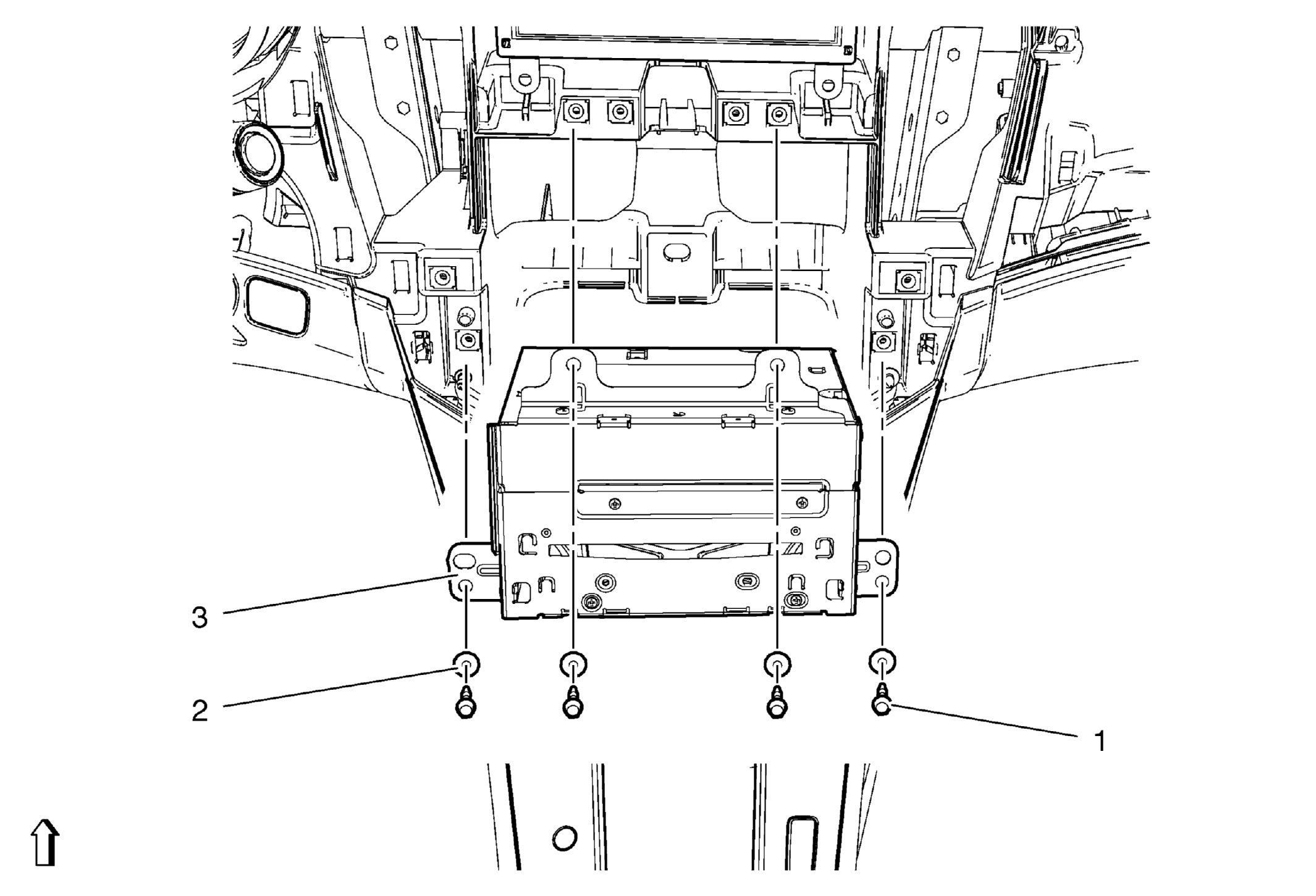

Fig 1: Radio Mounting Hardware
GM2189267Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Remove radio control module. Refer to Radio Control Module Replacement .
1 Radio Bolt (Qty: 4)
CAUTION: Refer to Fastener Caution .
2 Radio Bolt Washer (Qty: 4)
3 Radio

Procedure

  1. Disconnect electrical components.
  2. After replacement, refer to Control Module References for programming and set up information.
