Driver Door Components

Driver Door Components

Component Name Callout
A23D Door Latch Assembly - Driver 1
A9A Outside Rearview Mirror - Driver 2
S52 Outside Rearview Mirror Switch 3
P19AG Speaker - Left Front Door 4
S79D Window Switch - Driver 5
M74D Window Motor - Driver 6

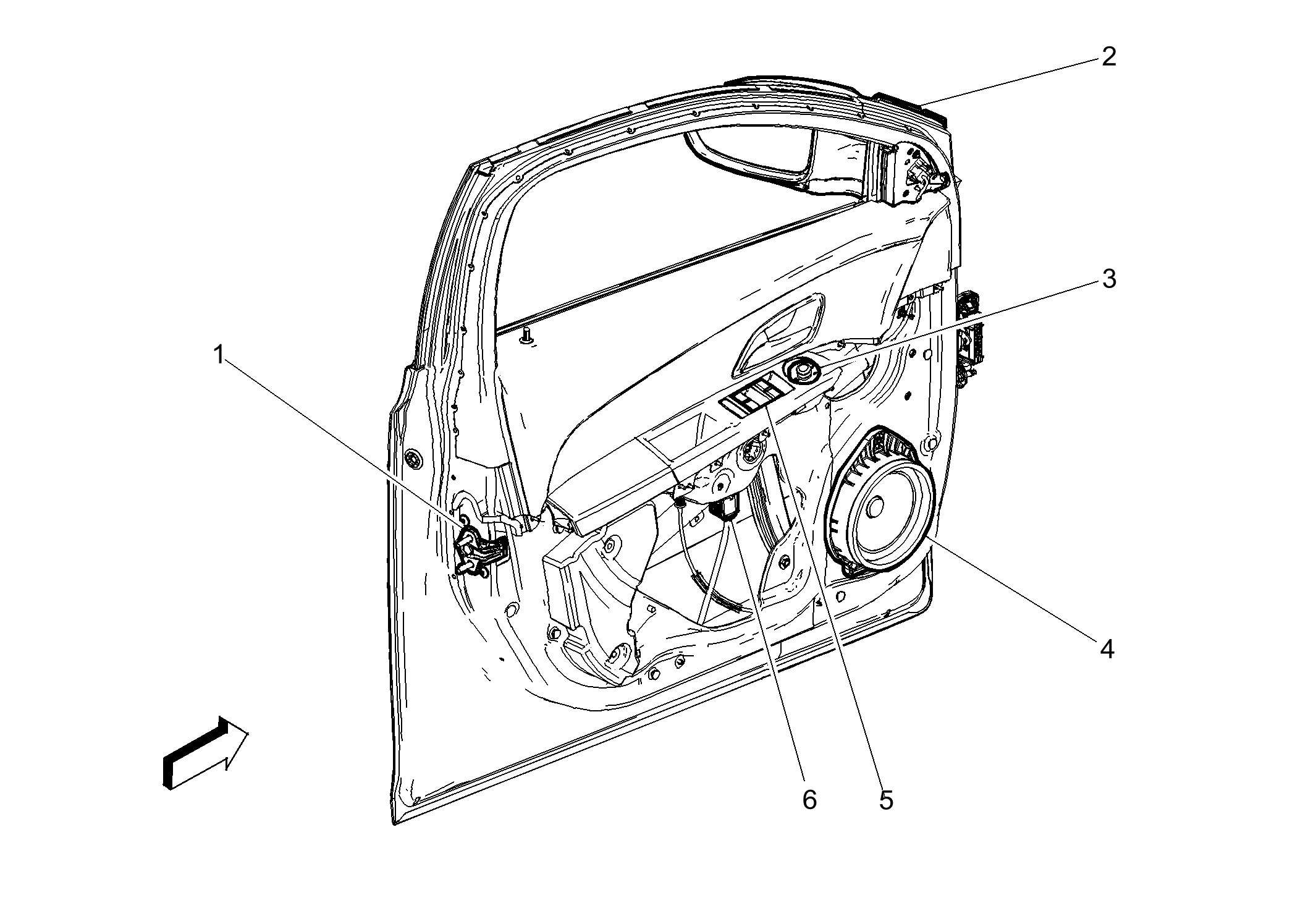

Fig 1: Driver Door Components
GM2543035Courtesy of GENERAL MOTORS COMPANY
