Turn Signal Switch Replacement

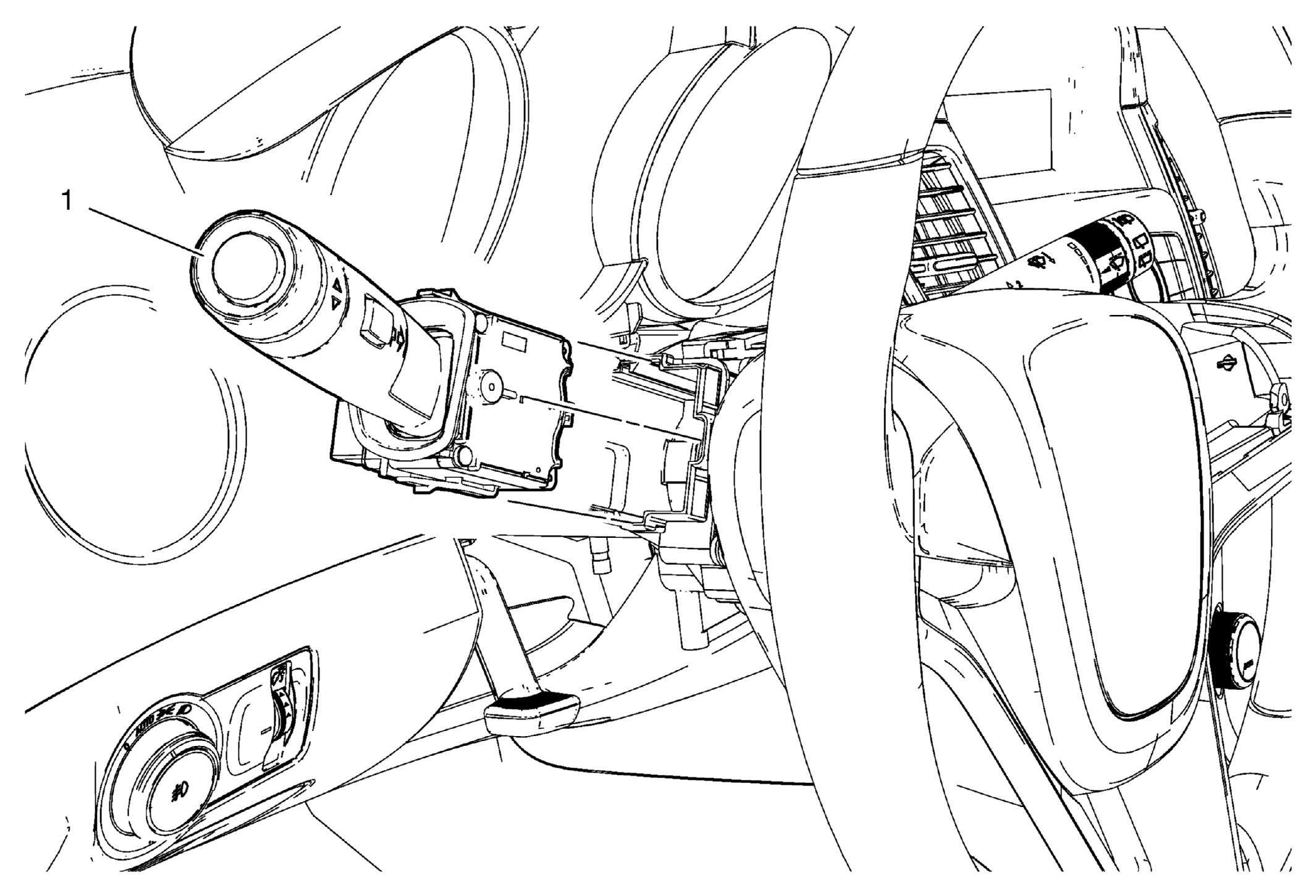

Fig 1: Turn Signal Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the steering column lower trim cover. Refer to Steering Column Lower Trim Cover Replacement .
1	Turn Signal Switch Procedure Disconnect any electrical connectors as needed. Release the plastic retaining tabs to release the turn signal switch from switch bracket.

Callout

Component Name

Preliminary Procedure
Remove the steering column lower trim cover. Refer to Steering Column Lower Trim Cover Replacement .

Turn Signal Switch

Procedure

Disconnect any electrical connectors as needed.
Release the plastic retaining tabs to release the turn signal switch from switch bracket.
