Steering Wheel Secondary/Configurable Control Wiring Schematics: W1Y

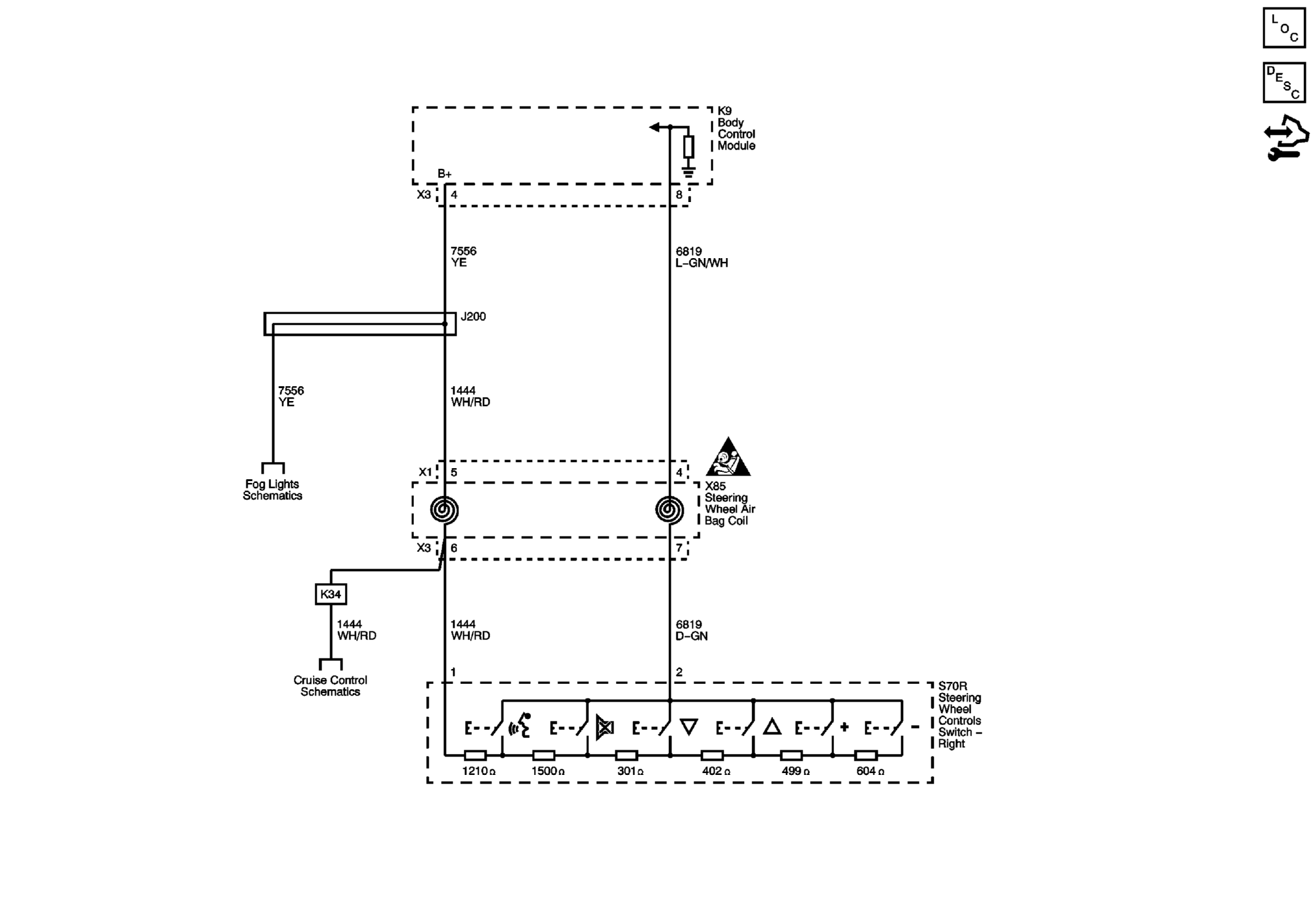

Fig 1: Steering Wheel Secondary/Configurable Control (W1Y) Wiring Schematic
GM2587579Courtesy of GENERAL MOTORS COMPANY
