Turbocharger Wastegate Regulator Solenoid Valve Replacement

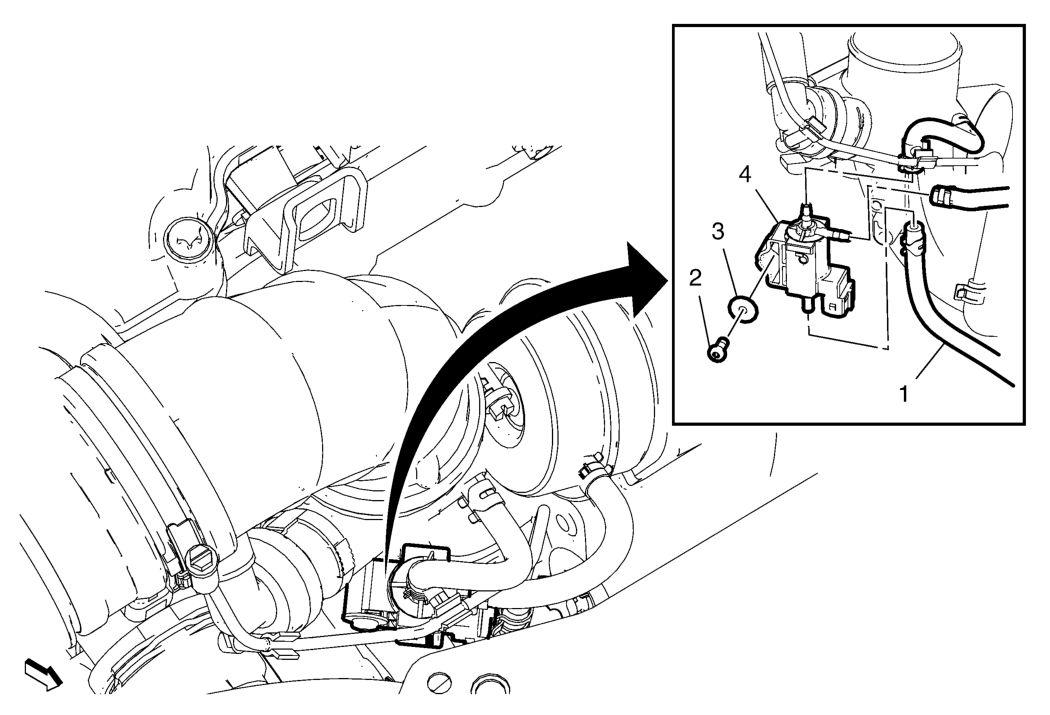

Fig 1: Turbocharger Wastegate Regulator Solenoid Valve
GM2658484Courtesy of GENERAL MOTORS COMPANY
Turbocharger Wastegate Regulator Solenoid Valve Replacement

Callout Component Name
Preliminary Procedure
Disconnect the turbocharger wastegate regulator solenoid valve electrical connector.
1 Turbocharger Wastegate Regulator Solenoid Valve Vacuum Hose (Qty: 3)
2 Turbocharger Wastegate Regulator Solenoid Valve Bolt
3 Turbocharger Wastegate Regulator Solenoid Valve Bolt Washer
4 Turbocharger Wastegate Regulator Solenoid Valve
