Electrical Diagrams

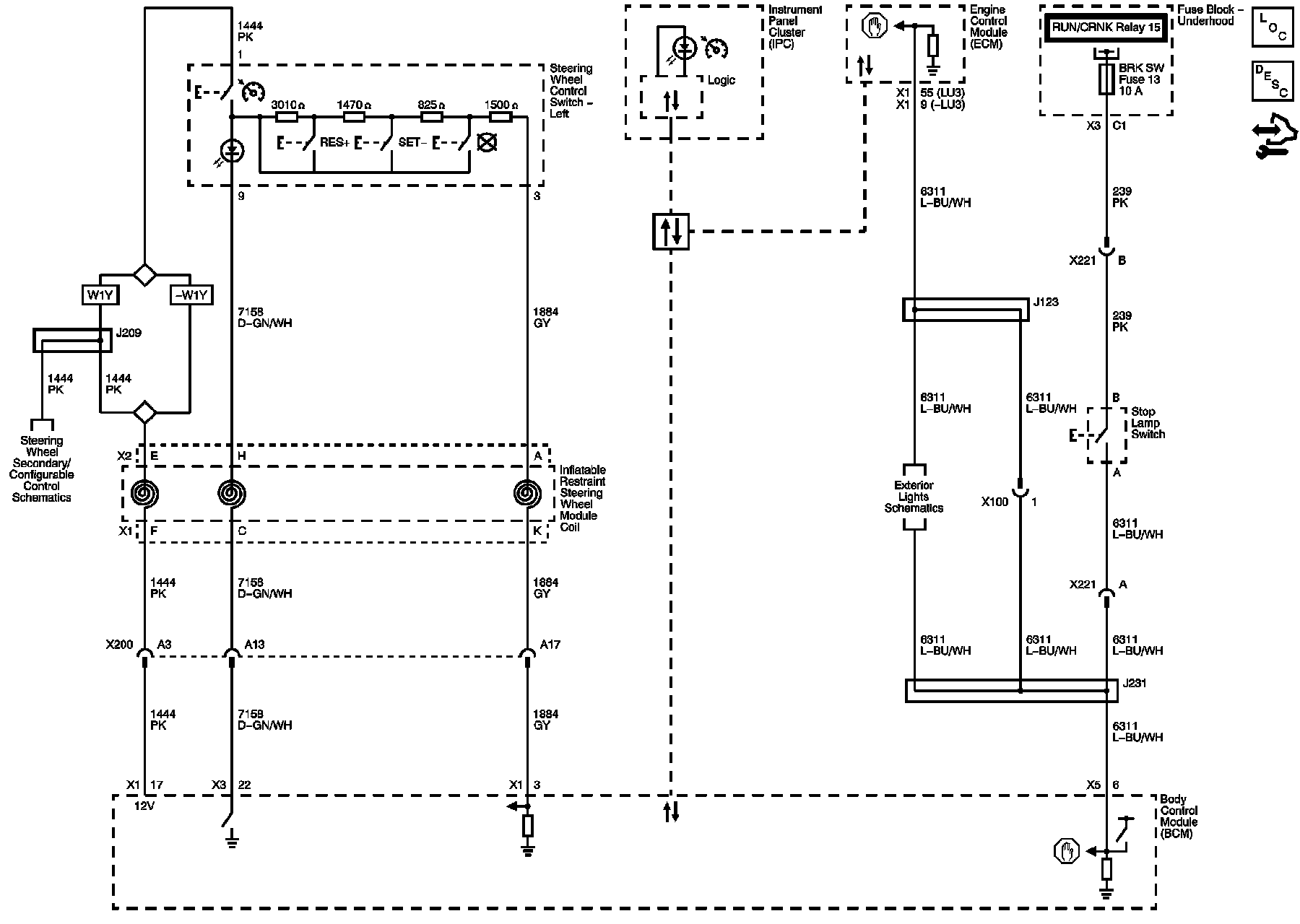

Cruise Control Schematics

K34





Master Electrical Component List
Cruise Control Description and Operation
Control Module References
AIRBAG, BRK SW, ECM IGN/GLOW PLUG MDL IGN, FCSM IGN, IPC, STR/WHL/SNSR, TCM IGN, and TRANS Fuses
Data Communication Schematics
Steering Wheel Secondary/configurable Controls
Stop Lamp Controls and CHMSL
