Electrical Diagrams
Engine Controls Schematics

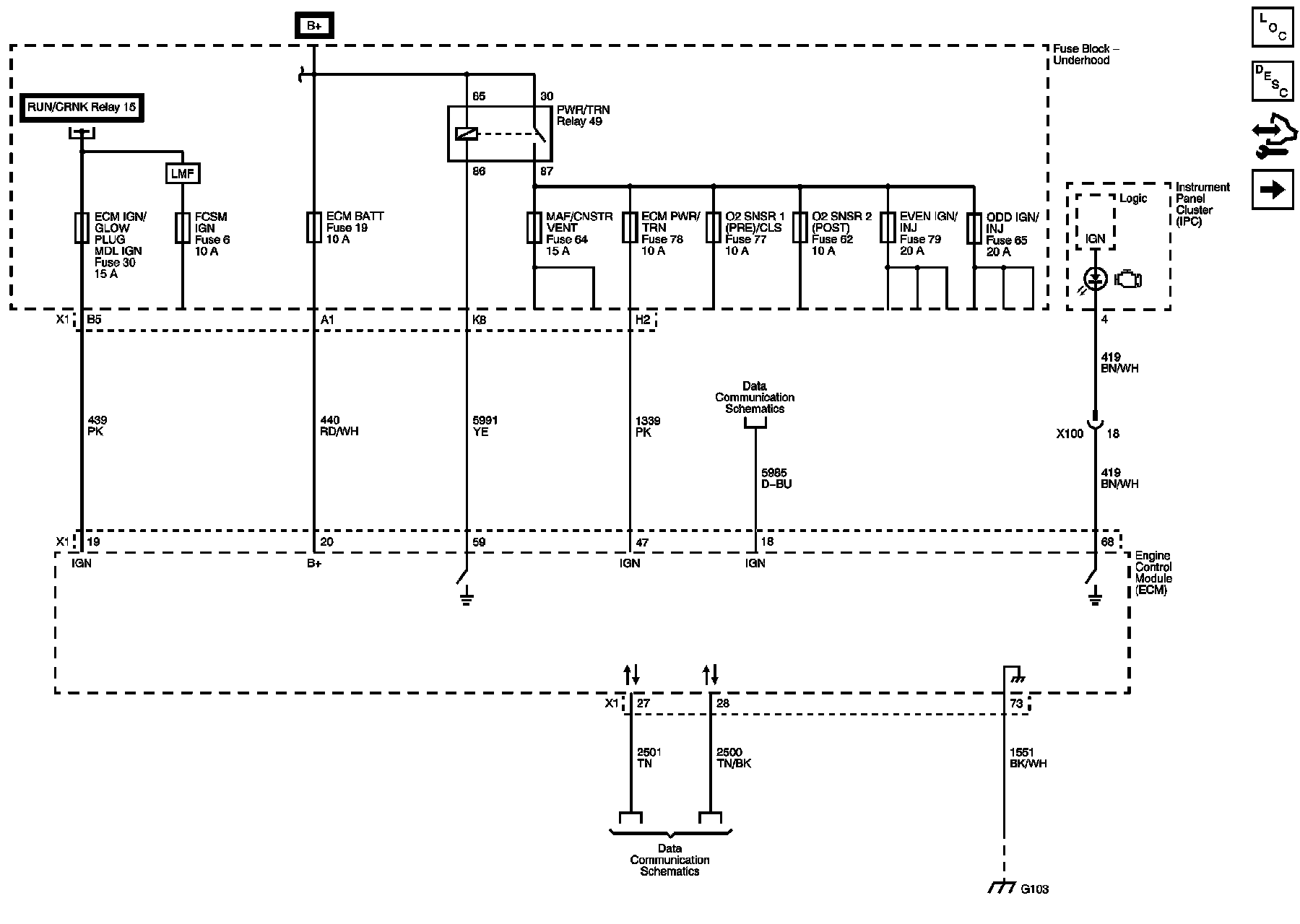

Module Power, Ground, Serial Data and MIL
5V1, 5V2, and Low Reference Bus

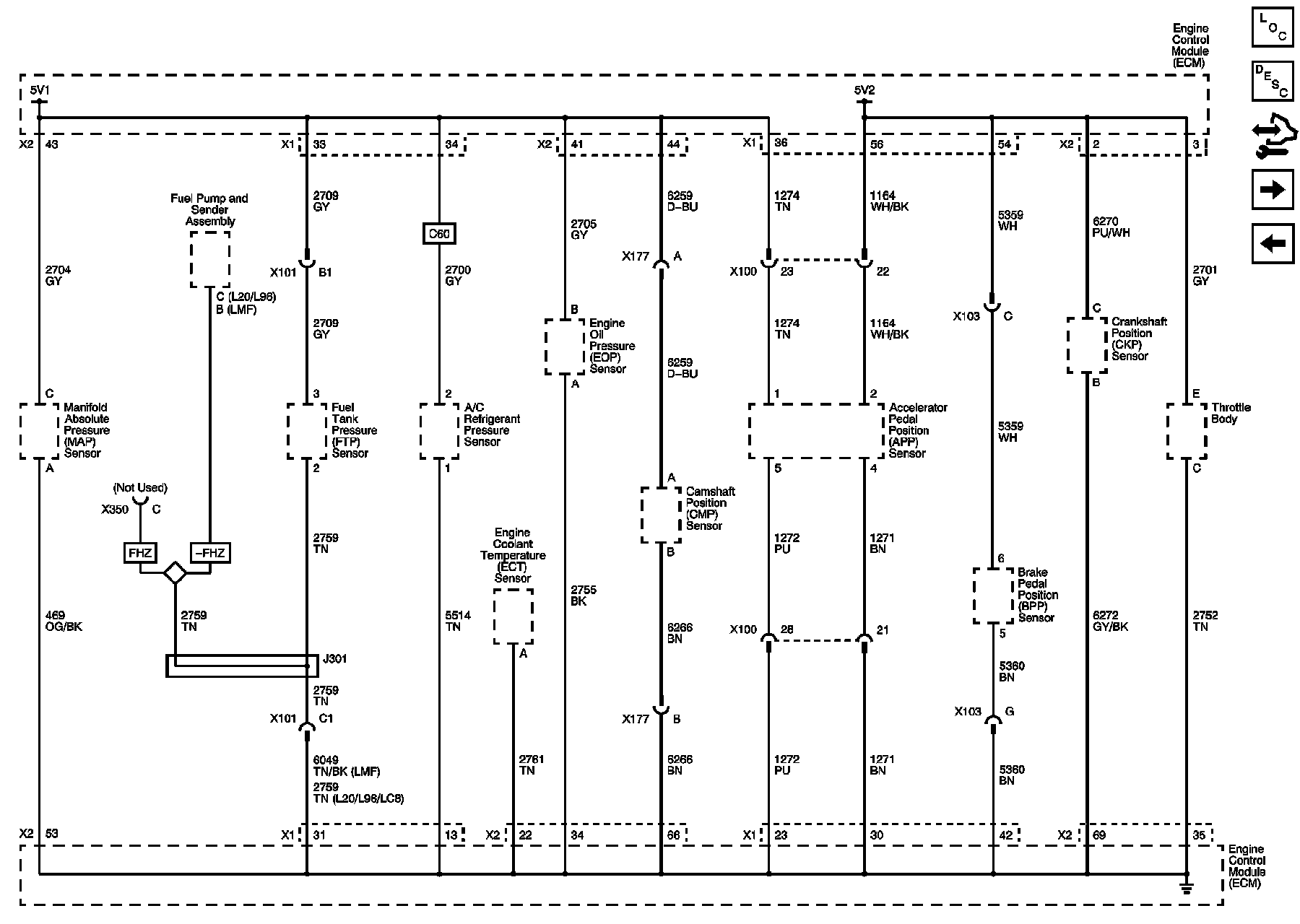

Engine Data Sensors- Pressure and Temperature Controls

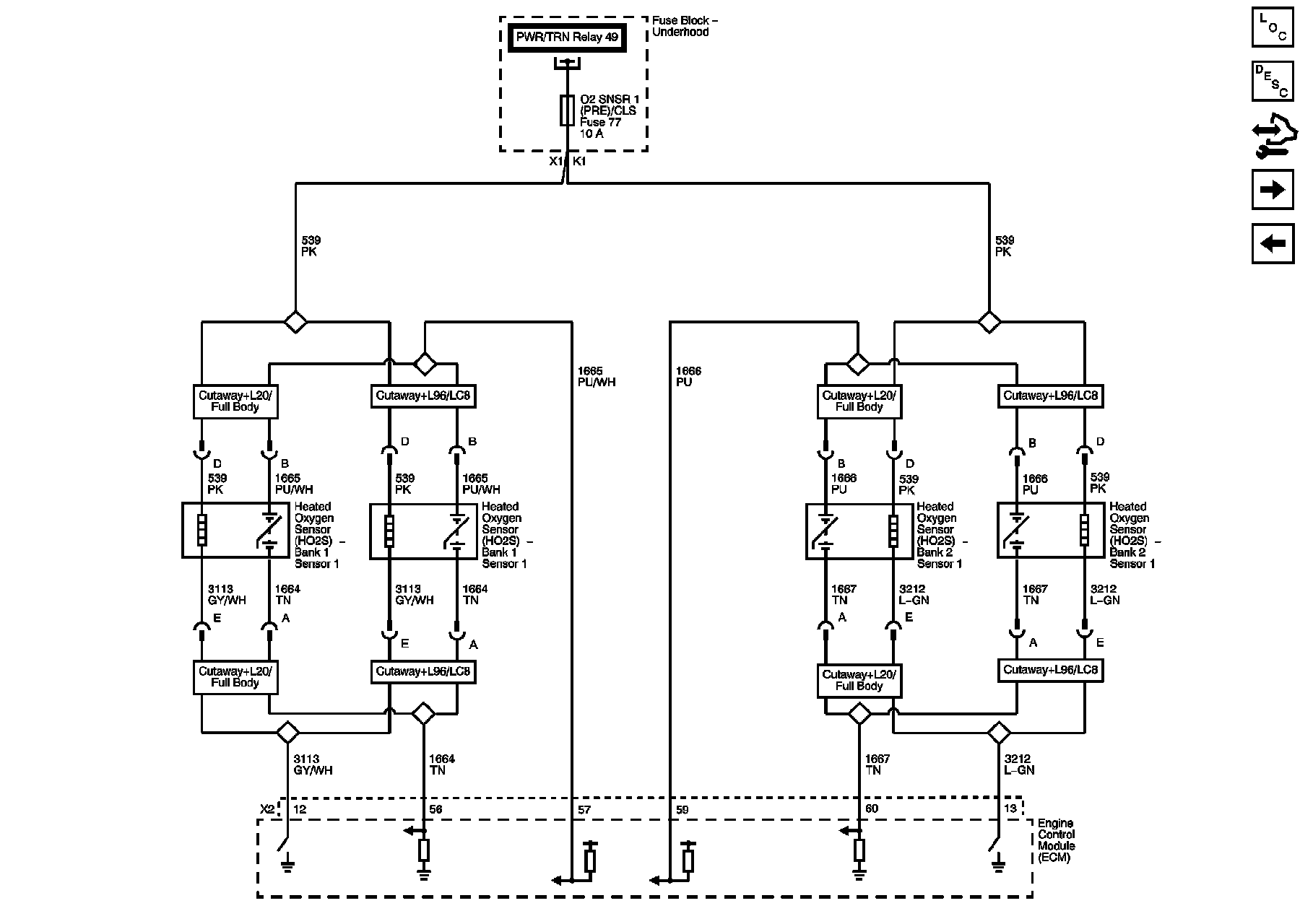

Engine Data Sensors- Heated Oxygen Sensors (1 of 2)

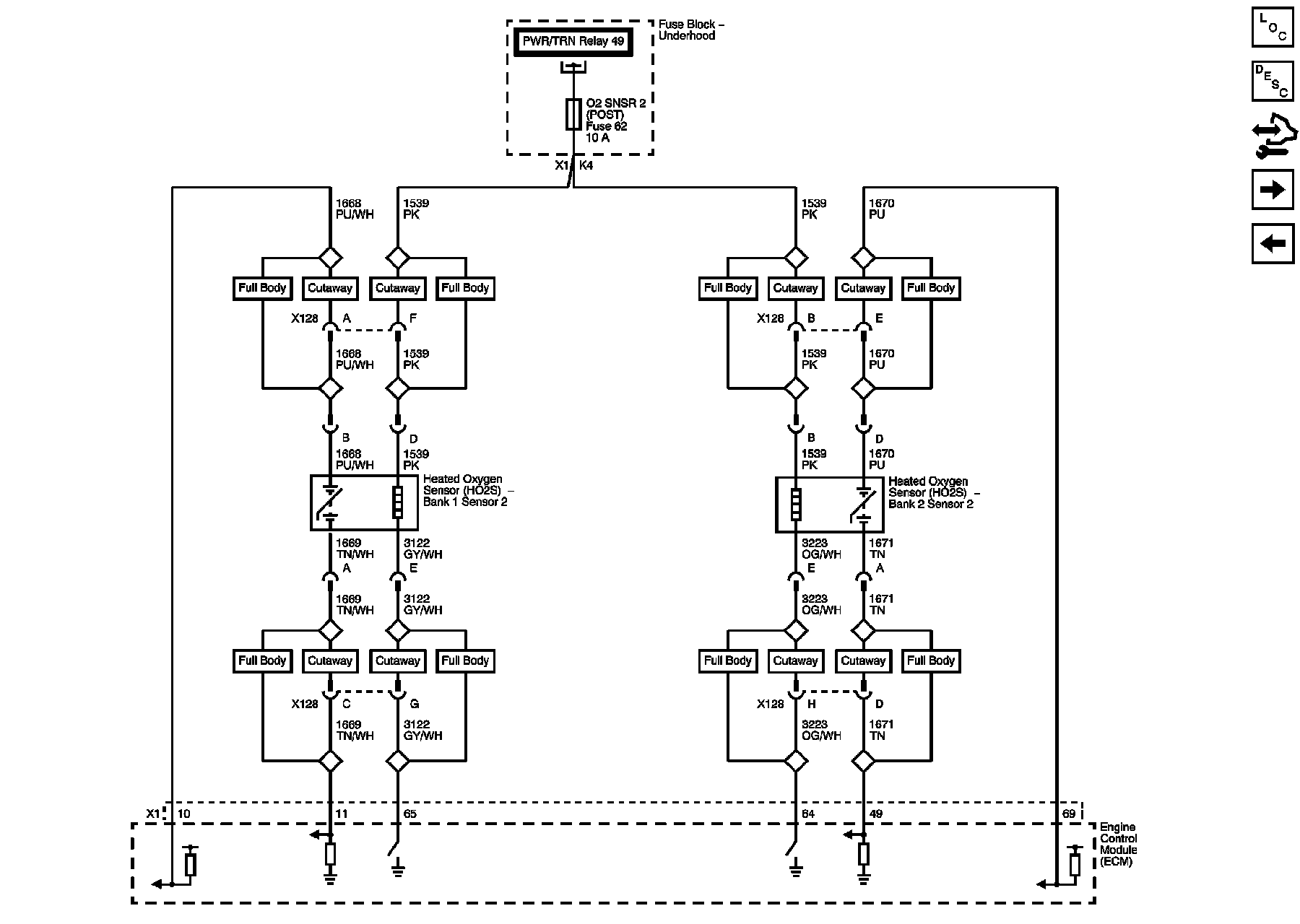

Engine Data Sensors- Heated Oxygen Sensors (2 of 2)
Engine Data Sensors- Throttle Controls
Ignition Controls- Ignition System Coils 1, 3, 5, and 7
Ignition Controls- Ignition System Coils 2, 4, 6, and 8
Ignition Controls- CKP, CMP and Knock Sensors
Fuel Controls- Fuel Pump Controls (LMF)
Fuel Controls- Fuel Pump Controls (L20 or L96)

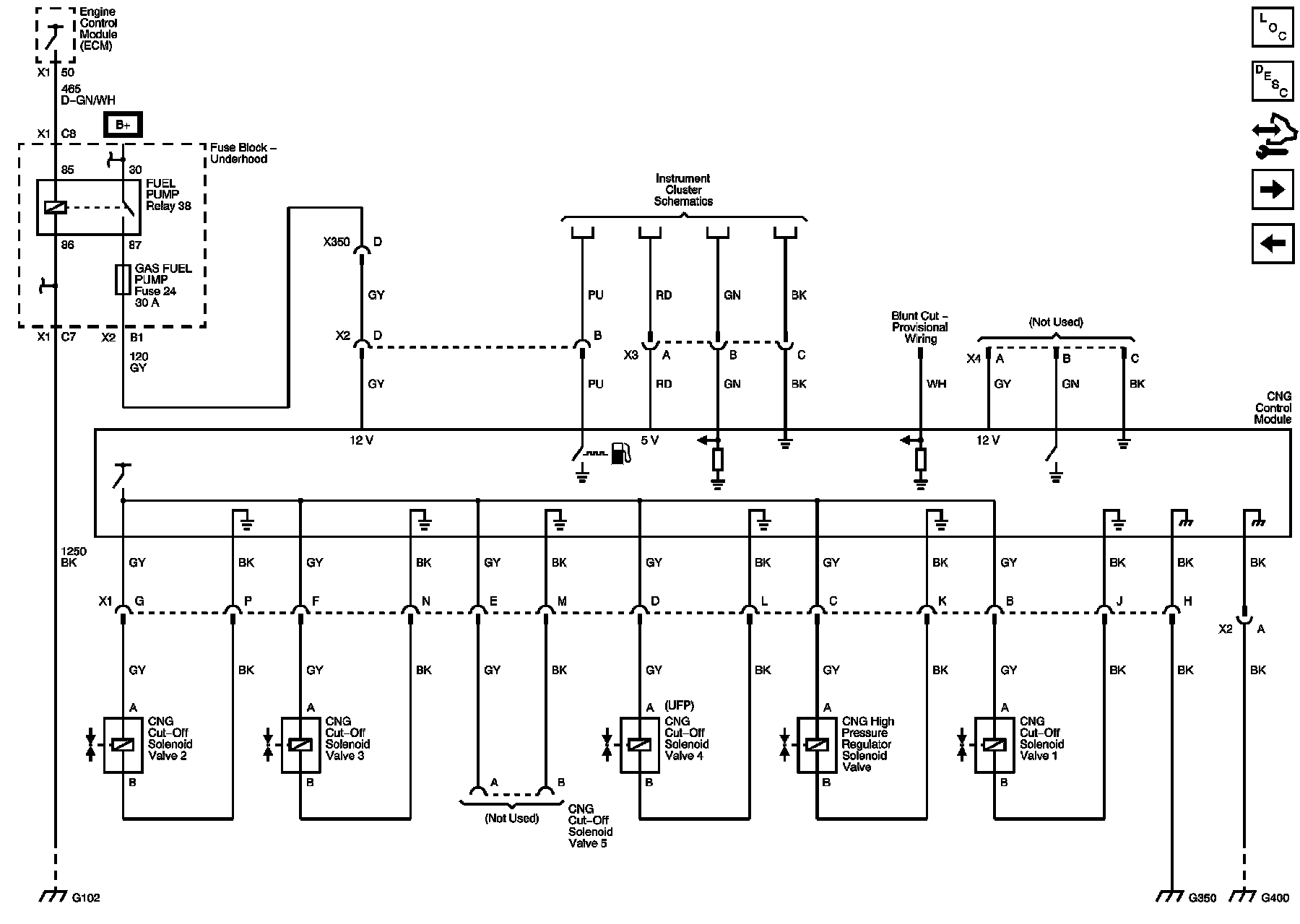

Fuel Controls- Compressed Natural Gas (LC8 with FHZ)

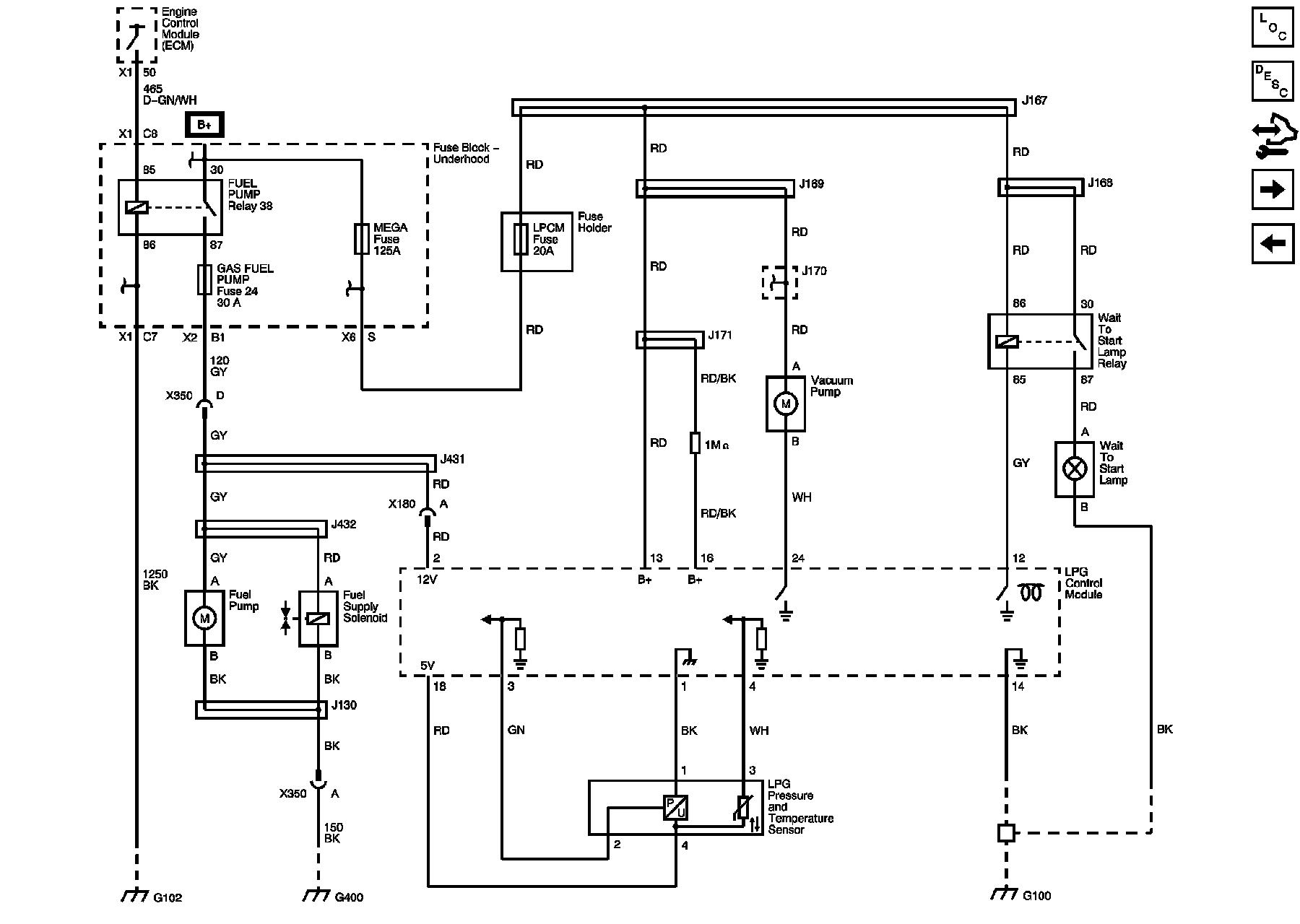

Fuel Controls - LPG Fuel Controls (KO7 with UFM)
Fuel Controls - LPG EVAP System (KO7 with UFM)

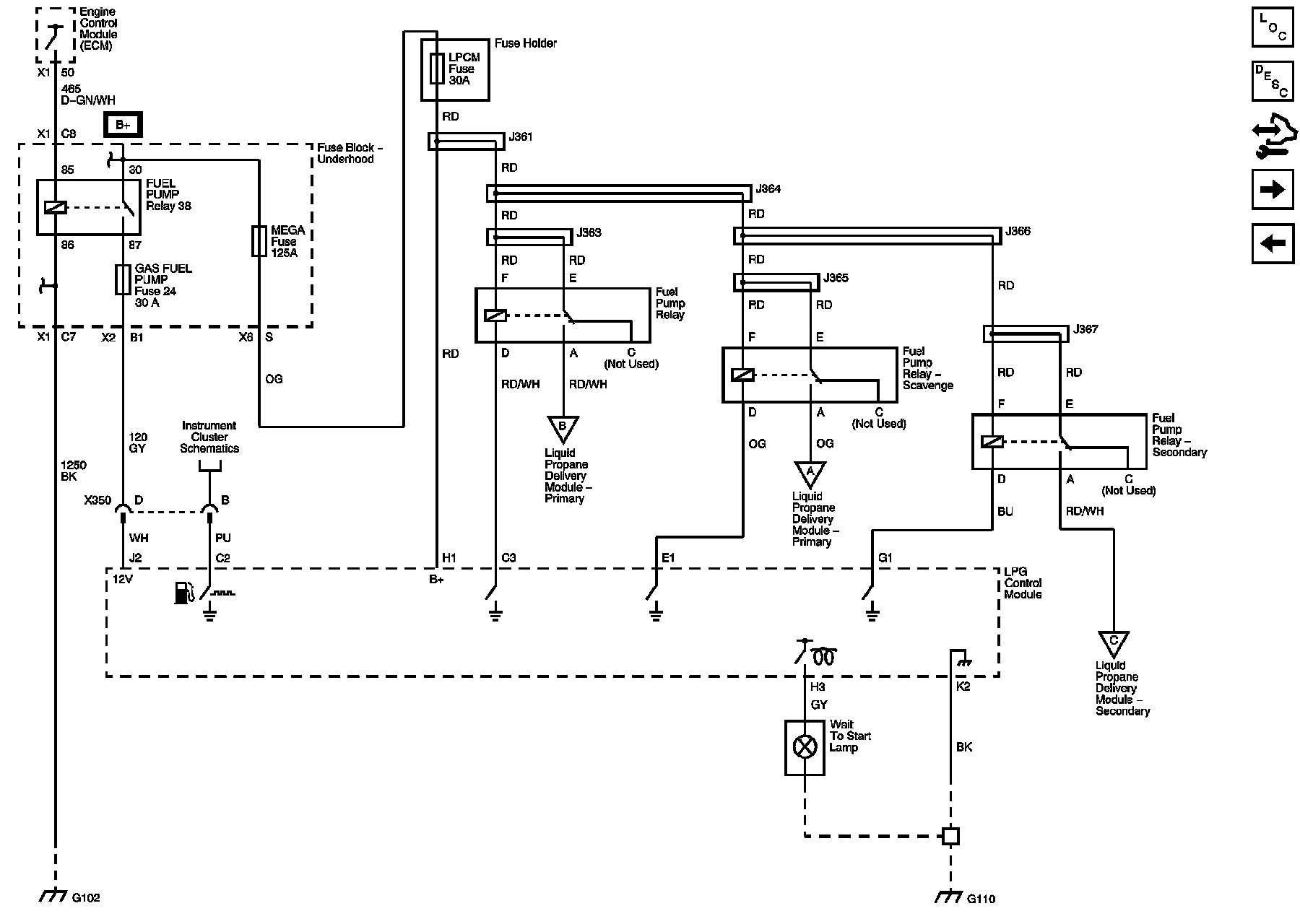

Fuel Controls - Liquified Propane Gas (KO7 with UFP) 1 of 2
Fuel Controls- Liquified Propane Gas (KO7 with UFP) 2 of 2

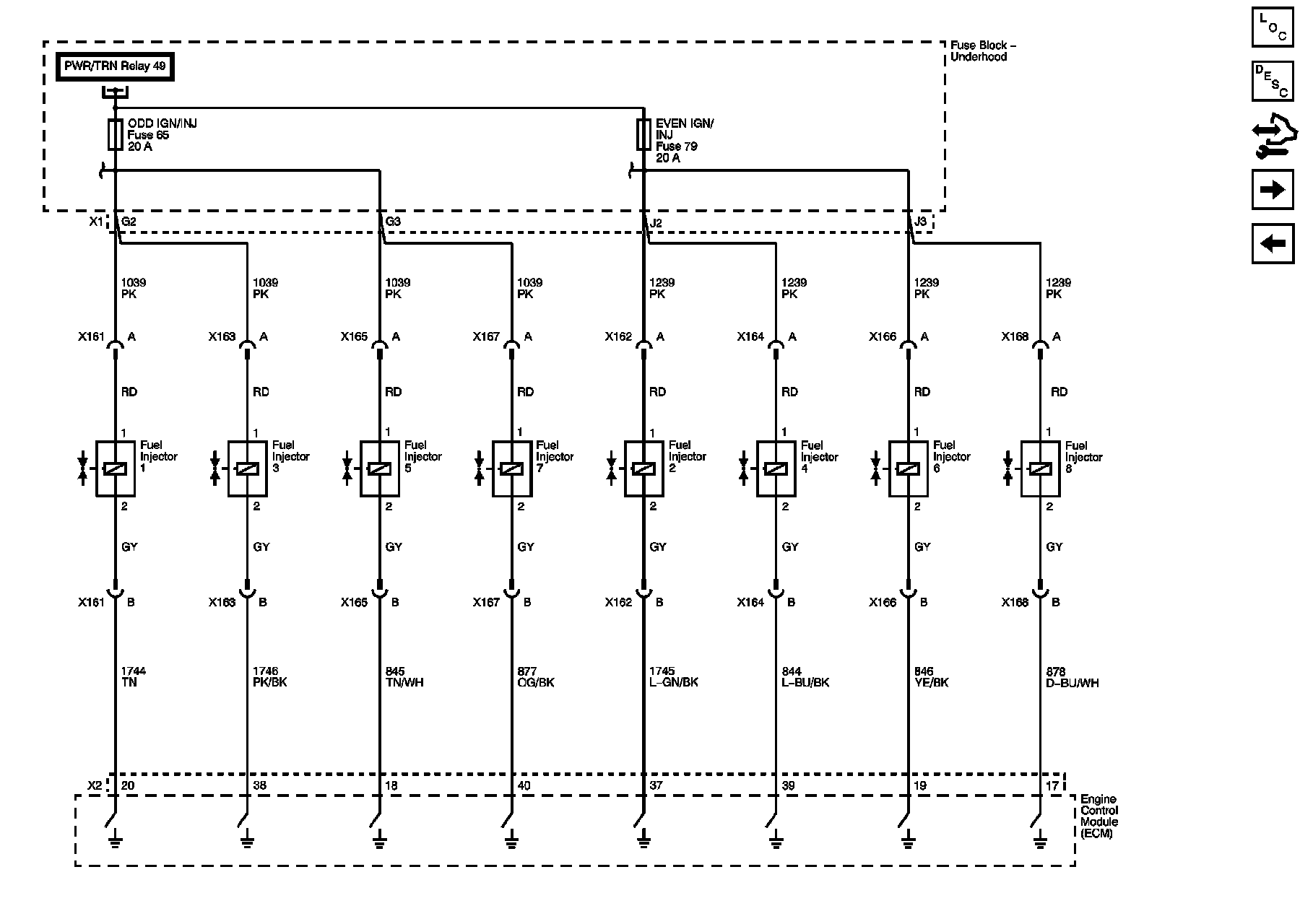

Fuel Controls- Fuel Injectors
Fuel Controls- Fuel Injectors (LC8 with FHZ)
Fuel Controls- EVAP Controls
Controlled/Monitored Subsystem References
