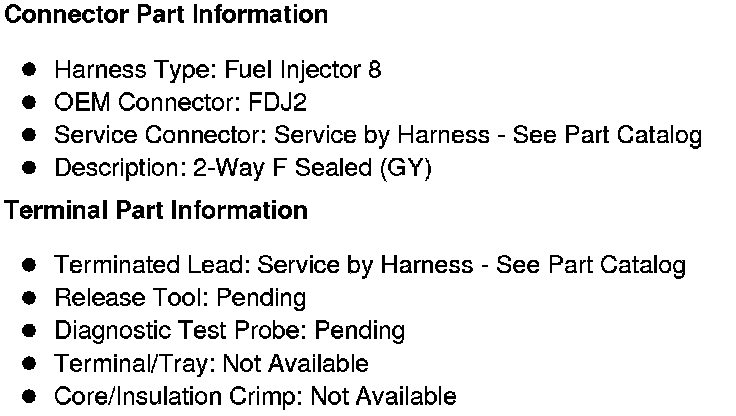

Fuel Injector 8

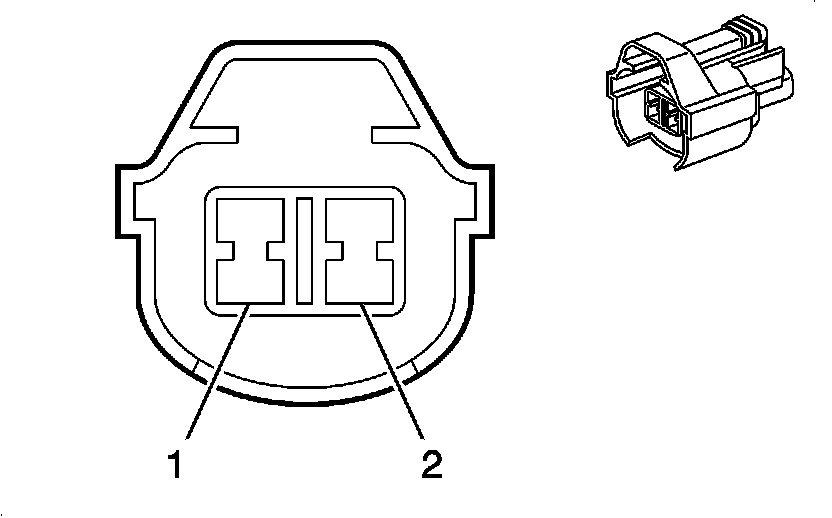

Component Connector End Views

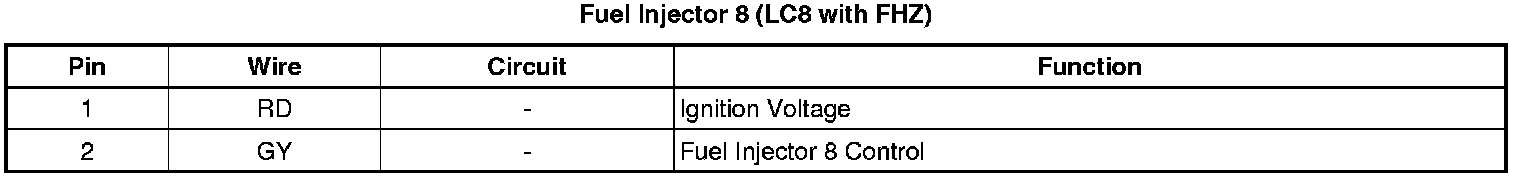

Fuel Injector 8 (LC8 with FHZ)
















Component Connector End Views

Fuel Injector 8 (LMF, L20, or L96)
