Right Side of the Engine

Powertrain Component Views

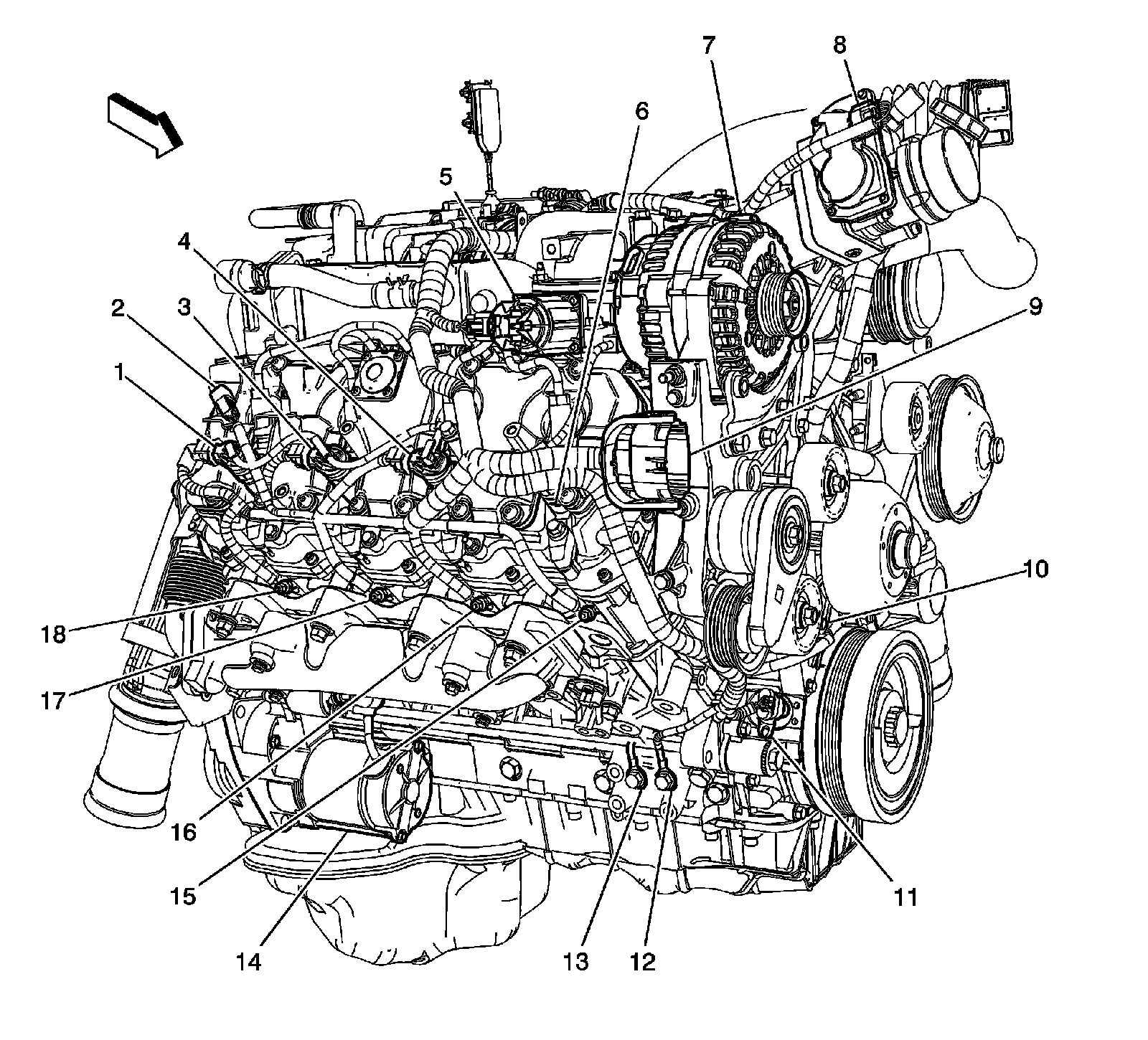

Right Side of the Engine (LMM)





1 - Fuel Injector 7

2 - X112

3 - Fuel Injector 5

4 - Fuel Injector 3

5 - Exhaust Gas Recirculation (EGR) Valve

6 - Fuel Injector 1

7 - Generator

8 - Intake Air Valve

9 - X108

10 - Camshaft Position (CMP) Sensor

11 - Crankshaft Position (CKP) Sensor

12 - G108

13 - G104

14 - Starter Motor

15 - Glow Plug 1

16 - Glow Plug 3

17 - Glow Plug 5

18 - Glow Plug 7
