Top of the Engine Components




Powertrain Component Views

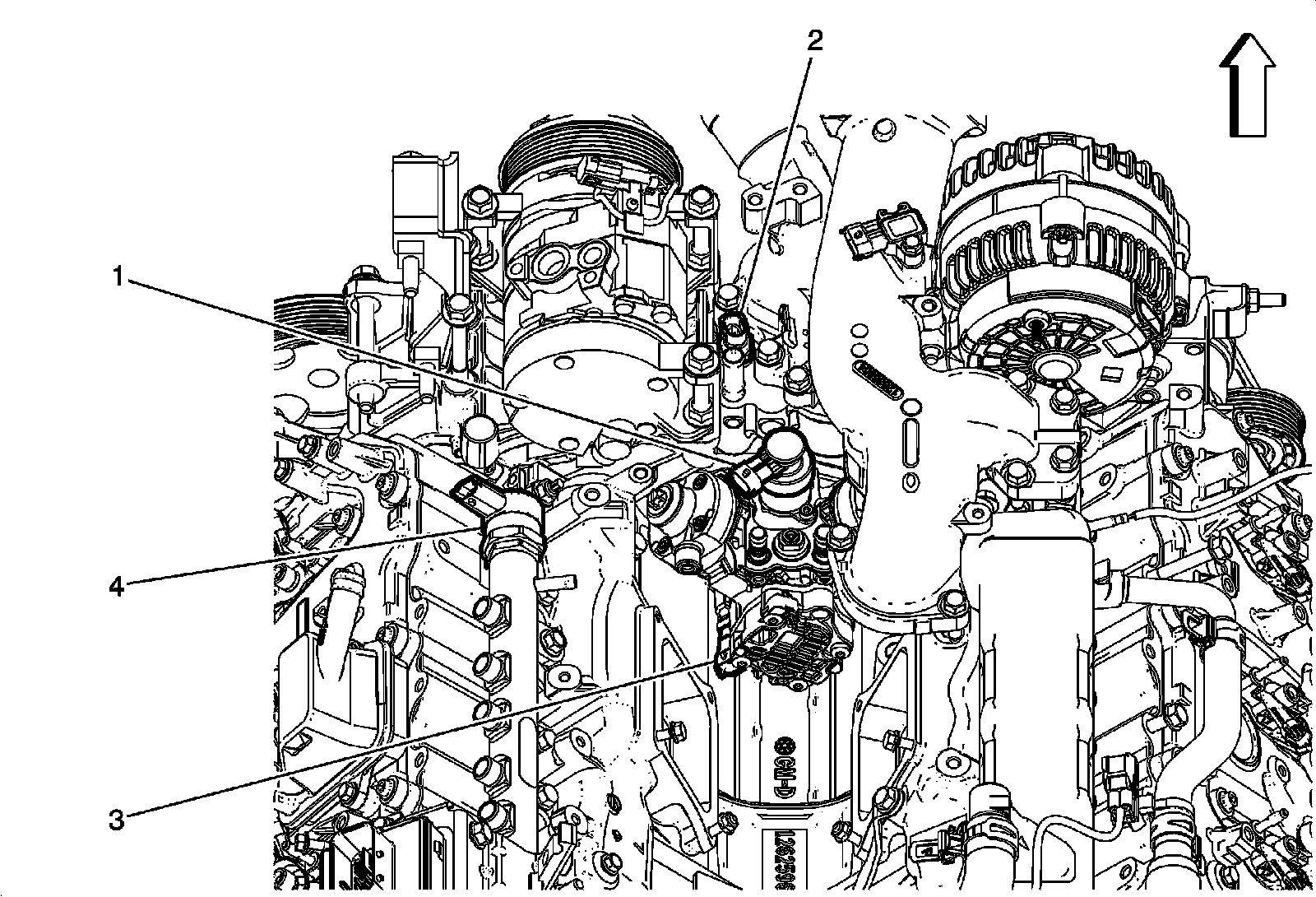

Top of the Engine Components (LGH)





1 - Fuel Pressure Regulator 1

2 - Engine Coolant Temperature (ECT) Sensor

3 - Fuel Temperature Sensor 1

4 - Fuel Pressure Regulator 2
