Fuse Block- I/P

Passenger Compartment/Roof Component Views

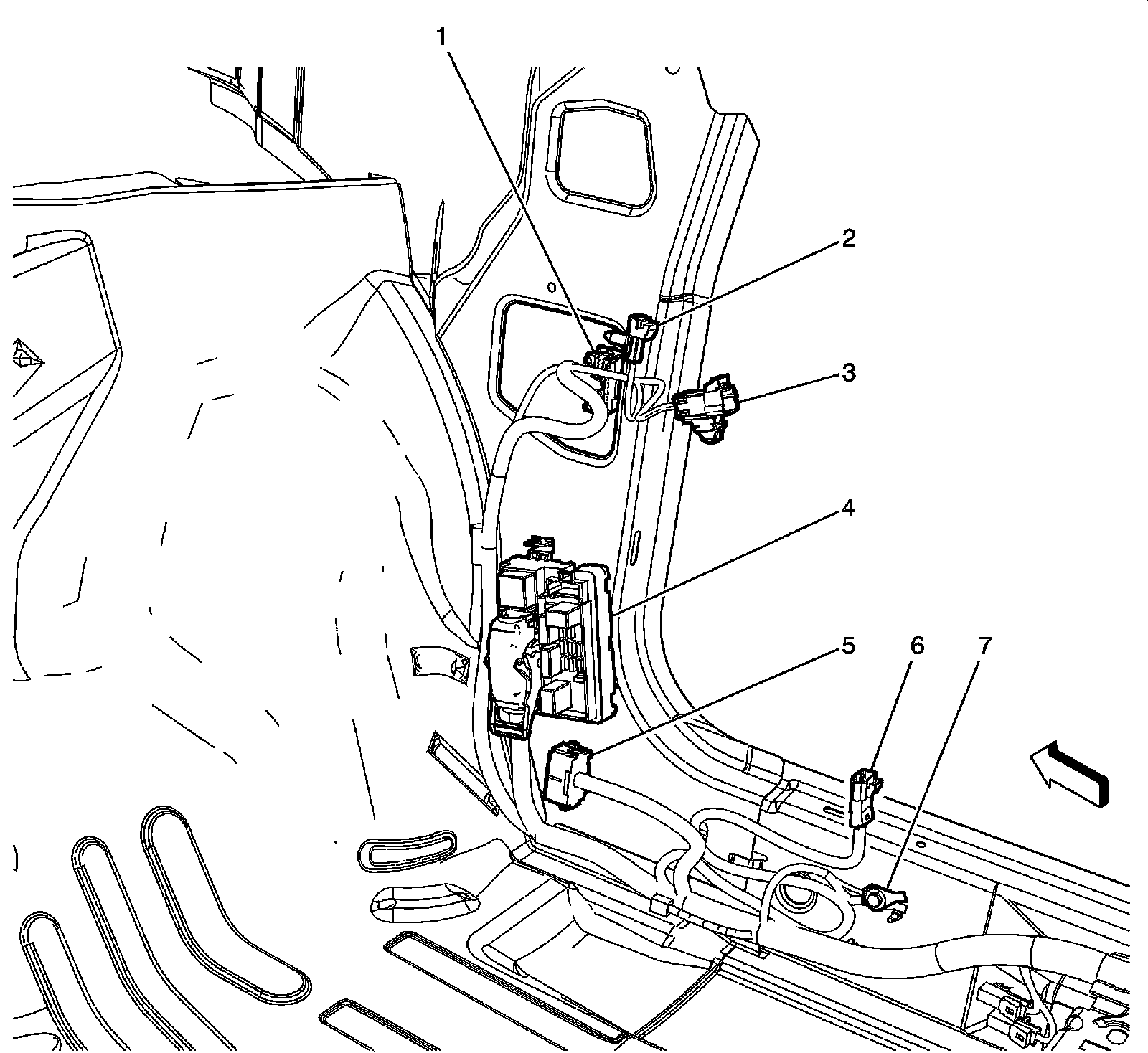

Right Front of the Passenger Compartment Components





1 - X600

2 - Speaker- Right Front Tweeter Connector (UQ3)

3 - X278

4 - Fuse Block- I/P

5 - X200

6 - X303

7 - G302
