Fuse Block- Underhood

Front of Vehicle/Engine Compartment Component Views

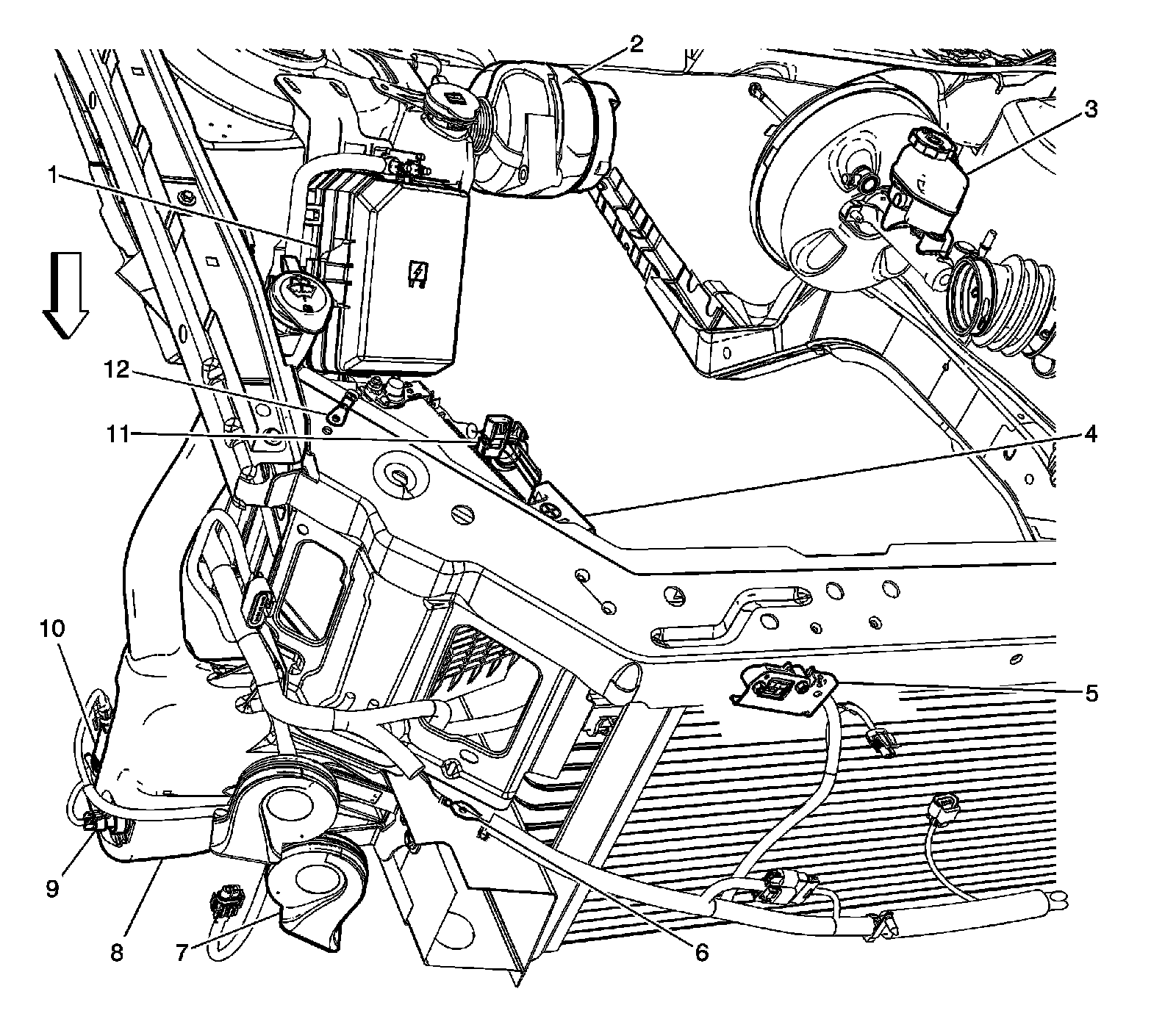

Right Front of the Engine Compartment Components (1 of 2)





1 - Fuse Block- Underhood

2 - Generator

3 - Brake Fluid Reservoir

4 - Battery

5 - Inflatable Restraint Front End Sensor- Right

6 - G100

7 - Horn Assembly

8 - Windshield Washer Fluid Container

9 - Windshield Washer Fluid Level Switch

10 - Windshield Washer Fluid Pump

11 - Battery Current Sensor

12 - G102
