Fuse Block- Instrument Panel

Instrument Panel/Center Console Component Views

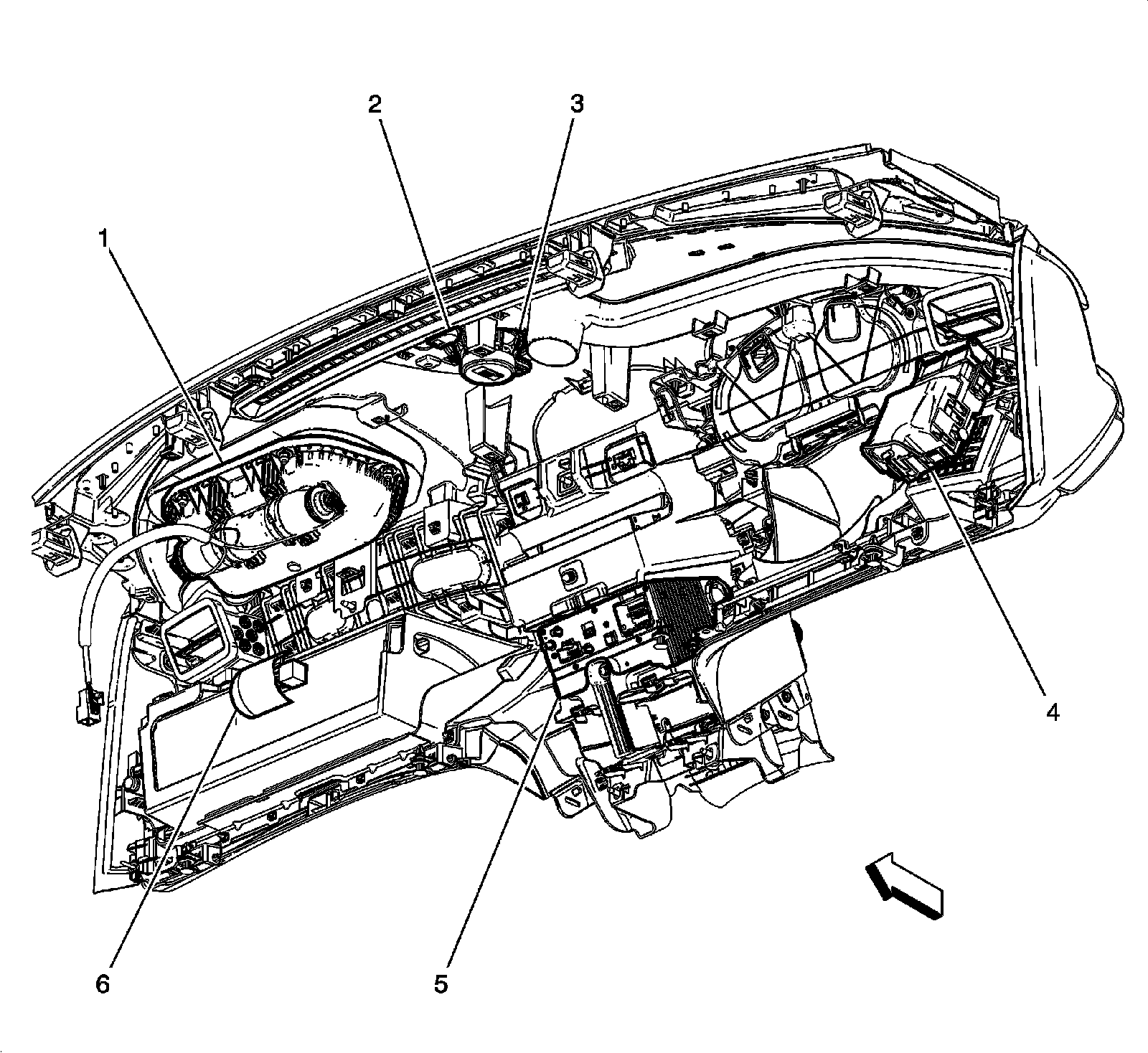

Rear of Instument Panel Components





1 - F101 Passenger Instrument Panel Air Bag (AK5, AJ7 or AY0)

2 - B10B Ambient Light/Sunload Sensor

3 - P19B Speaker- Center Instrument Panel (U63)

4 - X51A Fuse Block- Instrument Panel

5 - A11 Radio

6 - E27 Instrument Panel Compartment Lamp
