Steering Control Module: Locations

Wheels/Vehicle Underbody Component Views

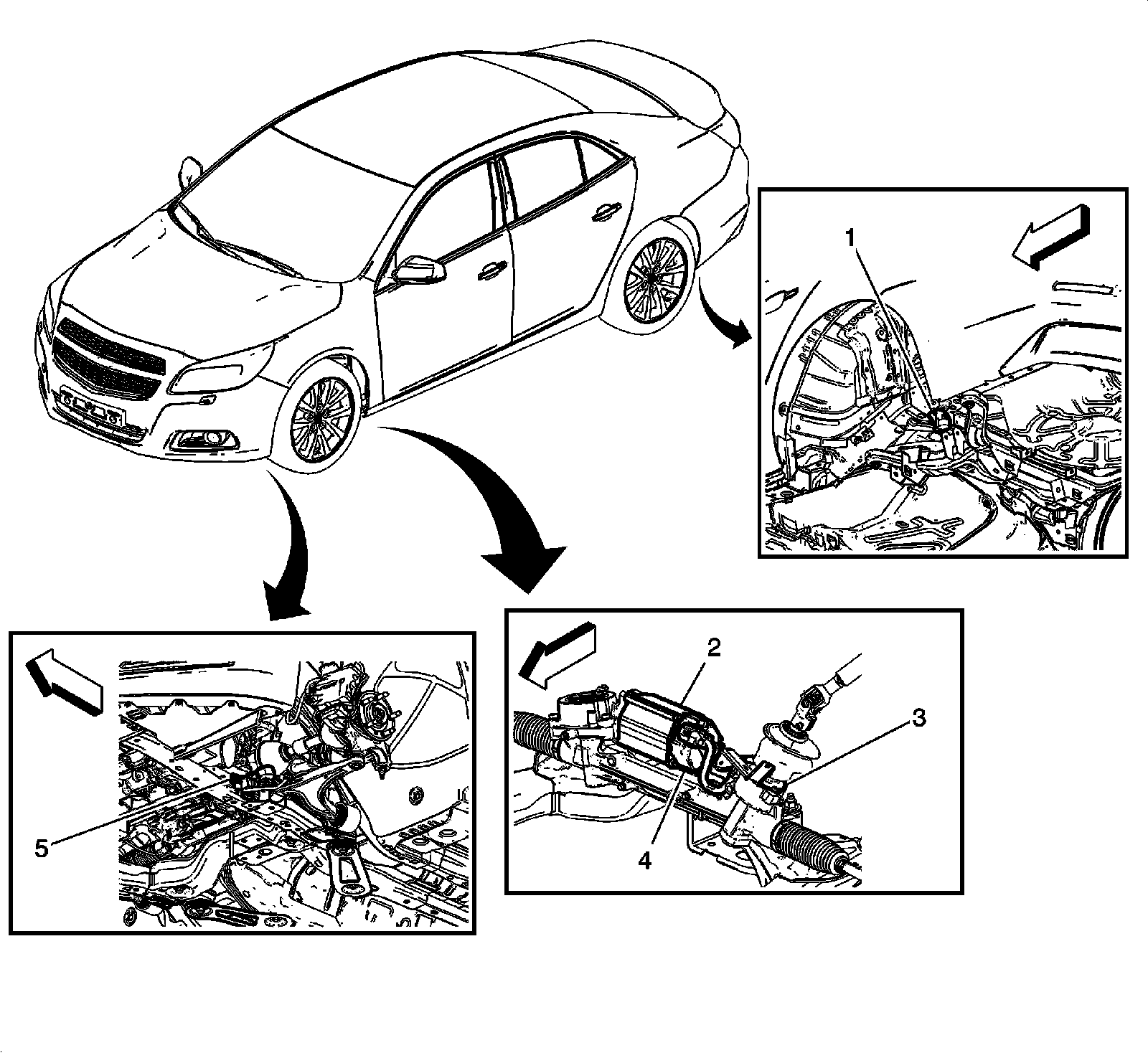

Suspension Height Sensors (TR7) and Electric Power Steering Components (NJ1)





1 - B51R Suspension Height Sensor - Rear (TR7)

2 - M38 Power Steering Motor (NJ1)

3 - B137 Power Steering Shaft Torque Sensor (NJ1)

4 - K43 Power Steering Control Module (NJ1)

5 - B51F Suspension Height Sensor - Front (TR7)
