Secondary Timing Chain Guide Replacement - Left Side




Secondary Timing Chain Guide Replacement - Left Side

Removal Procedure

1. Remove the engine front cover. Refer to Engine Front Cover Replacement Service and Repair.

2. Remove the left bank secondary camshaft drive chain tensioner. Refer to Secondary Timing Chain Tensioner Removal - Left Side 26. Secondary Timing Chain Tensioner Removal - Left Side.

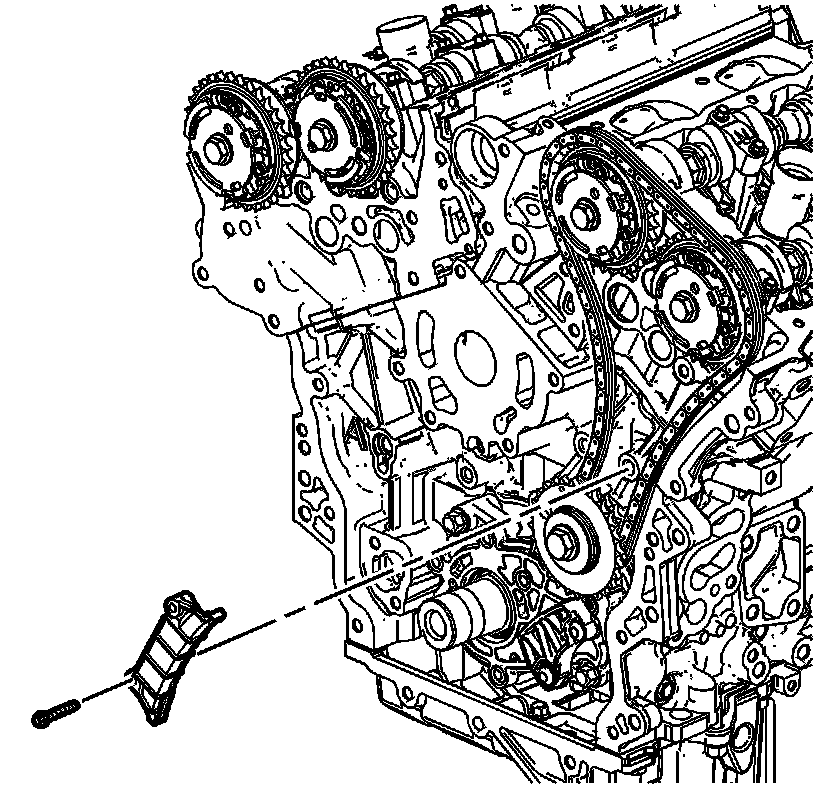

3. Remove the left bank secondary camshaft drive chain guide.

Installation Procedure





1. Install the left bank secondary camshaft drive chain guide. Refer to Secondary Timing Chain Guide Installation - Left Side 110. Secondary Timing Chain Guide Installation - Left Side

2. Install the left bank secondary camshaft drive chain tensioner. Refer to Secondary Timing Chain Tensioner Installation - Left Side 112. Secondary Timing Chain Tensioner Installation - Left Side.

3. Install the engine front cover. Refer to Engine Front Cover Replacement Service and Repair.
