Right Front of the Engine Compartment Components

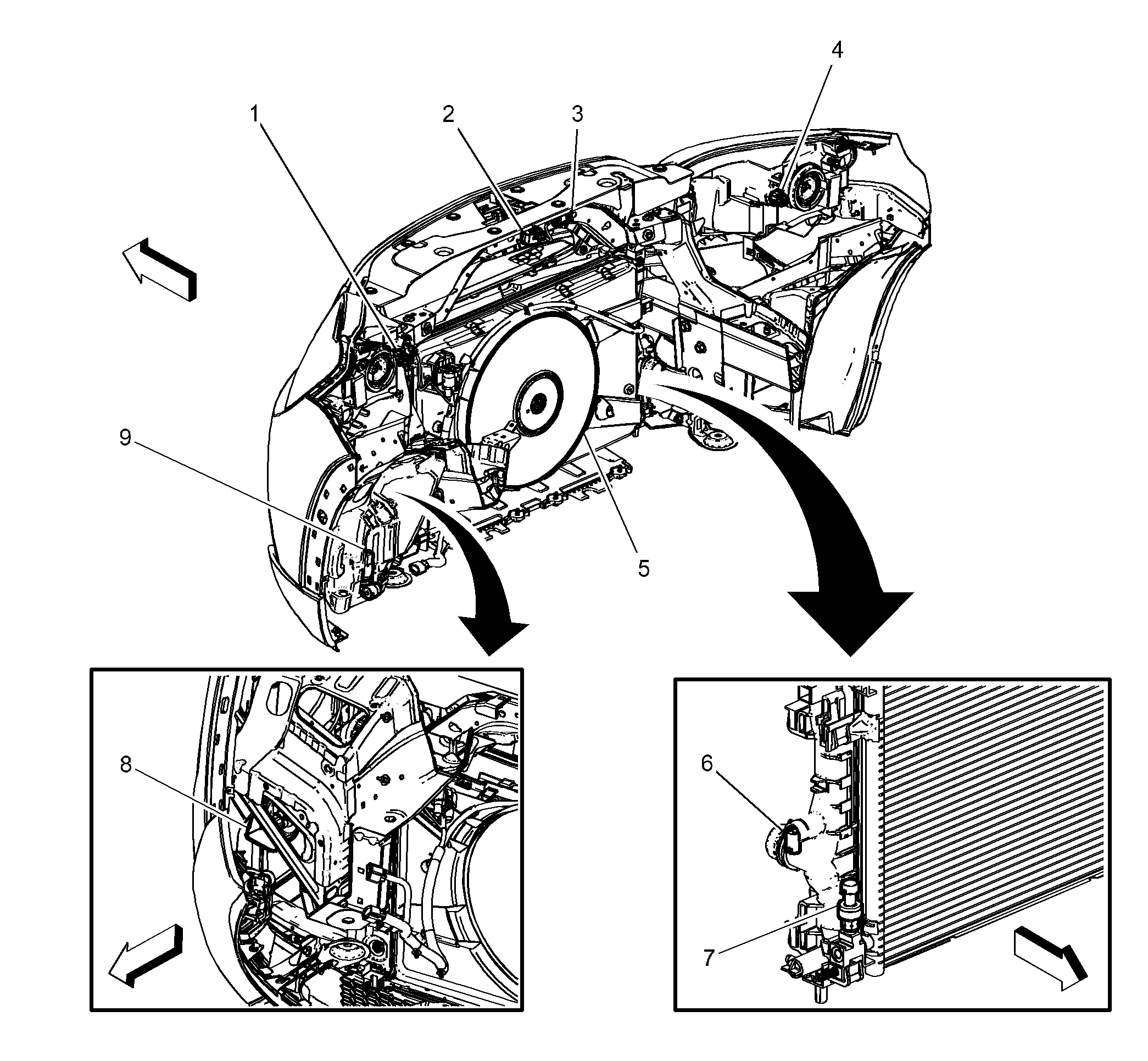

Fig 1: Right Front of Engine Compartment Components
GM2505222Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 M29L Headlamp Leveling Actuator - Left
2 B59 Front Impact Sensor
3 B55 Hood Ajar Switch
4 M29R Headlamp Leveling Actuator - Right
5 B34 Engine Coolant Temperature Sensor
6 B1 A/C Refrigerant Pressure Sensor
7 G10 Cooling Fan Motor
8 G24 Windshield Washer Pump
9 P12 Horn
