Lifting and Jacking the Vehicle: Notes

NOTE:

This vehicle is not designed to be lifted by a service jack. Only hoist the vehicle at the four locations, as indicated.

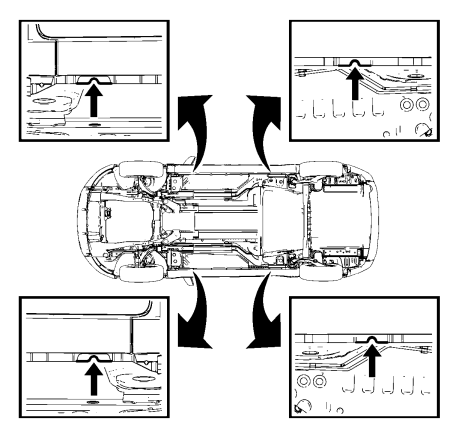

Fig 1: Lifting and Jacking Vehicle
GM2503255Courtesy of GENERAL MOTORS COMPANY
WARNING:

Do not use a service jack to lift this vehicle. Lifting the vehicle with a jack could cause the vehicle to slip off the jack and roll; this could cause injury or death.

CAUTION:

Lifting the vehicle improperly can damage the vehicle and result in costly repairs not covered by the warranty. This vehicle is only designed to be simultaneously hoisted at the four locations, as indicated.
