Vehicle Stability Control System Switch Replacement

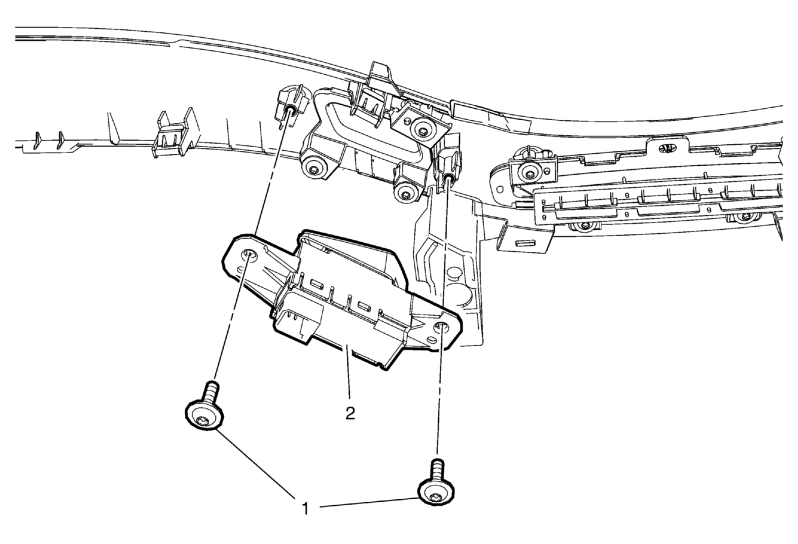

Fig 1: Vehicle Stability Control System Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel molding - passenger side. Refer to Instrument Panel Molding Replacement - Passenger Side .
1	Vehicle Stability Control System Switch Bolt (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Vehicle Stability Control System Switch
