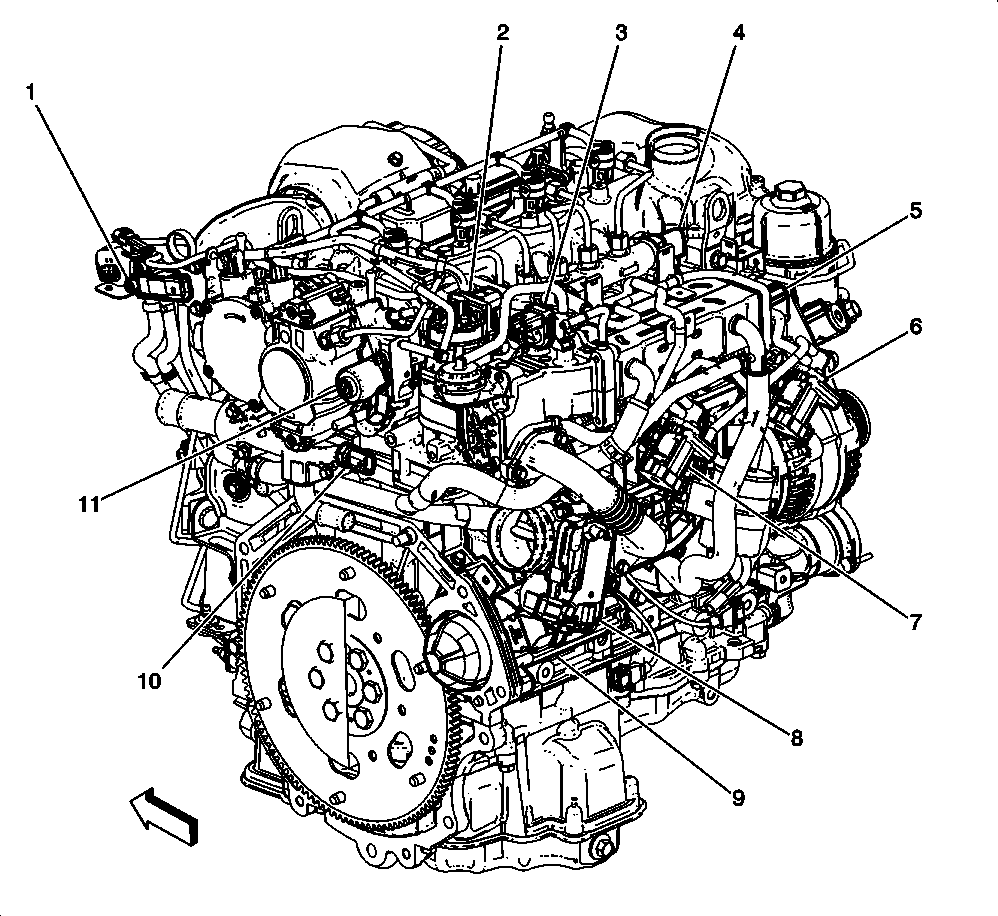

Engine Components- Left Rear (LNP)
| Callout | Component Name |
|---|---|
| 1 | B136 Exhaust Pressure Differential Sensor |
| 2 | Q14 Exhaust Gas Recirculation Valve |
| 3 | Q47 Exhaust Gas Recirculation Cooler Bypass Solenoid Valve |
| 4 | B47B Fuel Rail Pressure Sensor |
| 5 | B115 Vehicle Speed Sensor |
| 6 | Q41 Turbocharger Vane Position Control Solenoid Valve |
| 7 | Q22 Intake Manifold Tuning Solenoid Valve |
| 8 | Q38 Throttle Body |
| 9 | M64 Starter Motor |
| 10 | B34 Engine Coolant Temperature Sensor |
| 11 | Q18 Fuel Pressure Regulator |
