Generator Bracket Replacement

Generator Bracket Replacement (V6)

Removal Procedure




1. Remove the generator. Refer to Generator Replacement (V6) Generator ReplacementGenerator Replacement (V8) Generator ReplacementGenerator Replacement (Diesel) Generator Replacement.
2. Remove the drive belt tensioner. Refer to Drive Belt Tensioner Replacement Service and Repair.
3. Remove the drive belt idler pulley. Refer to Drive Belt Idler Pulley Replacement - Right Side Drive Belt Idler Pulley Replacement - Right Side.

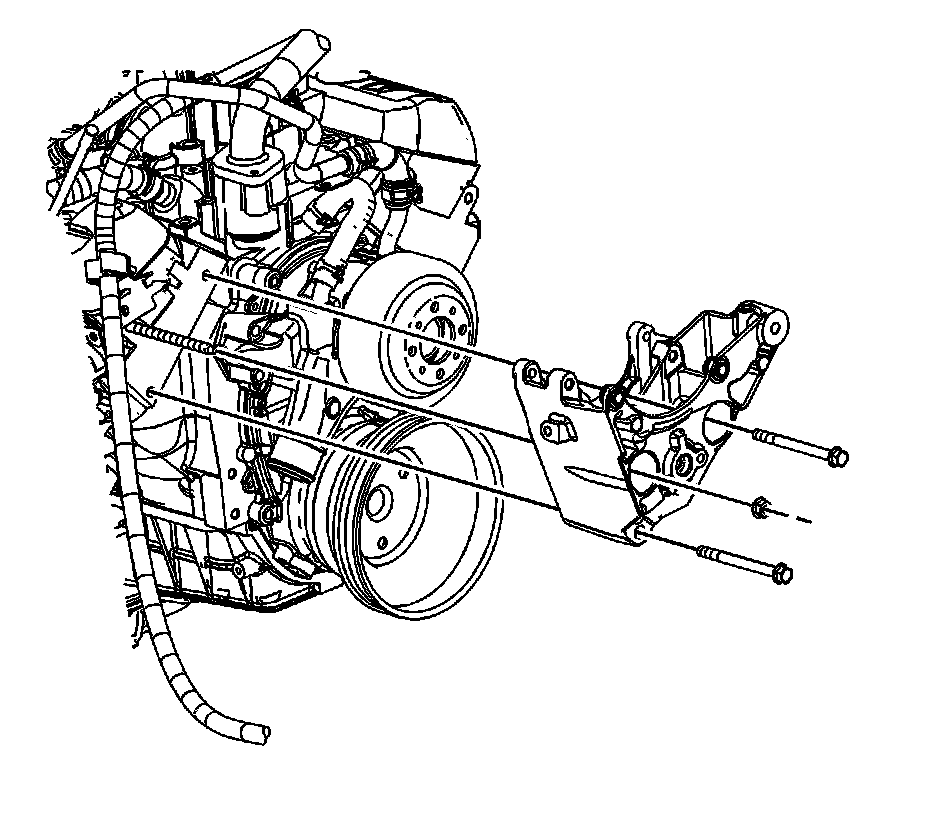

4. Remove the generator bracket bolts and nut.
5. Remove the generator bracket.

Installation Procedure




1. Install the generator bracket onto the stud.

Caution: Refer to Fastener Caution Fastener Caution.

2. Install the generator bracket bolts and nut.

Tighten the bolts/nut to 41 Nm (30 lb ft).

3. Install the drive belt idler pulley. Refer to Drive Belt Idler Pulley Replacement - Right Side Drive Belt Idler Pulley Replacement - Right Side.
4. Install the drive belt tensioner. Refer to Drive Belt Tensioner Replacement Service and Repair.
5. Install the generator. Refer to Generator Replacement (V6) Generator ReplacementGenerator Replacement (V8) Generator ReplacementGenerator Replacement (Diesel) Generator Replacement.
