Installation Procedure

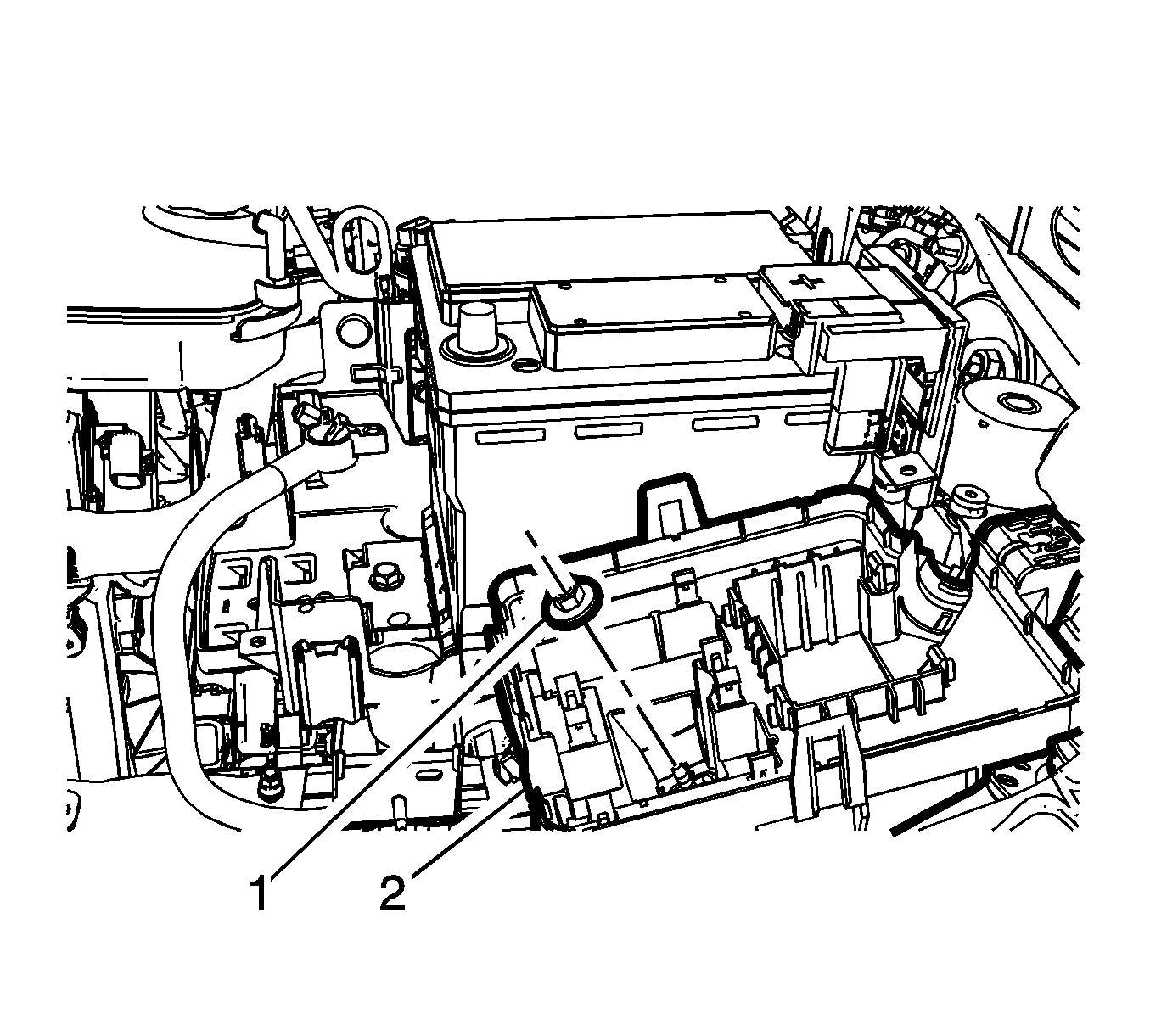

    Fig 1: Junction Block Base & Nut
    GM2504774Courtesy of GENERAL MOTORS COMPANY
  1. Position the junction block base (2) to the inner wheelhouse stud.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the junction block base nut (1) and tighten to 9 N.m (79 lb in).

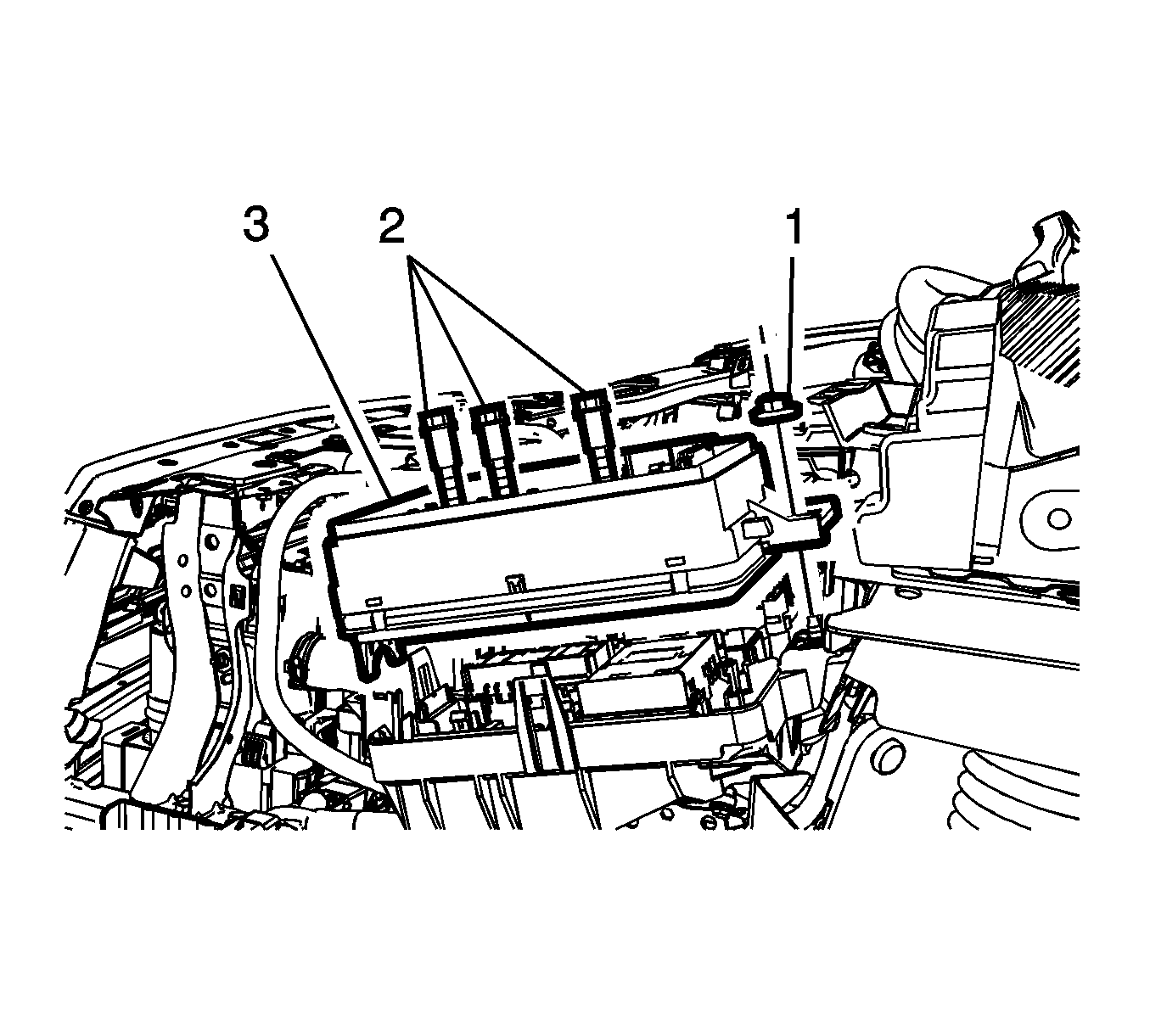

    3. Fig 2: Junction Block & Components
    GM2504710Courtesy of GENERAL MOTORS COMPANY
  3. Install the junction block to the base.
  4. Install the junction block bolts (2) and tighten to 9 N.m (79 lb in).
  5. Install the junction block nut (1) and tighten to 7 N.m (61 lb in).

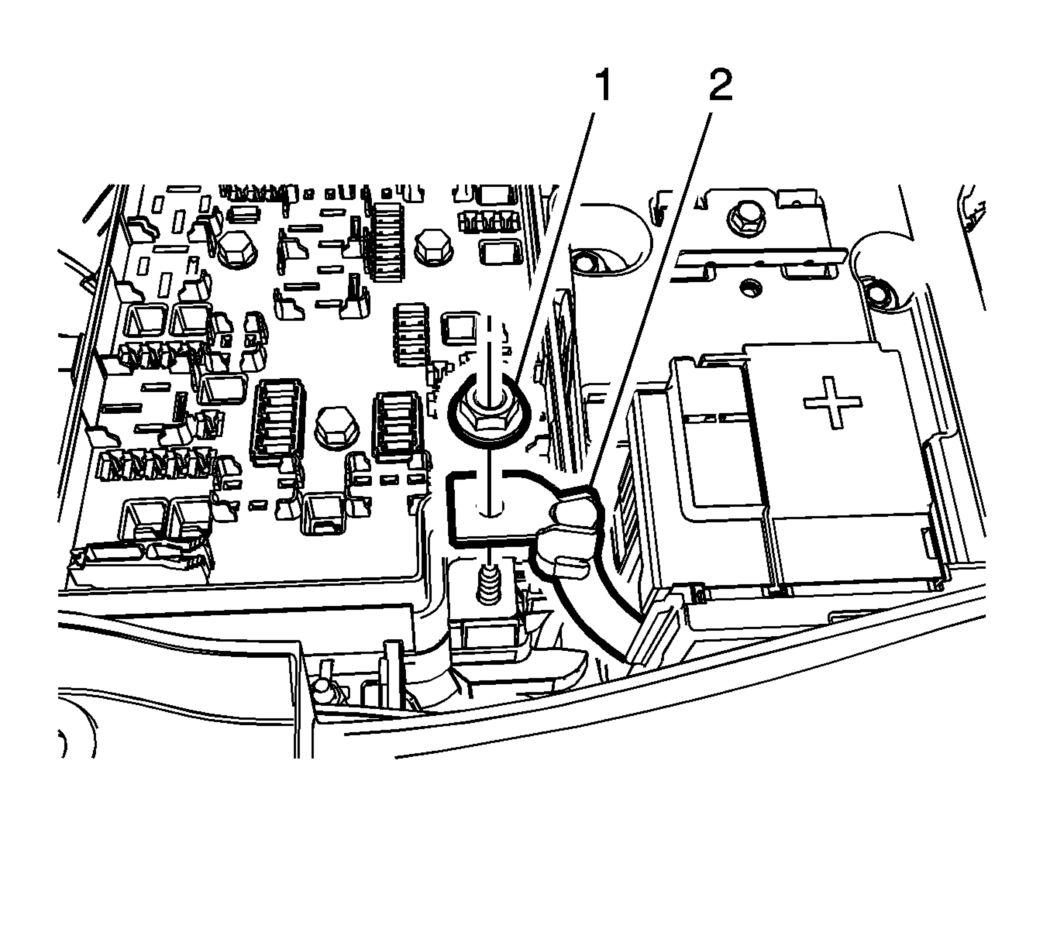

    6. Fig 3: Positive Battery Cable & Nut
    GM2504689Courtesy of GENERAL MOTORS COMPANY
  6. Position the positive battery cable to the junction block.
  7. Install the positive battery cable nut (2) and tighten to 5 N.m (44 lb in).

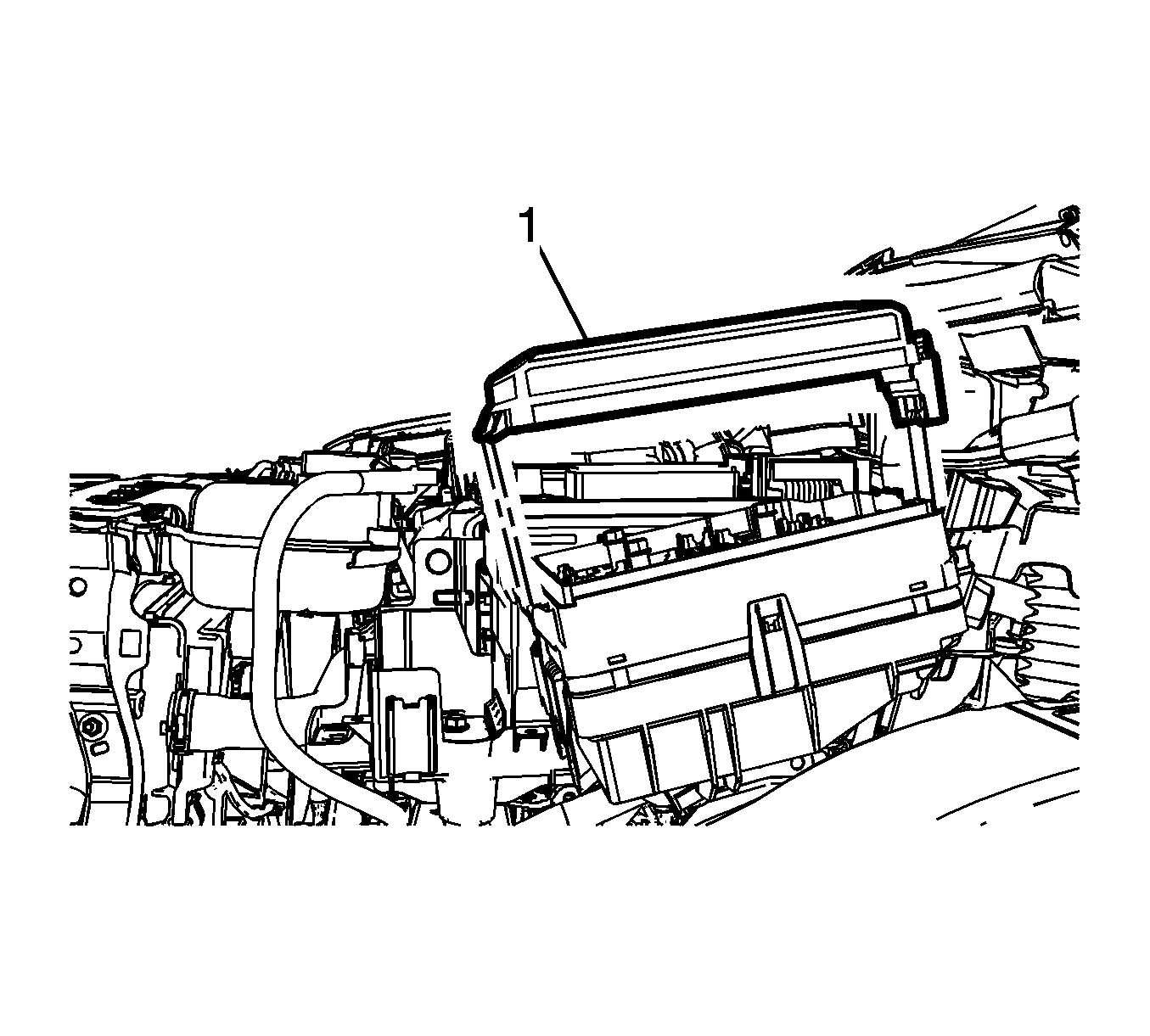

    8. Fig 4: Junction Block Cover
    GM2508802Courtesy of GENERAL MOTORS COMPANY
  8. Install the junction block cover (1).
  9. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
