Outside Remote Control Rearview Mirror Switch Replacement

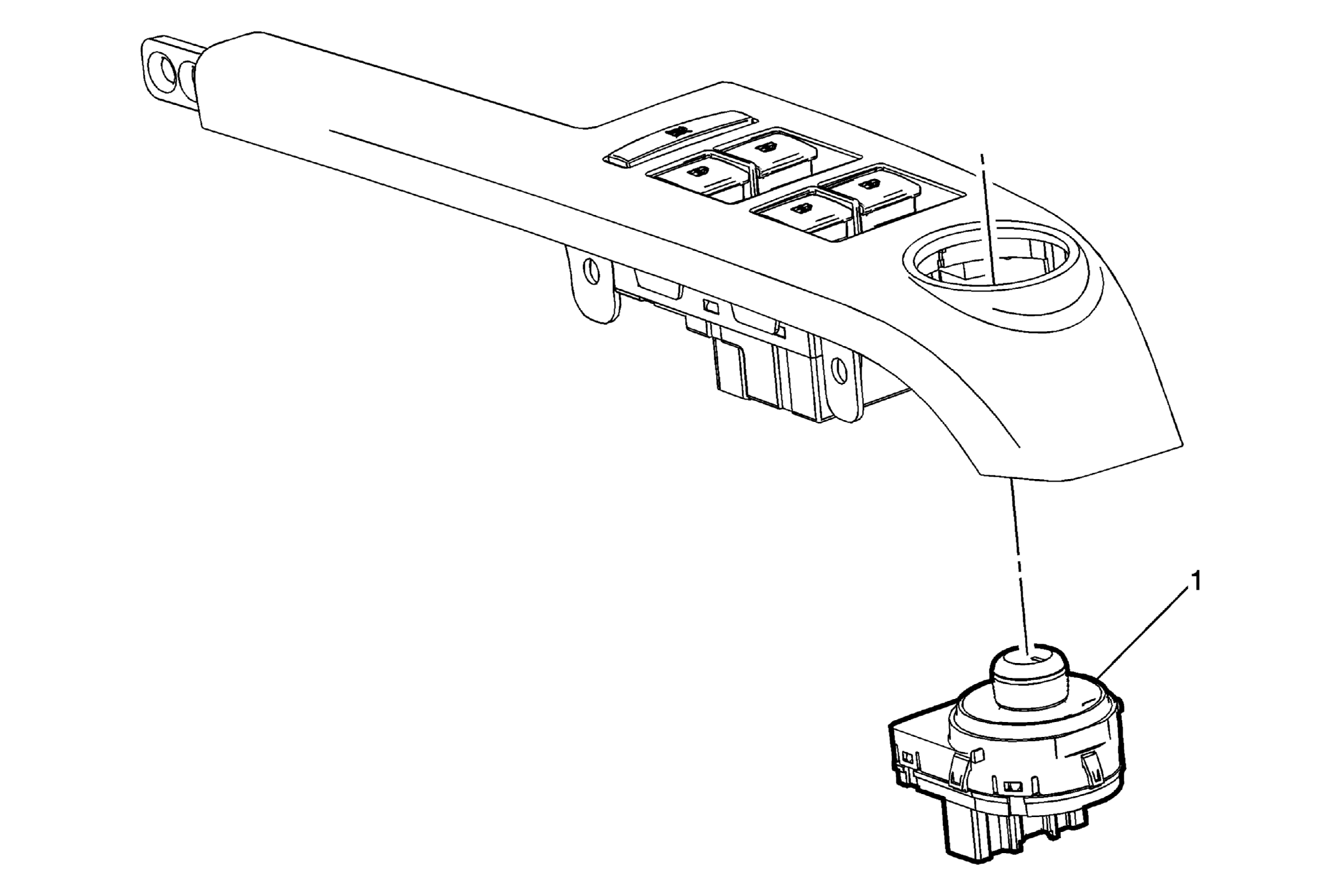

Fig 1: Outside Remote Control Rearview Mirror Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door widow switch bezel. Refer to Front Side Door Window Switch Bezel Replacement (Right Side) , Front Side Door Window Switch Bezel Replacement (Left Side) .
1	Outside Remote Control Rearview Mirror Switch Assembly Procedure Disconnect the electrical connector. Refer to Control Module References for programming and set up procedures.

Callout

Component Name

Outside Remote Control Rearview Mirror Switch Assembly

Procedure
