Removal Procedure

WARNING:

Refer to Brake Fluid Irritant Warning .

CAUTION:

Refer to Brake Fluid Effects on Paint and Electrical Components Caution .

  1. Remove the battery. Refer to Battery Replacement .

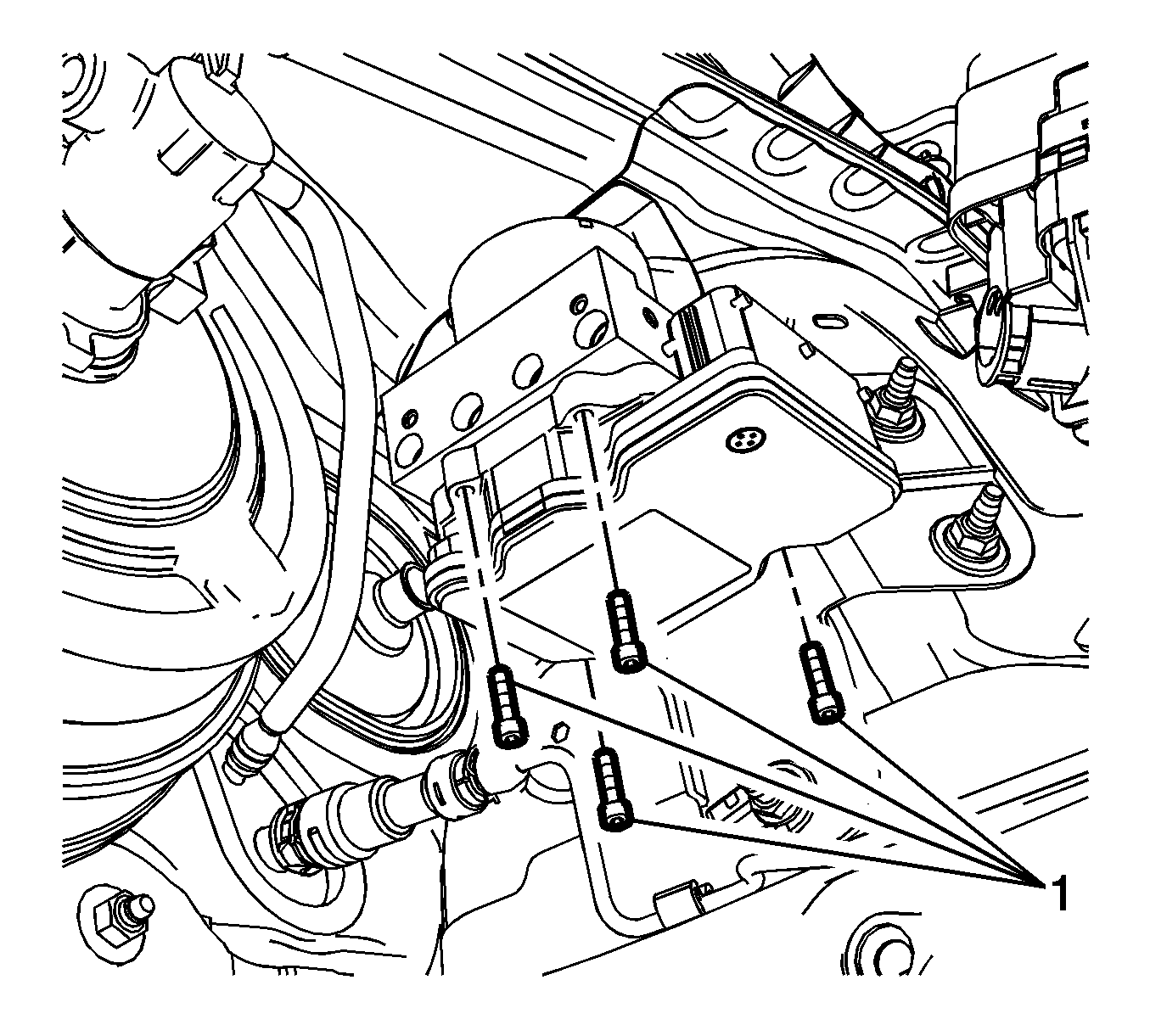

    2. Fig 1: Electronic Brake Control Module Bolts
    GM2535377Courtesy of GENERAL MOTORS COMPANY
  2. Remove the electronic brake control module (EBCM) bolts (1),

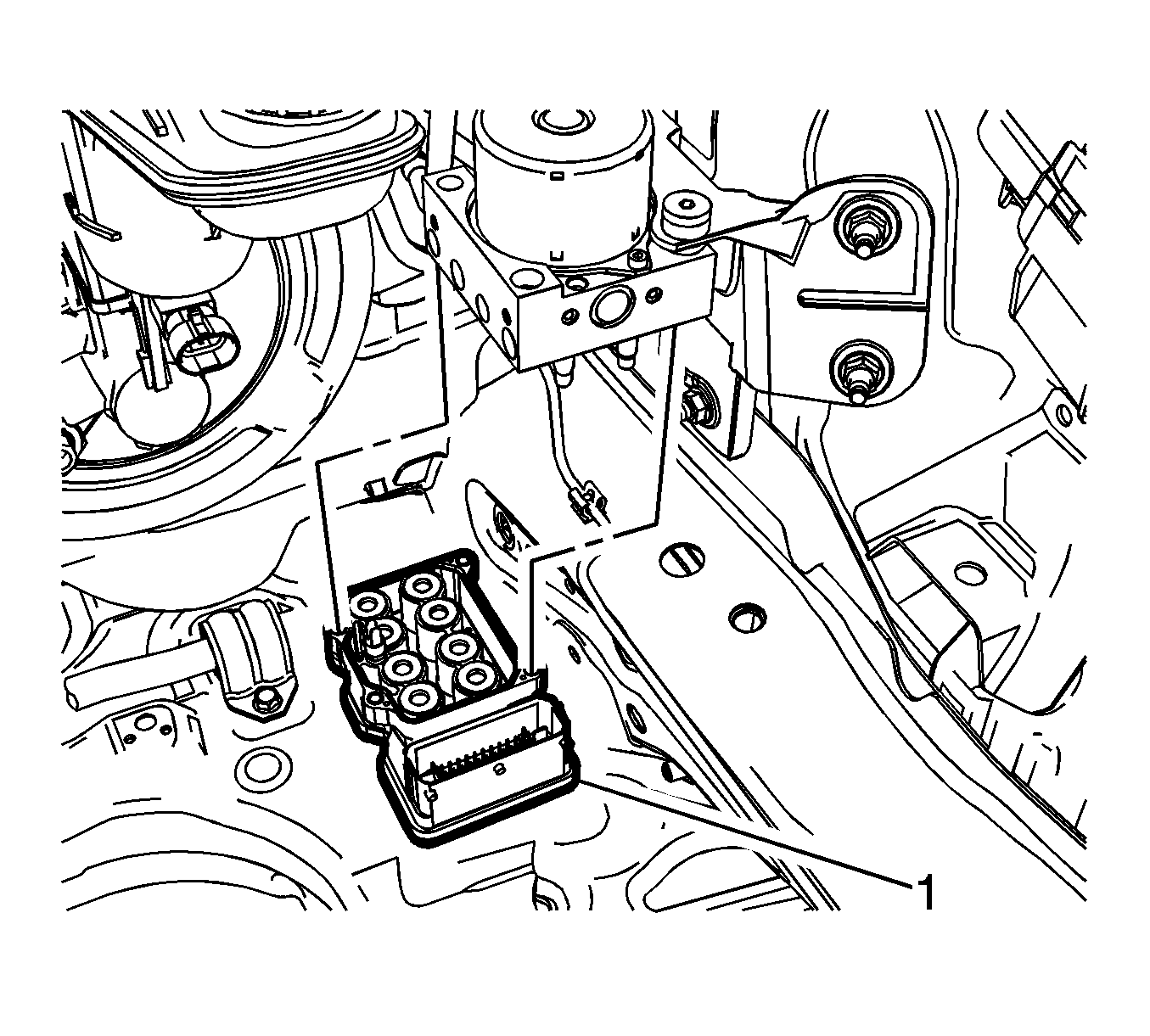

    3. Fig 2: Electronic Brake Control Module
    GM2535378Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do not pry the components apart.

  3. Carefully separate the EBCM (1) from the BPMV.
  4. Clean the sealing surfaces of the EBCM and the BPMV with denatured alcohol and allow to dry.
