Installation Procedure

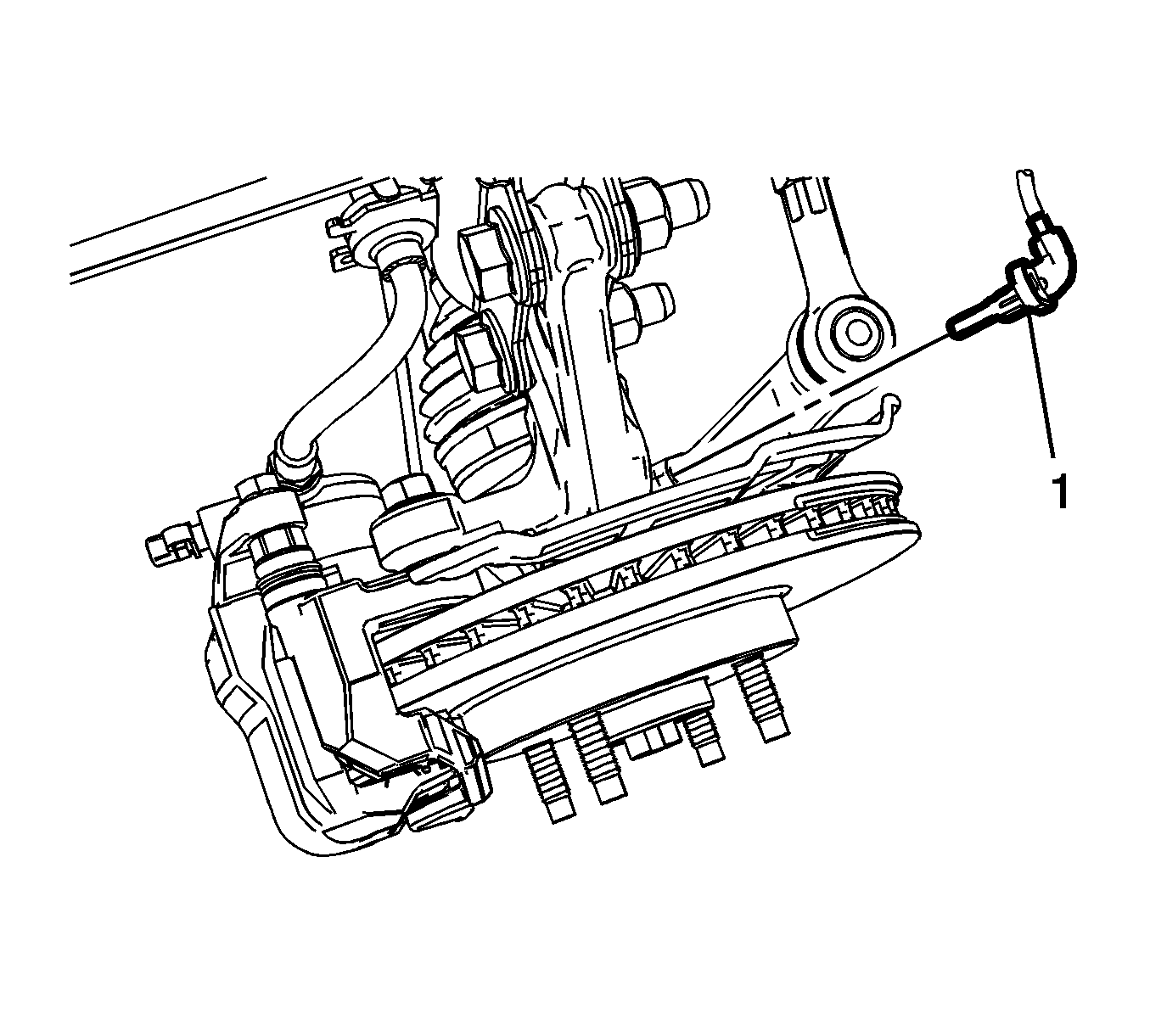

    Fig 1: Front Wheel Speed Sensor
    GM2495375Courtesy of GENERAL MOTORS COMPANY
  1. Install the wheel speed sensor (1) to the steering knuckle.

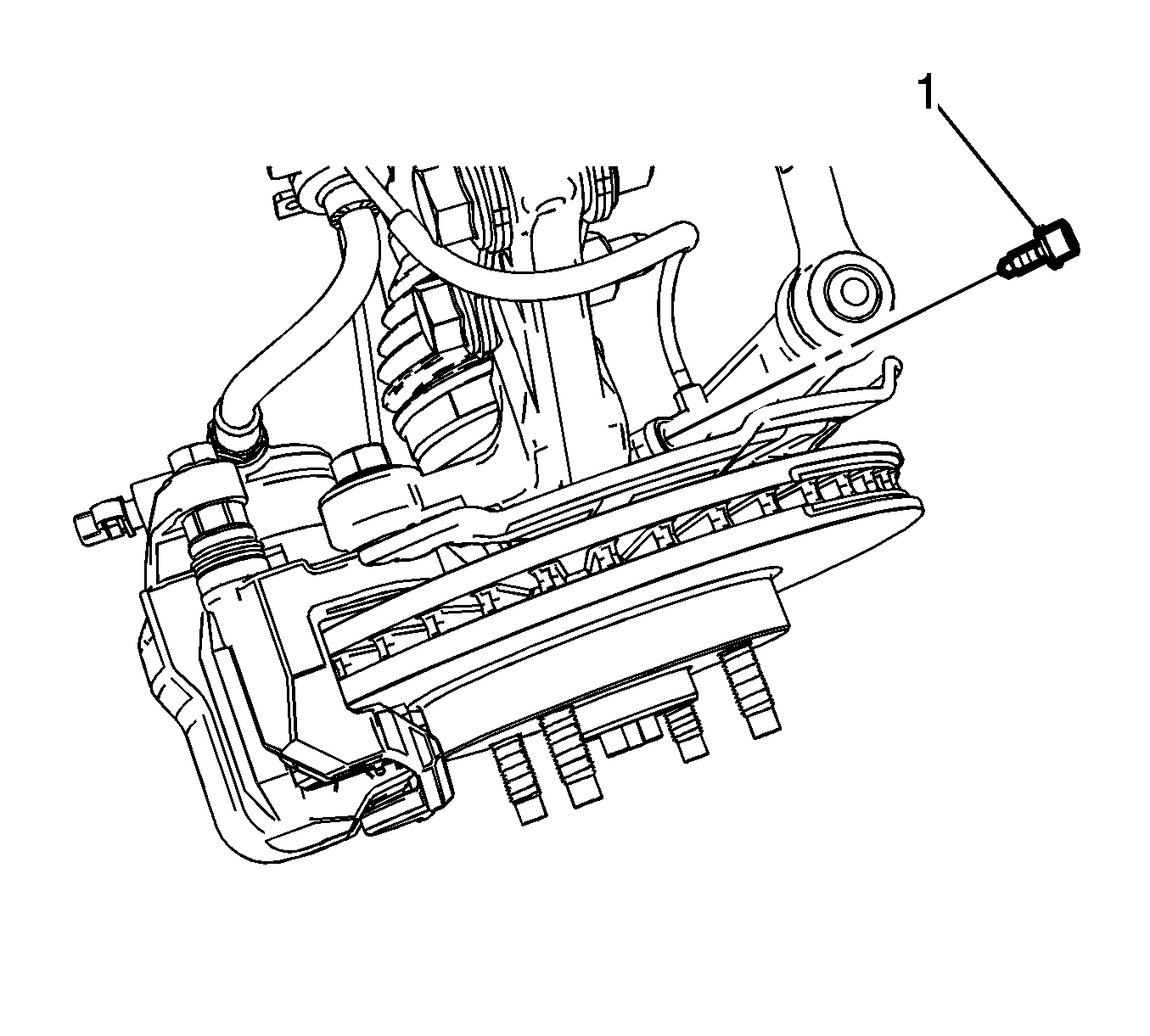

    2. Fig 2: Front Wheel Speed Sensor Bolt
    GM2495371Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the wheel speed sensor bolt (1) and tighten to 8 N.m (71 lb in).

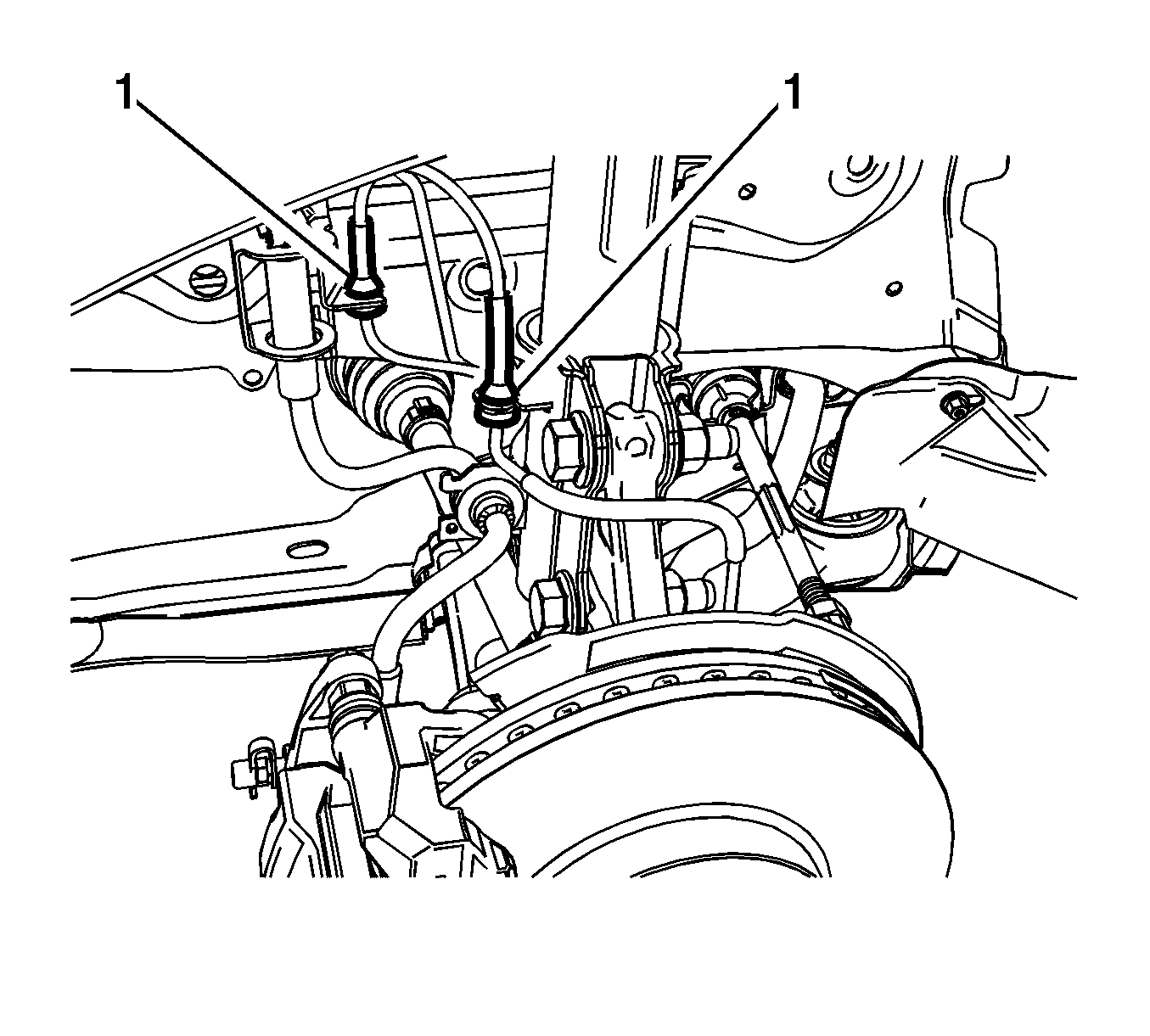

    3. Fig 3: Front Wheel Speed Sensor Harness Grommets
    GM2495367Courtesy of GENERAL MOTORS COMPANY
  3. Install the wheel speed sensor harness grommets (1) to the brake hose brackets.

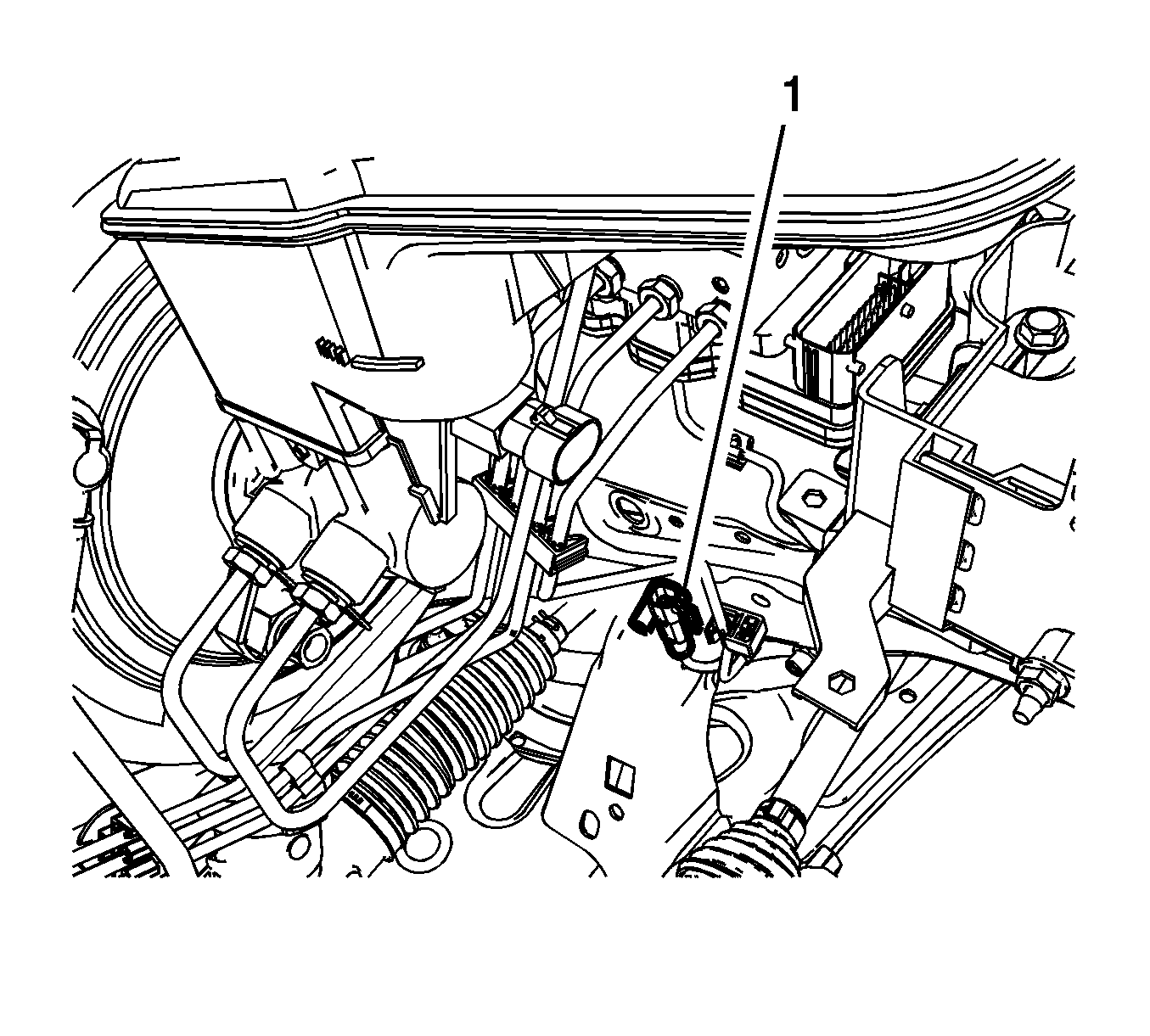

    4. Fig 4: Front Wheel Speed Sensor Electrical Connector
    GM2495364Courtesy of GENERAL MOTORS COMPANY
  4. Connect the wheel speed sensor electrical connector (1) and install the connector to the vehicle body.
  5. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  6. Perform the Diagnostic System Check - Vehicle .
