Vehicle Yaw Sensor Replacement

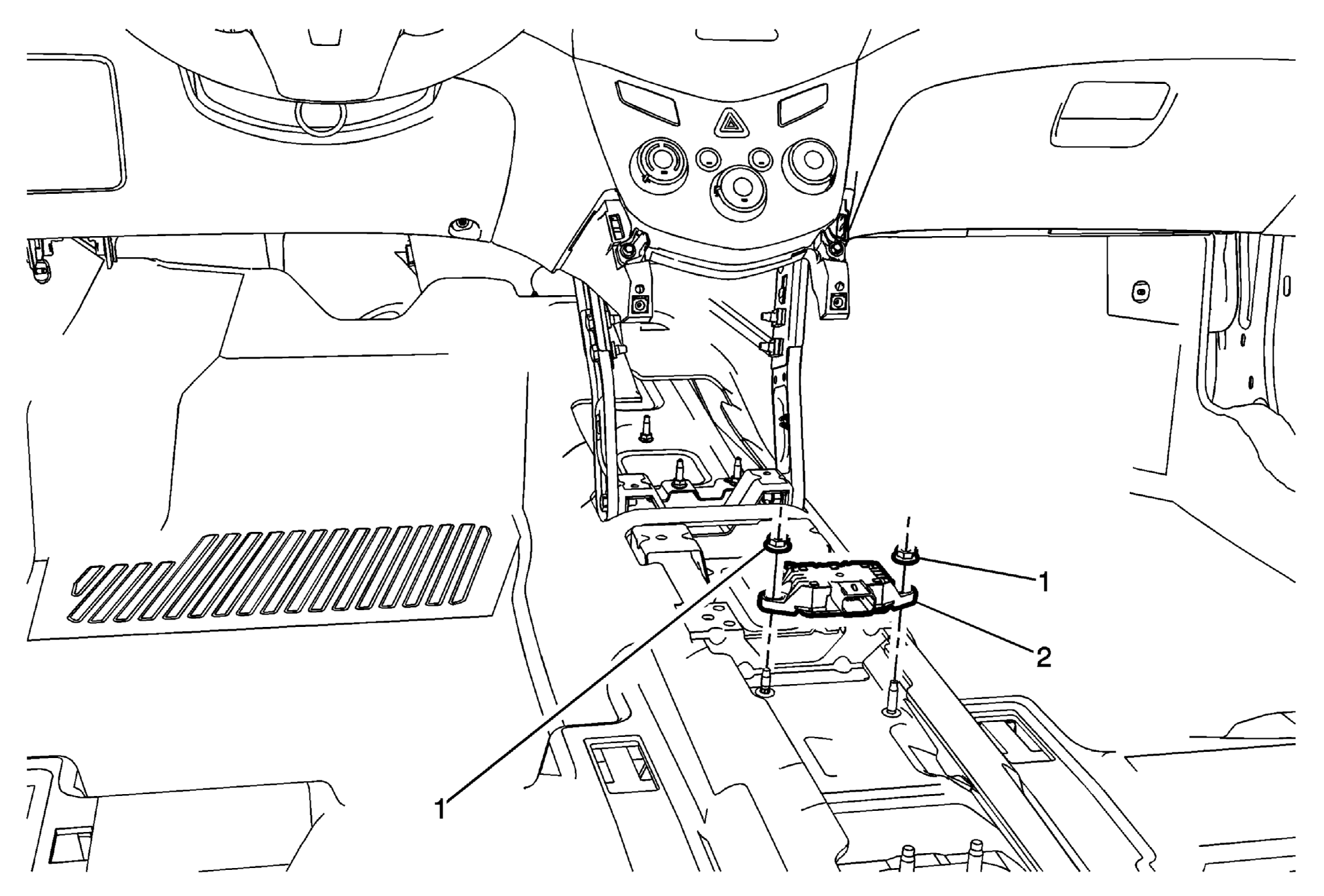

Fig 1: Vehicle Yaw Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Turn the ignition OFF. Remove the front floor console. Refer to Front Floor Console Replacement .
1	Yaw Sensor Nut CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Vehicle Yaw Sensor with Vehicle Lateral and Longitudinal Accelerometer Procedure Disconnect the electrical connector. After the installation is complete, perform the Vehicle Yaw Sensor Learn .

Callout

Component Name

Preliminary Procedures

Yaw Sensor Nut

CAUTION:

Tighten
9 N.m (80 lb in)

Vehicle Yaw Sensor with Vehicle Lateral and Longitudinal Accelerometer

Procedure
