Electrical Component Locator - Front Of Vehicle/Engine Compartment Component Views
>>
Front of Vehicle/Engine Compartment Component Views
>>
Right of Engine Compartment Components
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Right of Engine Compartment Components
Right of Engine Compartment Components
Component Name
Callout
B75B Mass Air Flow/Intake Air Temperature Sensor (LUW) or B75C Multifunction Intake Air Sensor (LUV)
1

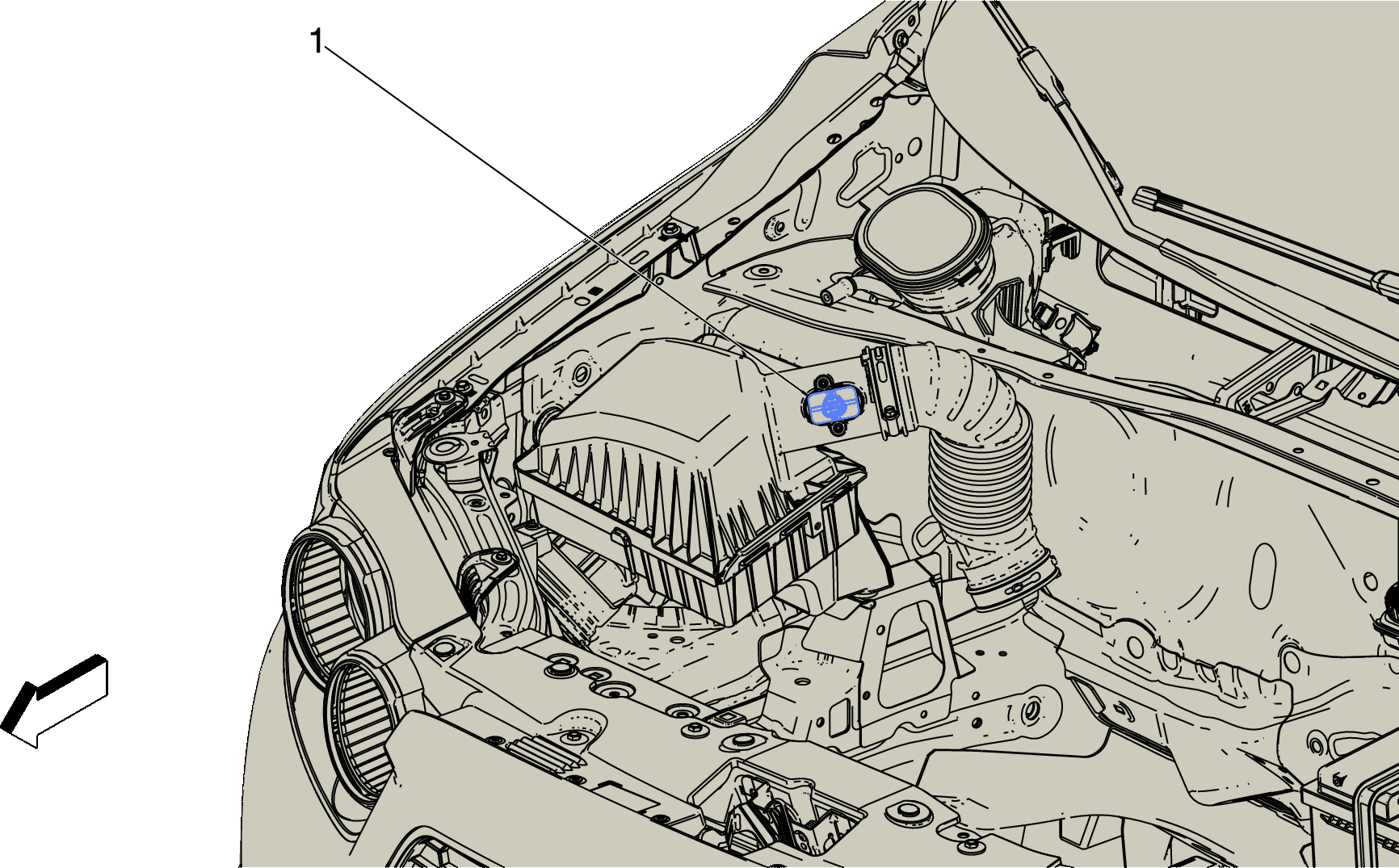

Fig 1: Right of Engine Compartment Components
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
