3. Control Valve Body Assembly Removal




Control Valve Body Assembly Removal

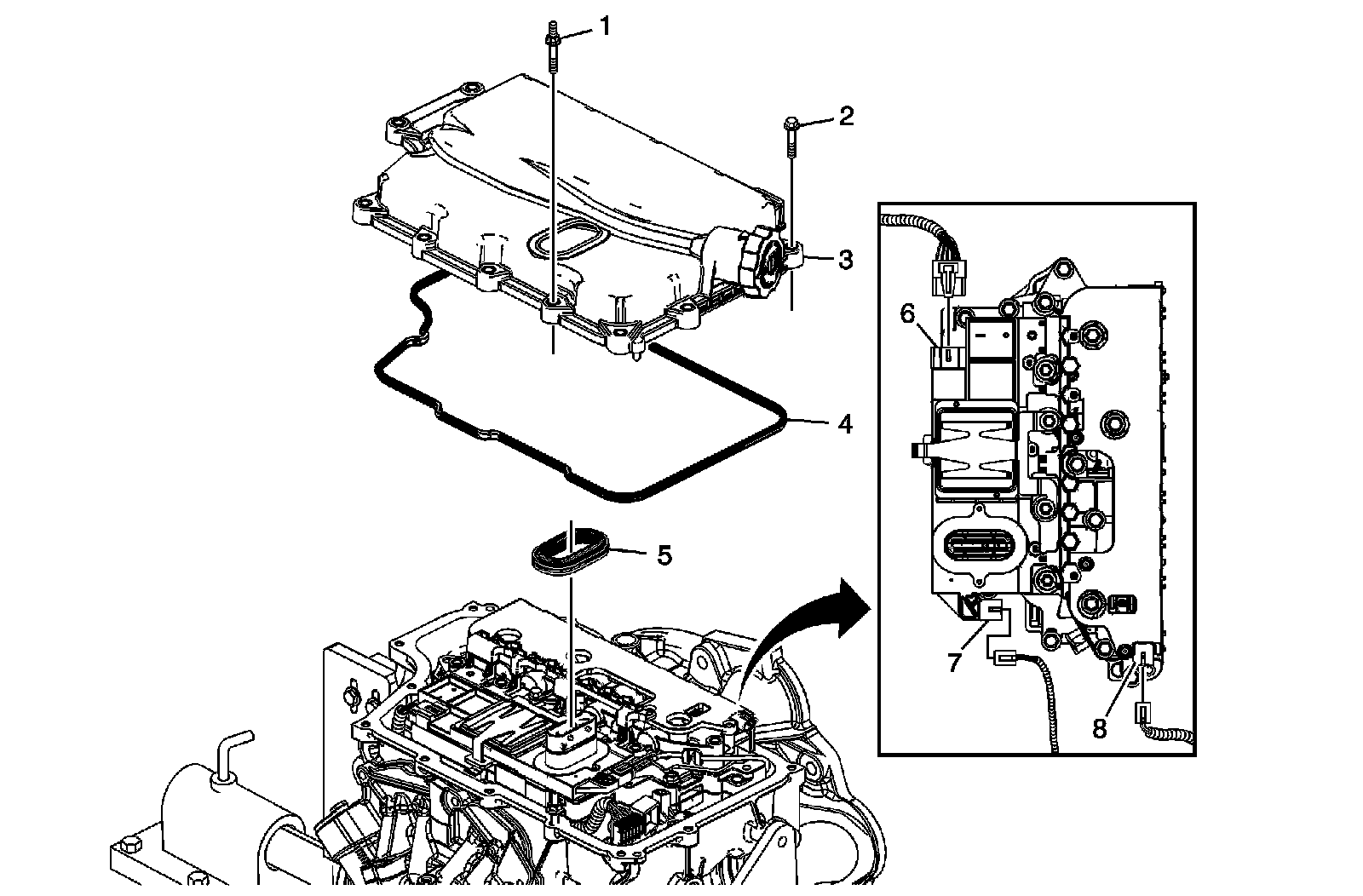

Control Valve Body Cover Removal

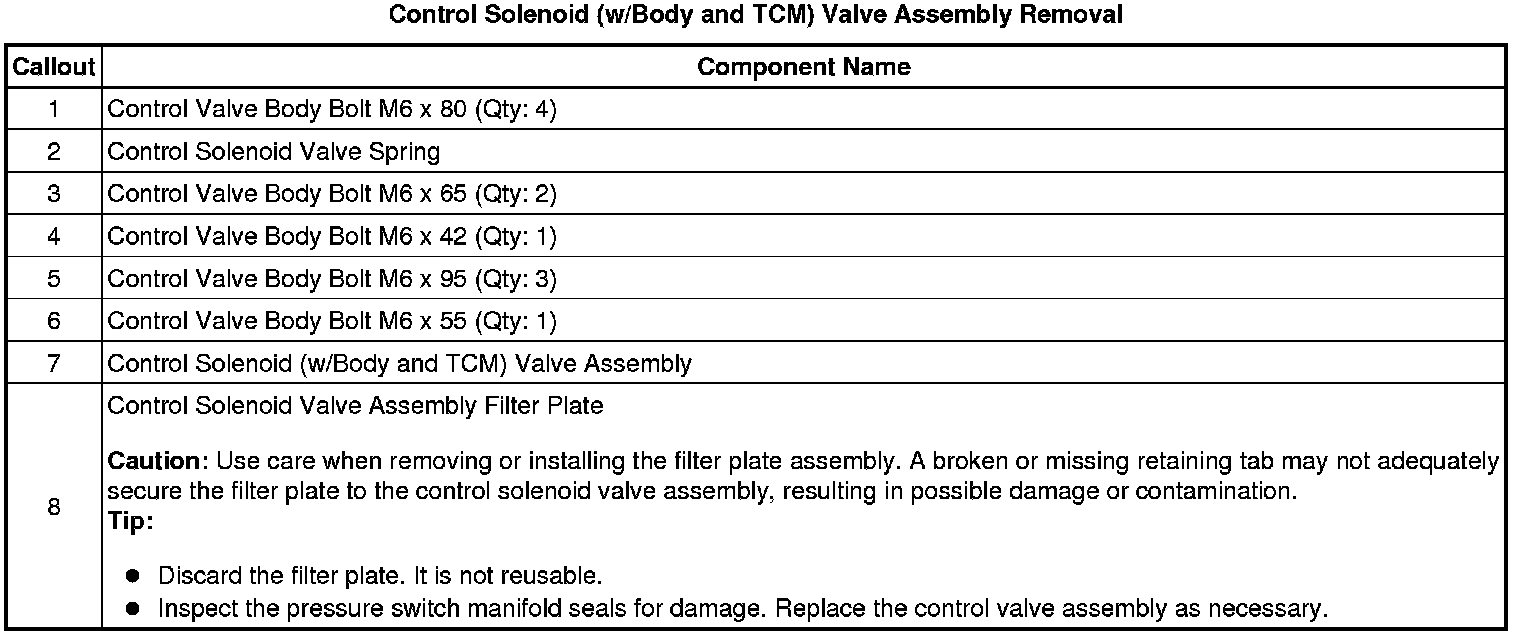

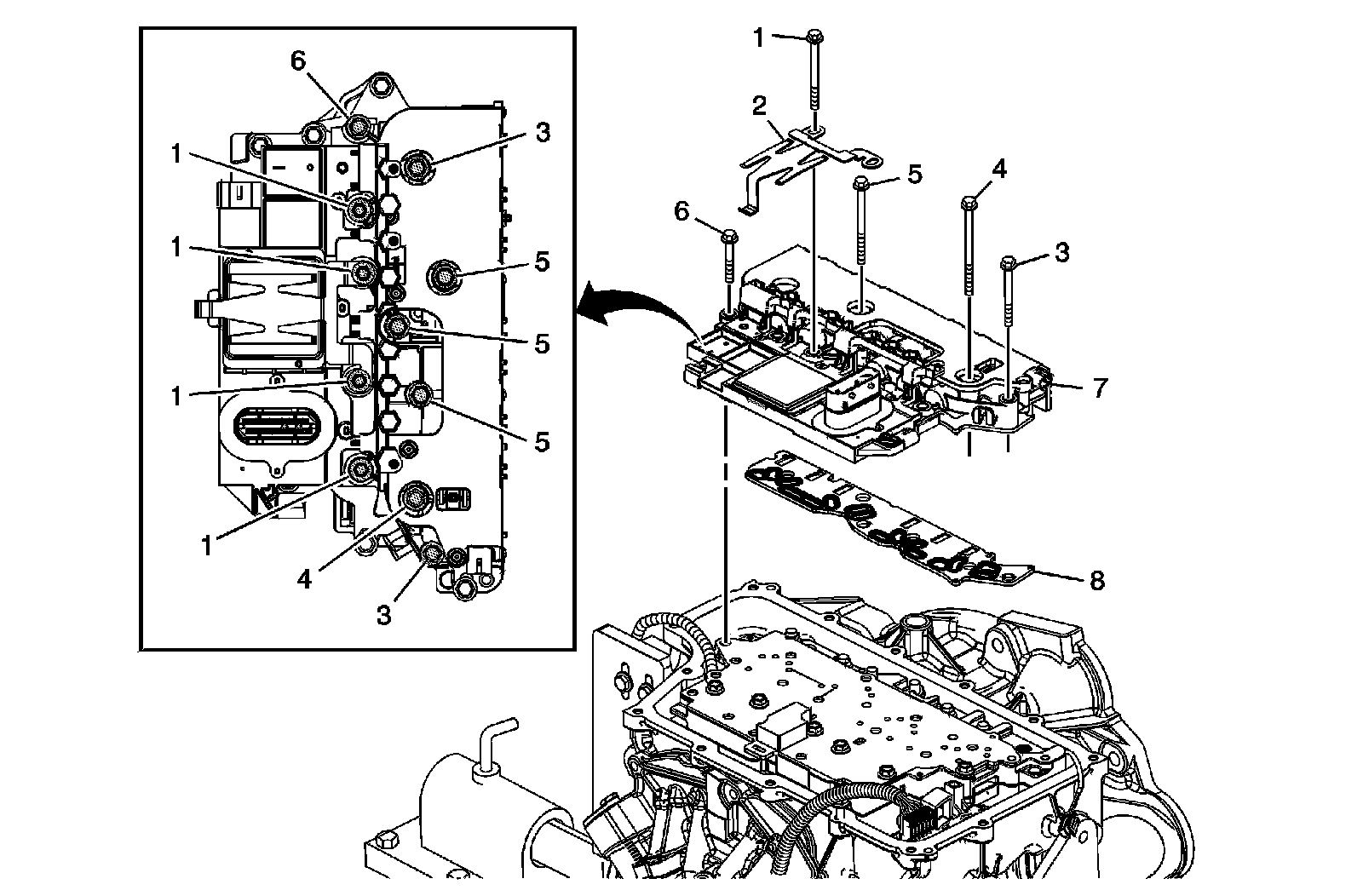

Control Solenoid (w/Body and TCM) Valve Assembly Removal

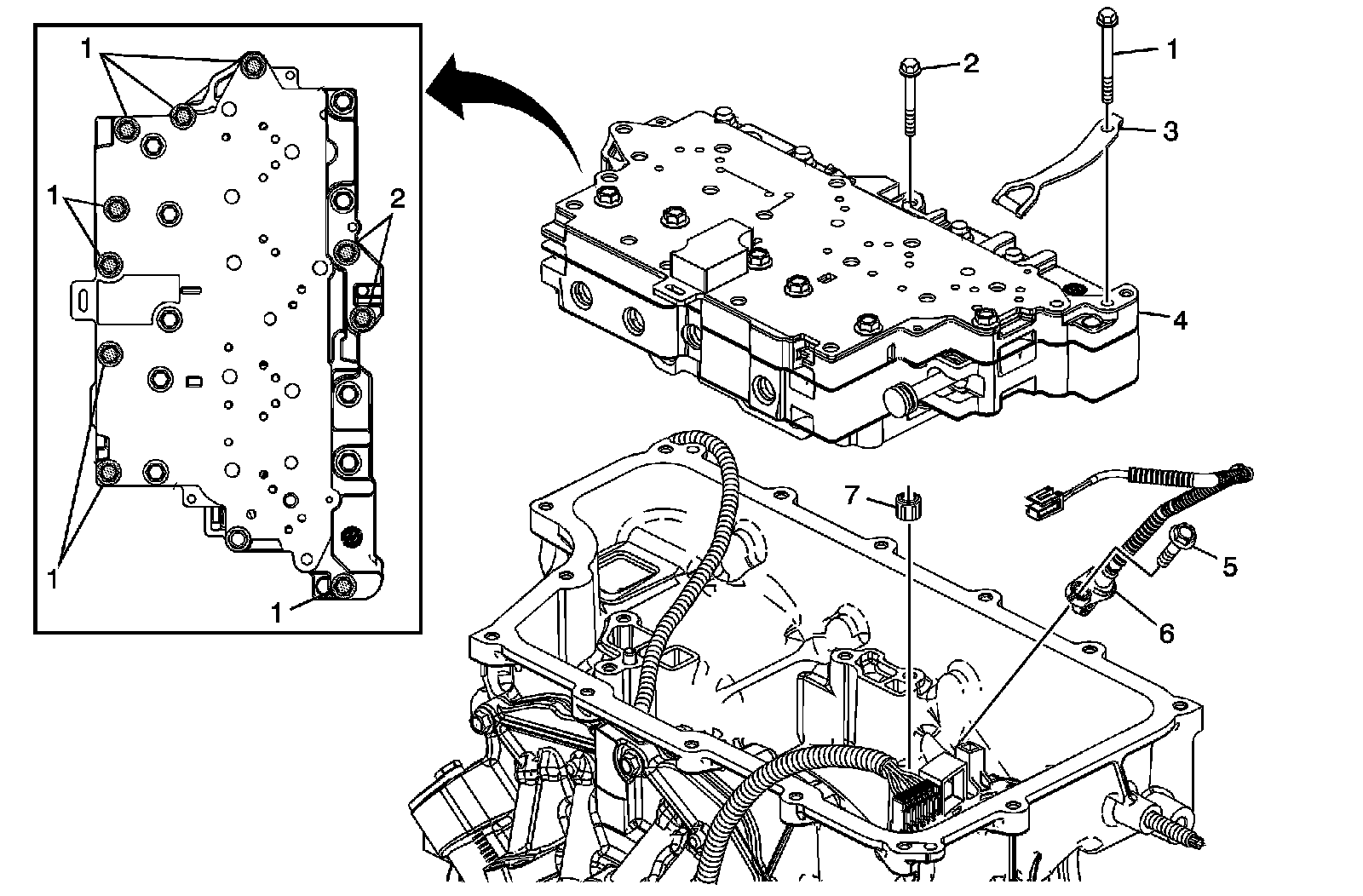

Control Valve Body Assembly and Output Speed Sensor Removal
