Radio Front Side Door Speaker Replacement

WARNING: This page is about a different car, the 2013 GMC Acadia, 2013 Chevrolet Traverse, and 2013 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

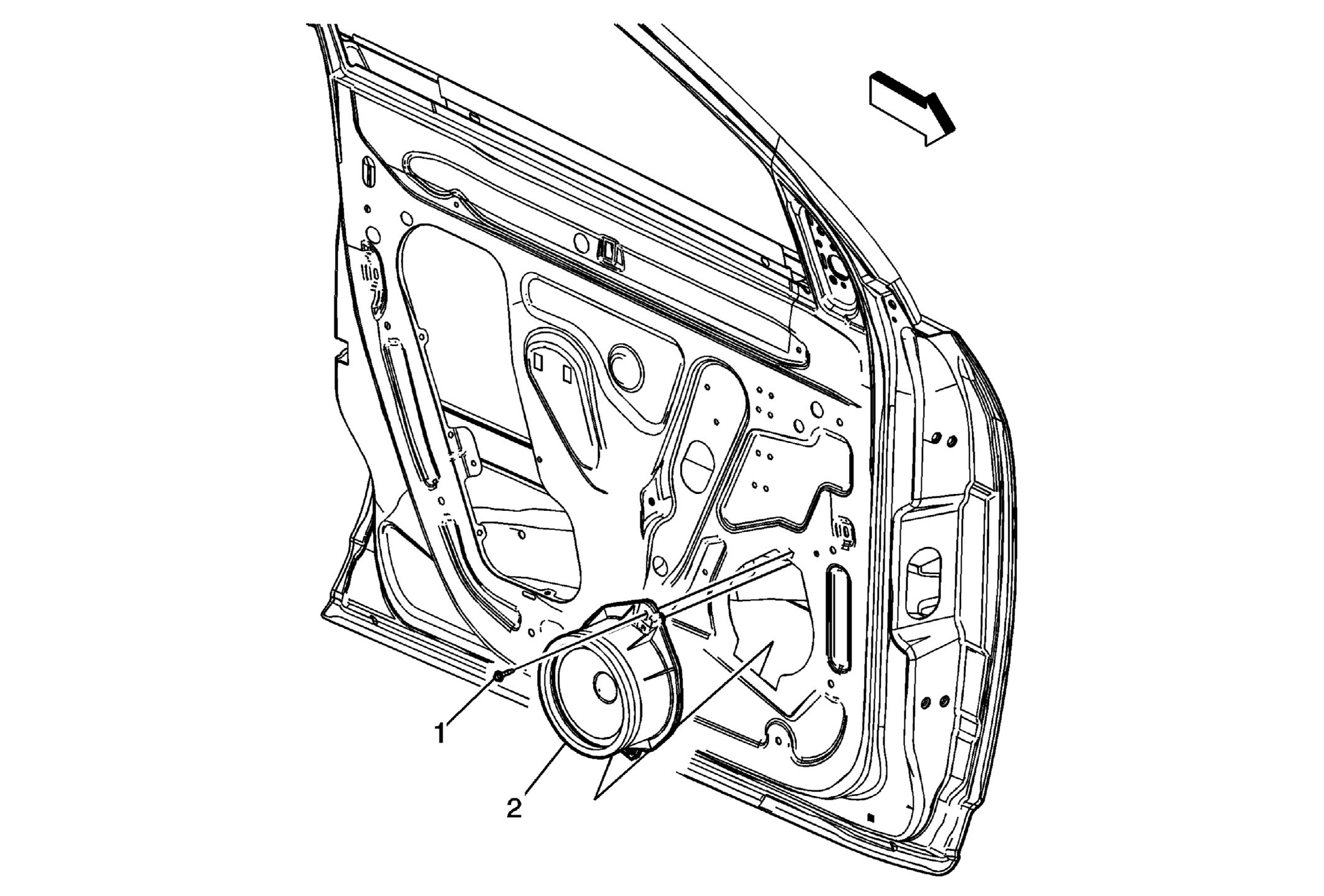

Fig 1: Radio Front Side Door Speaker

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door trim panel. Refer to Front Side Door Trim Panel Replacement - Left Side (Enclave) , Front Side Door Trim Panel Replacement - Left Side (Acadia or Traverse) or Front Side Door Trim Panel Replacement - Right Side (Enclave) or Front Side Door Trim Panel Replacement - Right Side (Acadia or Traverse) .
1	Front Side Door Speaker Screw CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Side Door Speaker Procedure Disconnect the electrical connectors.
