OnStar Wiring Schematics: UE1

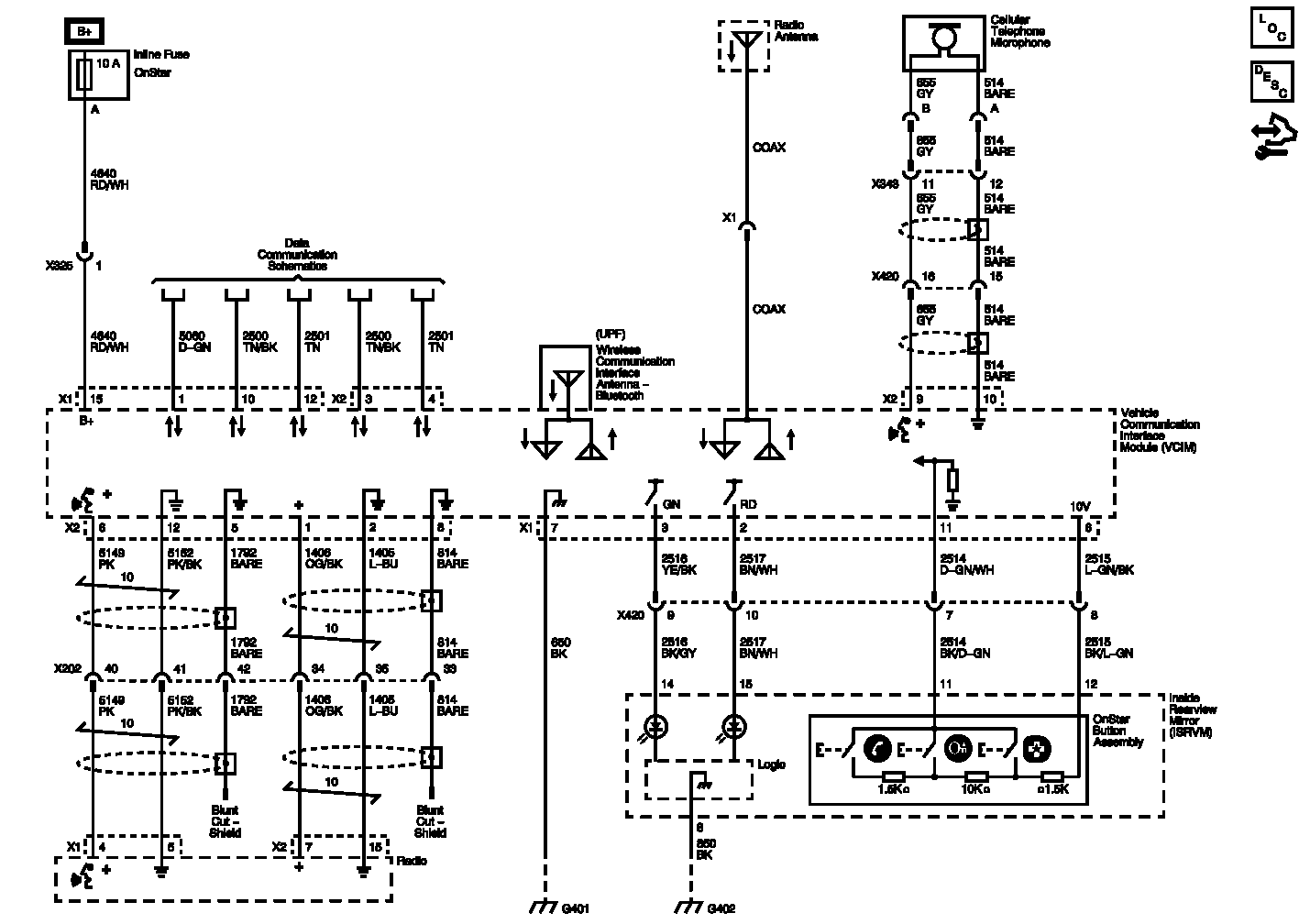

Fig 1: OnStar UE1 Wiring Diagram
GM2566968Courtesy of GENERAL MOTORS COMPANY
