Liftgate Outside Handle Replacement

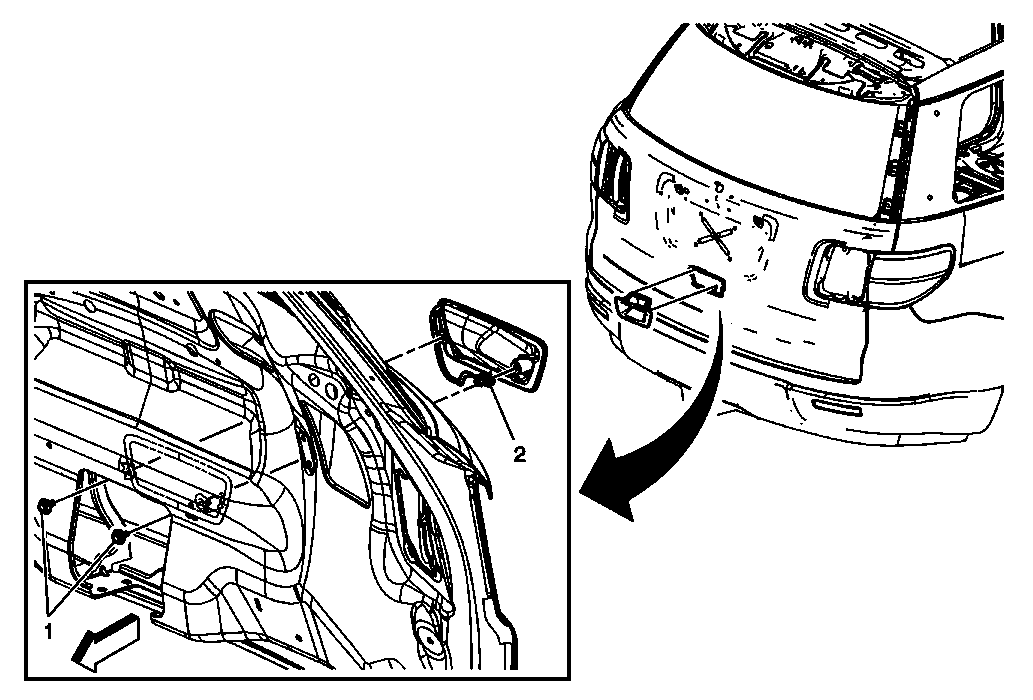

Fig 1: View Of Liftgate Outside Handle
GM1848738Courtesy of GENERAL MOTORS COMPANY
Liftgate Outside Handle Replacement

Callout Component Name
Preliminary Procedure
Remove the liftgate trim panel. Refer to Liftgate Trim Panel Replacement (Traverse) , Liftgate Trim Panel Replacement (Enclave) , Liftgate Trim Panel Replacement (Acadia) .
1 Liftgate Handle Nut (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Liftgate Handle Assembly

Procedure

  1. Remove the rearview camera, if equipped. Refer to Rearview Camera Replacement (Traverse) , Rearview Camera Replacement (Acadia, Enclave, OUTLOOK) .
  2. Disconnect the electrical connector.
