Installation Procedure

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

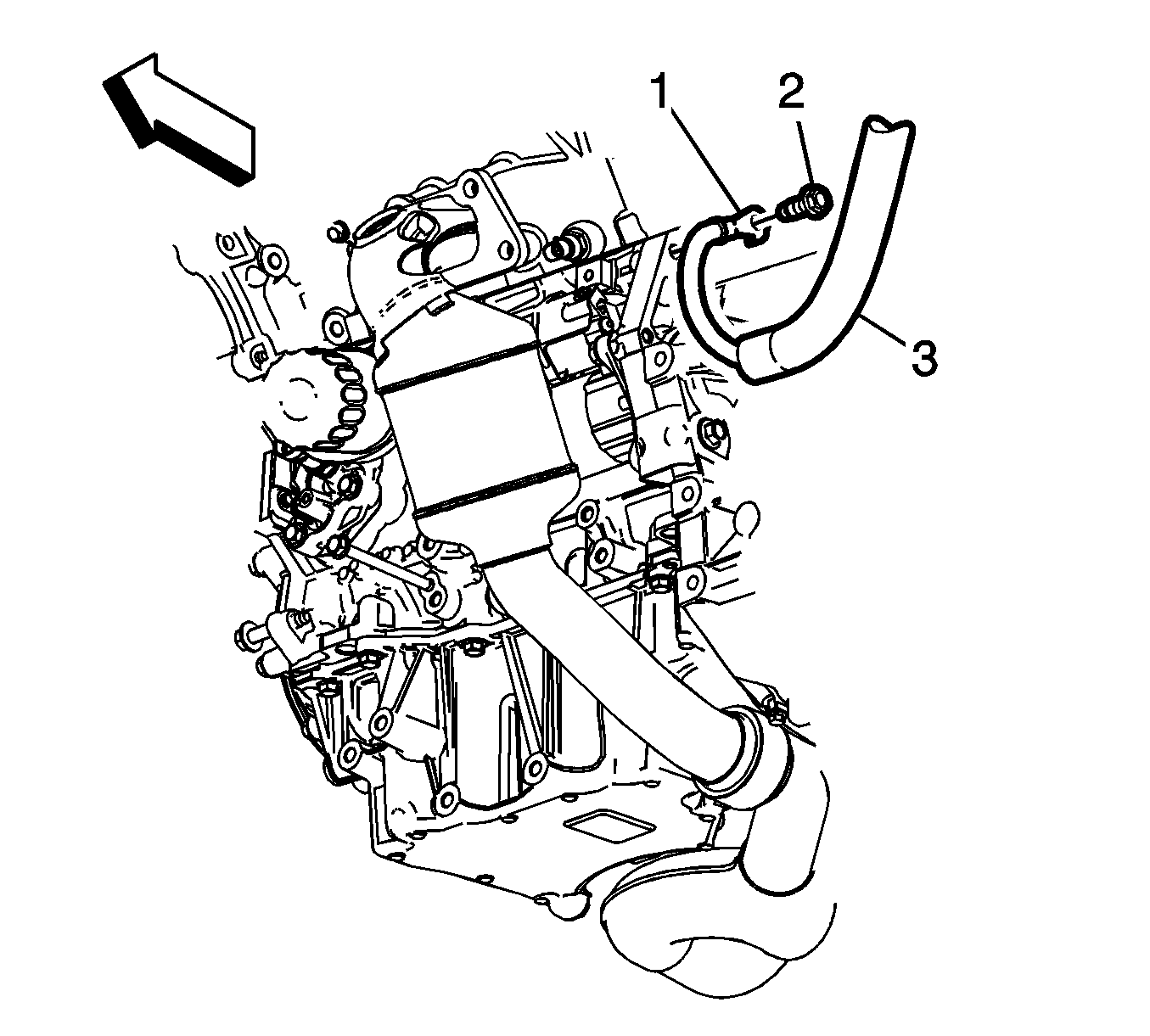

Fig 1: Locating Engine Block Battery Ground Terminal & Bolt

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Install the negative battery cable harness (3) to the engine block with retainer (1) and bolt (2).Tighten to 45 N.m (33 lb ft)

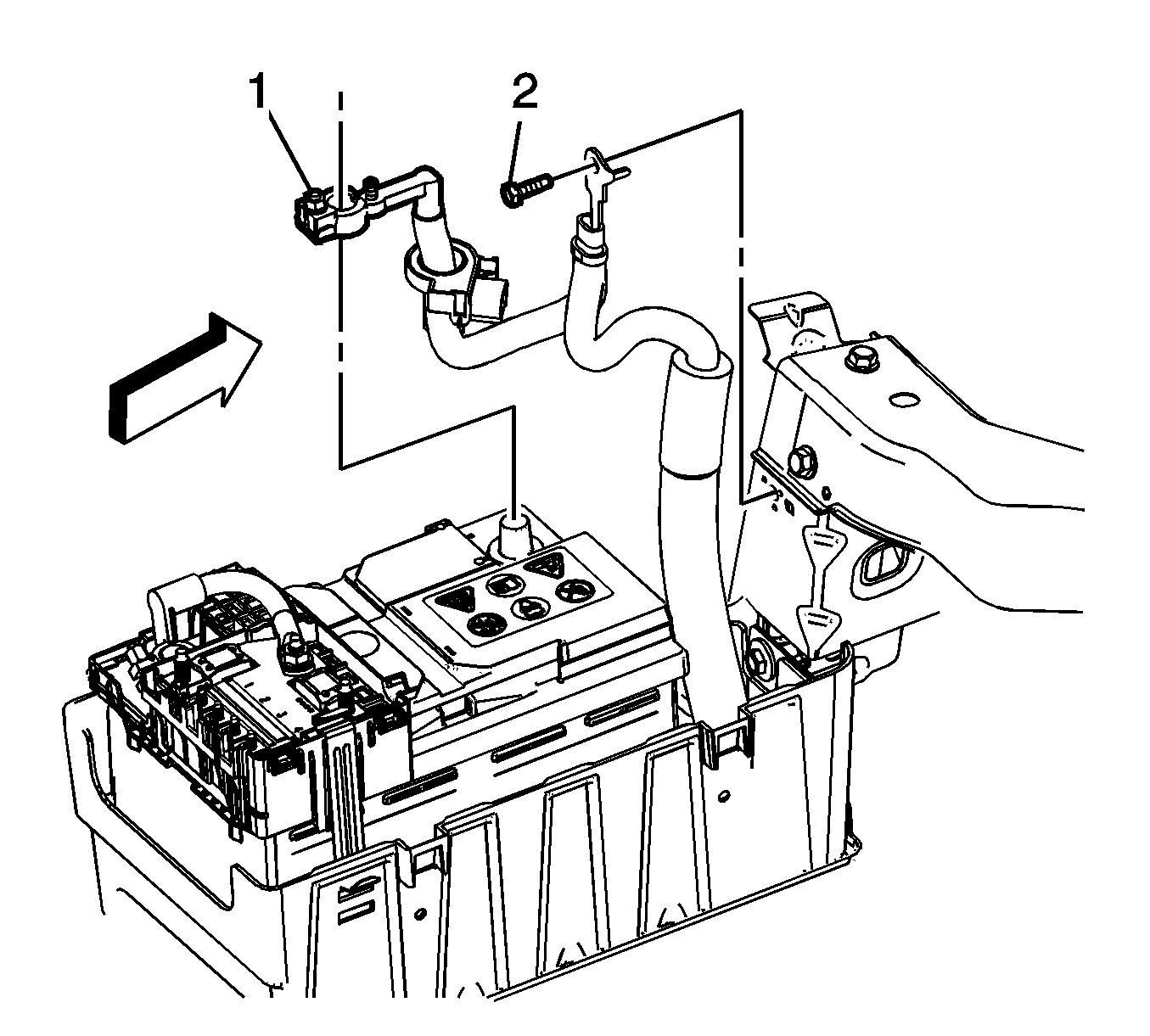

Fig 2: Identifying Ground Harness Wire Terminal & Negative Battery Clamp

Courtesy of GENERAL MOTORS CORP.

Install the negative battery ground bolt (2) and retainer.Tighten to 22 N.m (16 lb ft)
Install the negative battery post clamp (1).Tighten to 9 N.m (80 lb in)
