Battery Tray Support Replacement
WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

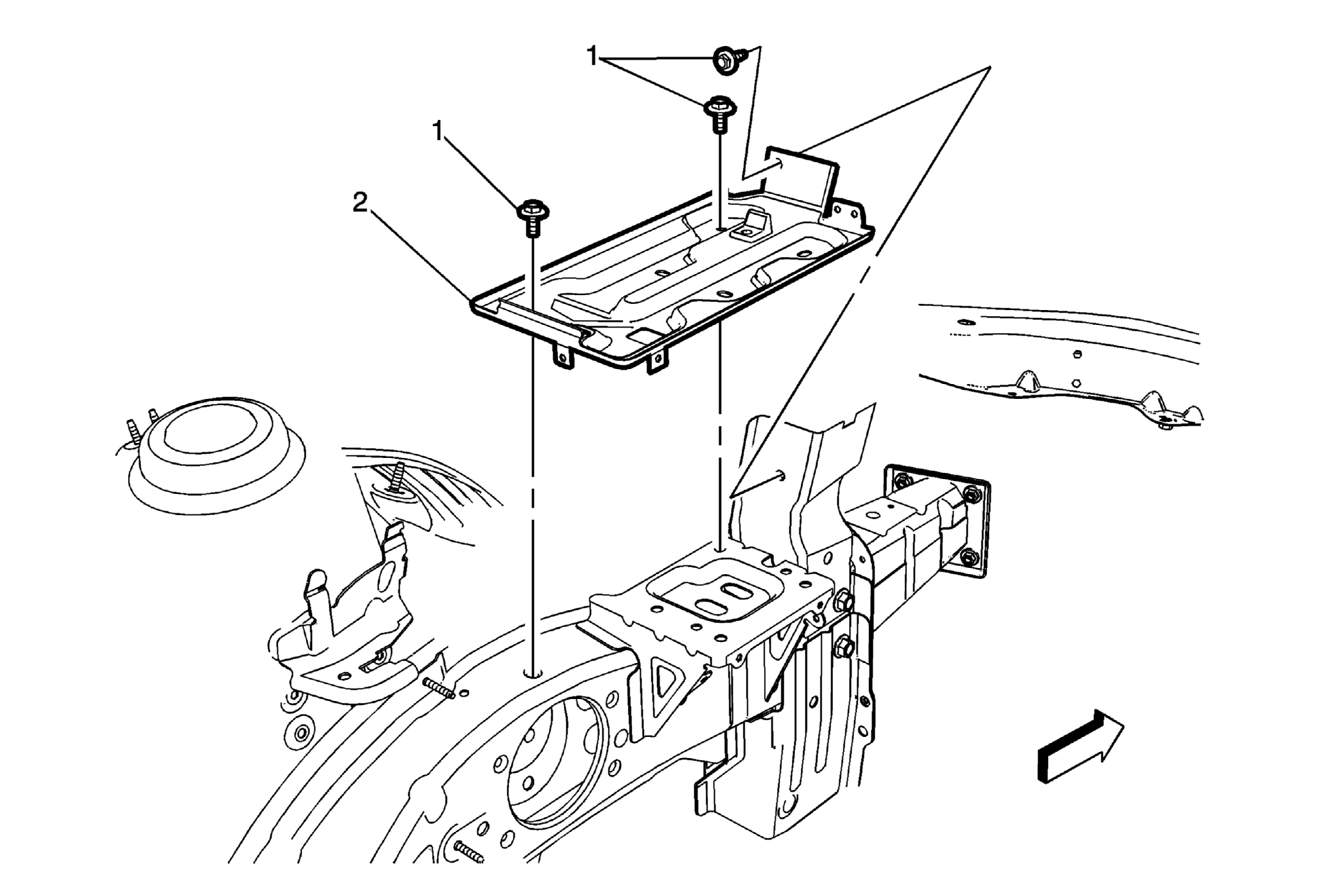

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the battery tray. Refer to Battery Tray Replacement . |
|
| 1 | Battery Tray Bolts (Qty: 3)
CAUTION:
Refer to Fastener Caution
.
Tighten: 9 N.m (80 lb in) |
| 2 | Battery Tray |
