Washer Pump Replacement

WARNING: This page is about a different car, the 2013 GMC Acadia, 2013 Chevrolet Traverse, and 2013 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

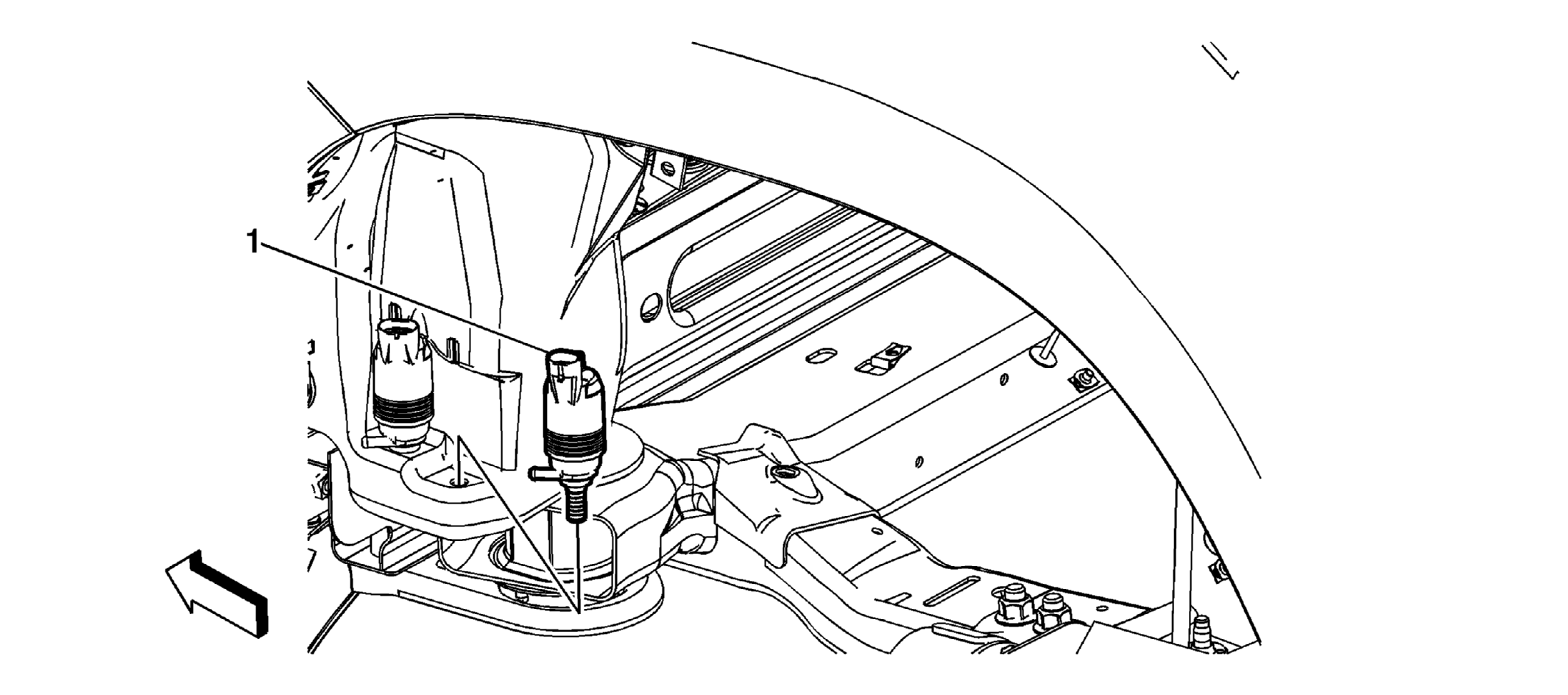

Fig 1: Washer Pump

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the LF wheelhouse liner in order to access the washer pumps. Refer to Front Wheelhouse Front Liner Replacement (Acadia, Enclave, Traverse) . Drain the washer solvent into a clean suitable container. Disconnect the electrical connector. Disconnect the washer pump hose.
1	Windshield Washer Pump Assembly Procedure Using two flat-bladed tools, at the pump gasket, pry upwards until the washer pump is dislodged from the washer container. Discard the windshield washer pump grommet.

Callout

Component Name

Preliminary Procedures

Remove the LF wheelhouse liner in order to access the washer pumps. Refer to Front Wheelhouse Front Liner Replacement (Acadia, Enclave, Traverse) .
Drain the washer solvent into a clean suitable container.
Disconnect the electrical connector.
Disconnect the washer pump hose.

Windshield Washer Pump Assembly

Procedure

Using two flat-bladed tools, at the pump gasket, pry upwards until the washer pump is dislodged from the washer container.
Discard the windshield washer pump grommet.
