Installation Procedure

WARNING: This page is about a different car, the 2013 GMC Acadia, 2013 Chevrolet Traverse, and 2013 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the torque tube assembly to the rear differential assembly. Refer to Driveline Torque Tube Replacement .

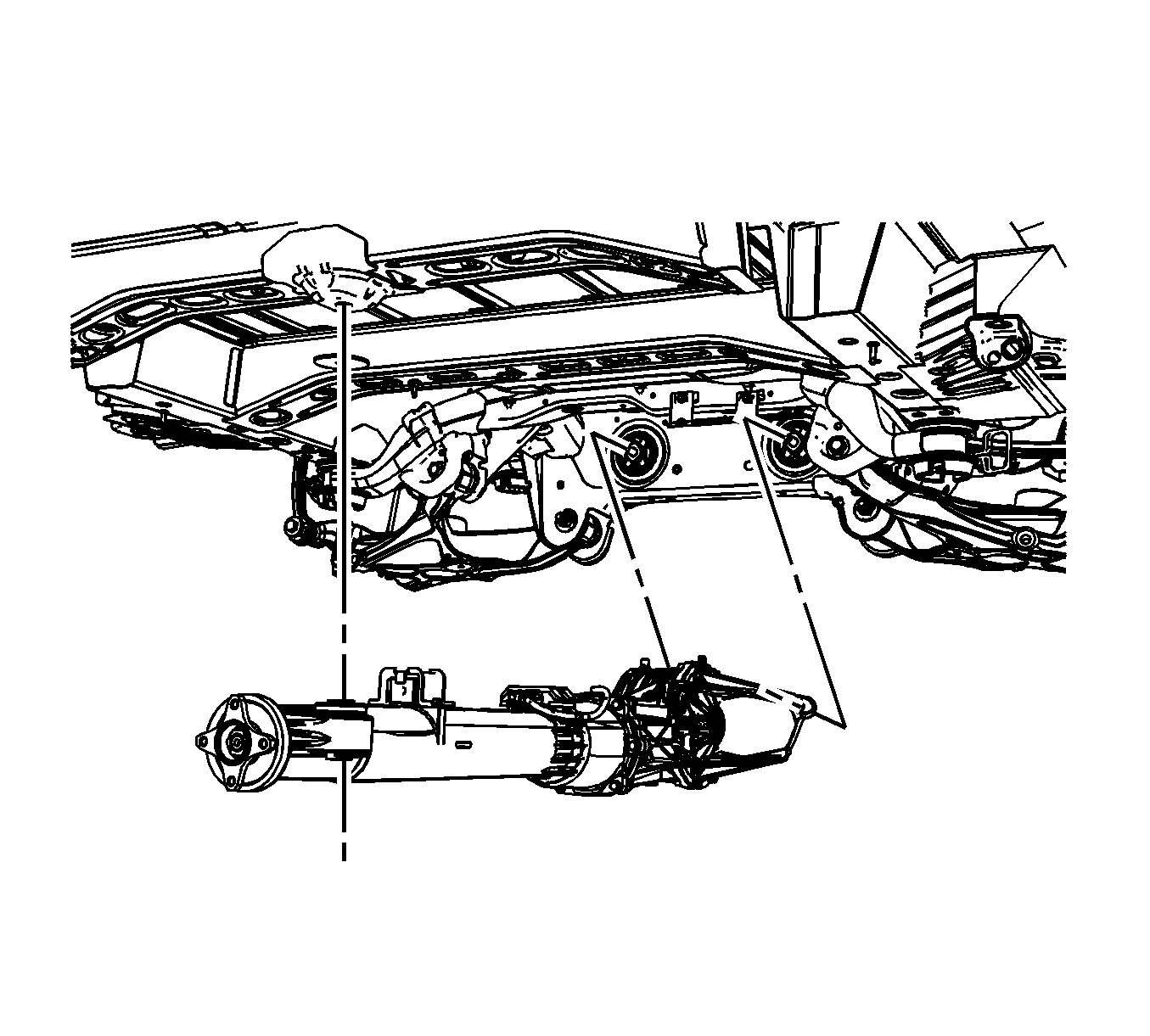

    2. Fig 1: Rear Differential Assembly
    GM1848893Courtesy of GENERAL MOTORS COMPANY
  2. Position the rear differential in the vehicle.

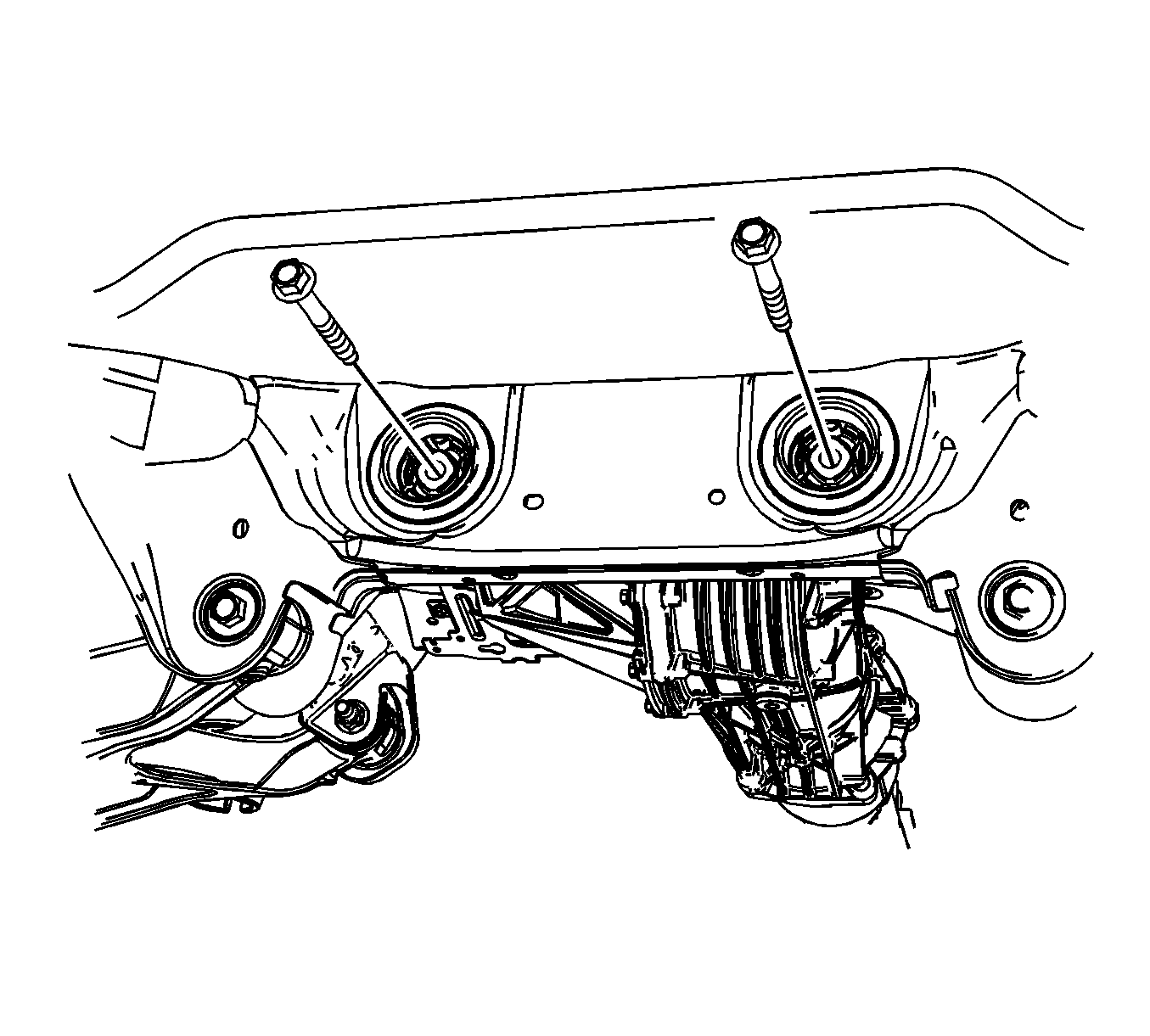

    3. Fig 2: Rear Differential Drive Mounting Bolts
    GM1848862Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  3. Install the rear differential mounting bolts.

    Tighten

    Tighten the bolts to 160 N.m (118 lb ft).

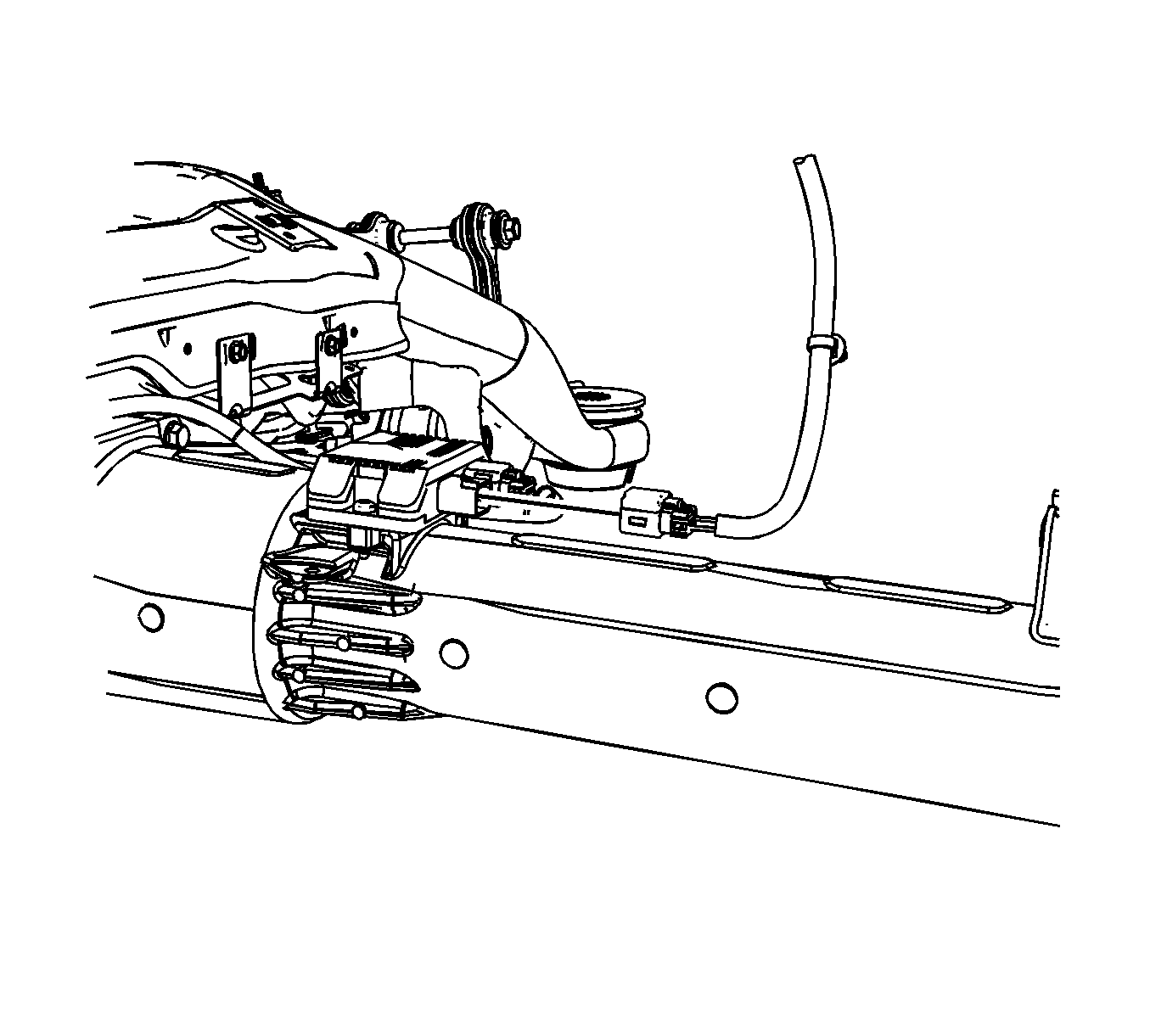

    4. Fig 3: Clutch Control Module Electrical Connector
    GM1848839Courtesy of GENERAL MOTORS COMPANY
  4. Reconnect the electrical connector for the electronic clutch control module.
    5. Fig 4: Torque Tube
    GM1848899Courtesy of GENERAL MOTORS COMPANY
  5. Lift the torque tube into position.
    6. Fig 5: Torque Tube Mounting Bolt
    GM1848880Courtesy of GENERAL MOTORS COMPANY
  6. Install the torque tube bolt.

    Tighten

    Tighten the bolt to 185 N.m (137 lb ft).

  7. Install the propeller shaft assembly. Refer to Propeller Shaft Replacement .
  8. Refill the rear differential assembly. Refer to Axle Lubricant Change .
  9. Install the rear wheel drive shaft. Refer to Rear Wheel Drive Shaft and Rear Axle Shaft Seal Replacement .
  10. Install the tires and wheels. Refer to Tire and Wheel Removal and Installation .
  11. Remove the support and lower the vehicle.
