Sunroof Frame Replacement

WARNING: This page is about a different car, the 2013 GMC Acadia, 2013 Chevrolet Traverse, and 2013 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

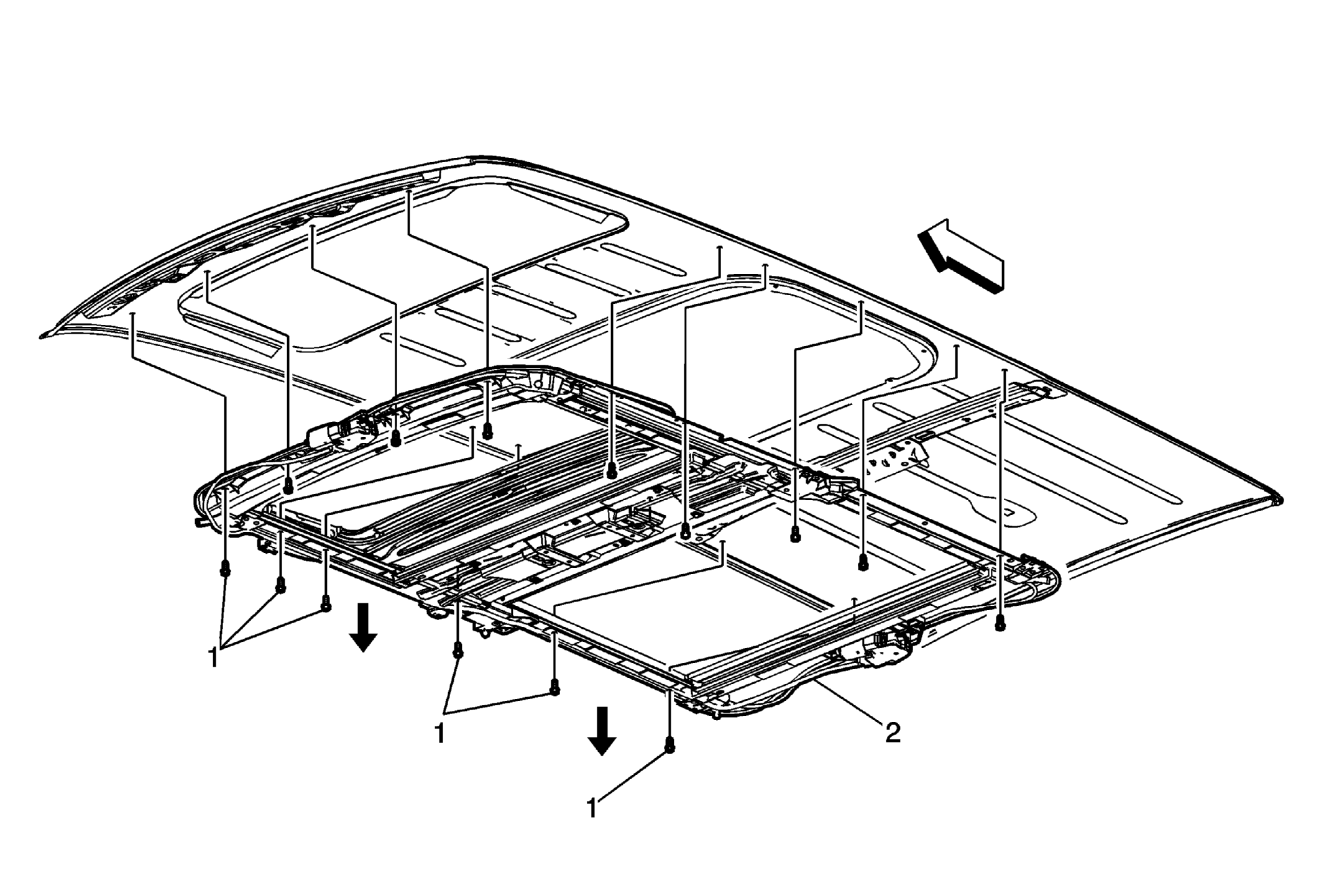

Fig 1: Sunroof Module Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the sunroof window from the sunroof module assembly. Refer to Sunroof Window Replacement . Remove the headliner. Refer to Headlining Trim Panel Replacement . Disconnect the sunroof harness electrical connectors. Disconnect the drain hoses from the sunroof assembly. Refer to the following procedures: Sunroof Housing Front Drain Hose Replacement Sunroof Housing Rear Drain Hose Replacement
1	Sunroof Module Bolt (Qty: 16) CAUTION: Refer to Fastener Caution . Procedure Do not remove the drain hoses from the vehicle, disconnect the drain hoses from the module only. Leave the four corner bolts until last. Recline the seats all the way rearward. With the aid of an assistant, remove the sunroof module assembly from the vehicle and place on a clean, prepared surface. Tighten 10 N.m (89 lb in)
2	Sunroof Module Procedure Transfer all necessary component to the new sunroof assembly. Initialize/Teach the sunroof and sunshade motor/actuators. Refer to Sunroof Motor/Actuator Initialization/Teach Process (New Motor) , Sunroof Motor/Actuator Initialization/Teach Process (Existing Motor) , Sunroof Motor/Actuator Initialization/Teach Process (New Roller Sunshade) or Sunroof Motor/Actuator Initialization/Teach Process (Existing Roller Sunshade) .

Callout

Component Name

Preliminary Procedure

Remove the sunroof window from the sunroof module assembly. Refer to Sunroof Window Replacement .
Remove the headliner. Refer to Headlining Trim Panel Replacement .
Disconnect the sunroof harness electrical connectors.
Disconnect the drain hoses from the sunroof assembly. Refer to the following procedures:
- Sunroof Housing Front Drain Hose Replacement
- Sunroof Housing Rear Drain Hose Replacement

Sunroof Module Bolt (Qty: 16)

CAUTION:

Refer to Fastener Caution .

Procedure

Do not remove the drain hoses from the vehicle, disconnect the drain hoses from the module only.
Leave the four corner bolts until last.
Recline the seats all the way rearward.
With the aid of an assistant, remove the sunroof module assembly from the vehicle and place on a clean, prepared surface.

Tighten
10 N.m (89 lb in)

Sunroof Module

Procedure

Transfer all necessary component to the new sunroof assembly.
Initialize/Teach the sunroof and sunshade motor/actuators. Refer to Sunroof Motor/Actuator Initialization/Teach Process (New Motor) , Sunroof Motor/Actuator Initialization/Teach Process (Existing Motor) , Sunroof Motor/Actuator Initialization/Teach Process (New Roller Sunshade) or Sunroof Motor/Actuator Initialization/Teach Process (Existing Roller Sunshade) .
