Sunroof Switch Replacement

WARNING: This page is about a different car, the 2013 GMC Acadia, 2013 Chevrolet Traverse, and 2013 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

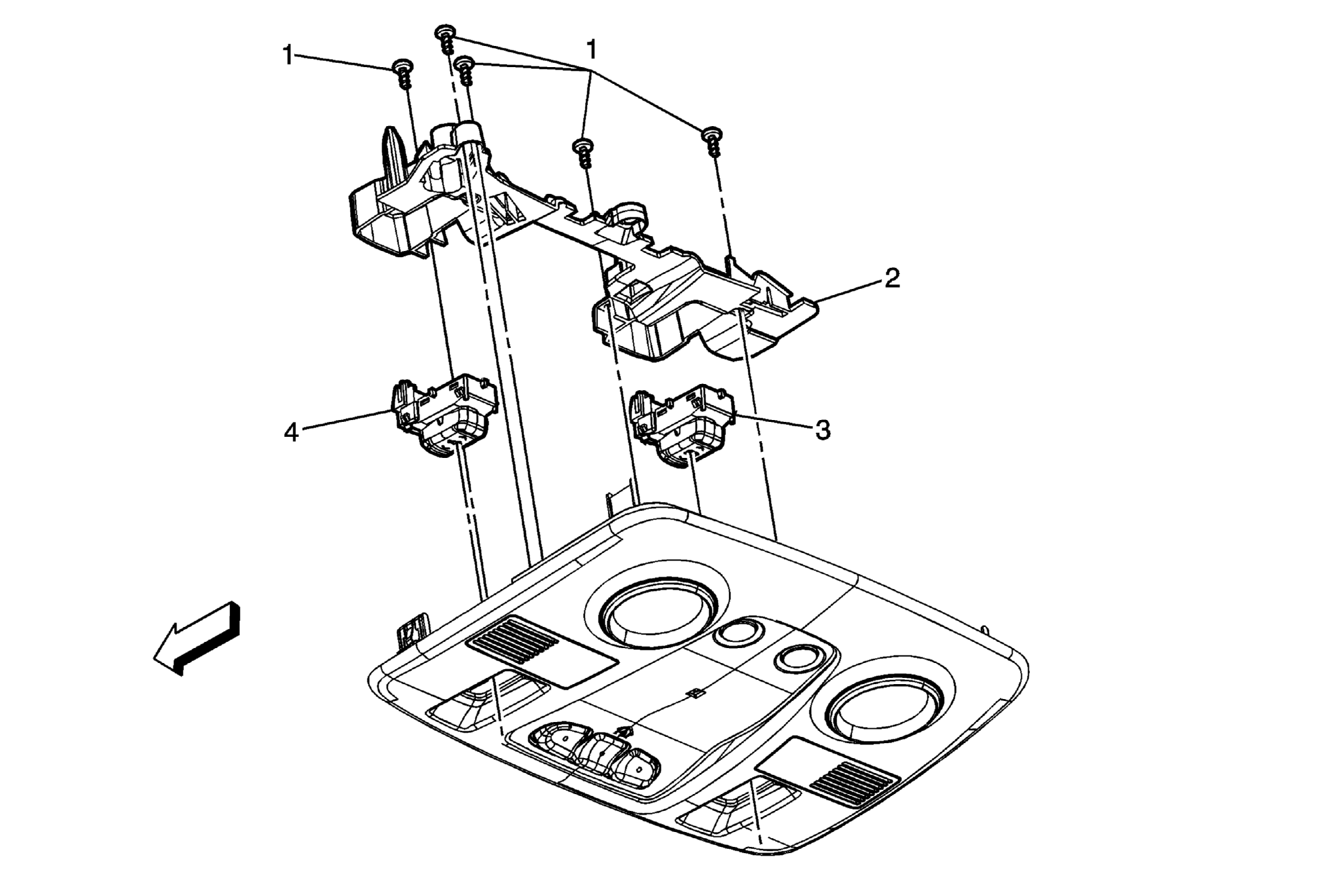

Fig 1: Sunroof Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the roof console assembly. Refer to Roof Console Replacement . Remove the garage door opener. Refer to Garage Door Opener Transmitter Replacement .
1	Utility Overhead Console Bracket Screw (Qty: 5) CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
2	Utility Overhead Console Bracket Procedure Disconnect the electrical connection.
3	Sun Roof Sunshade Switch Assembly
4	Sun Roof Switch Assembly
