Ignition Lock Key Transmitter Antenna Replacement - Rear Bumper Fascia
WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

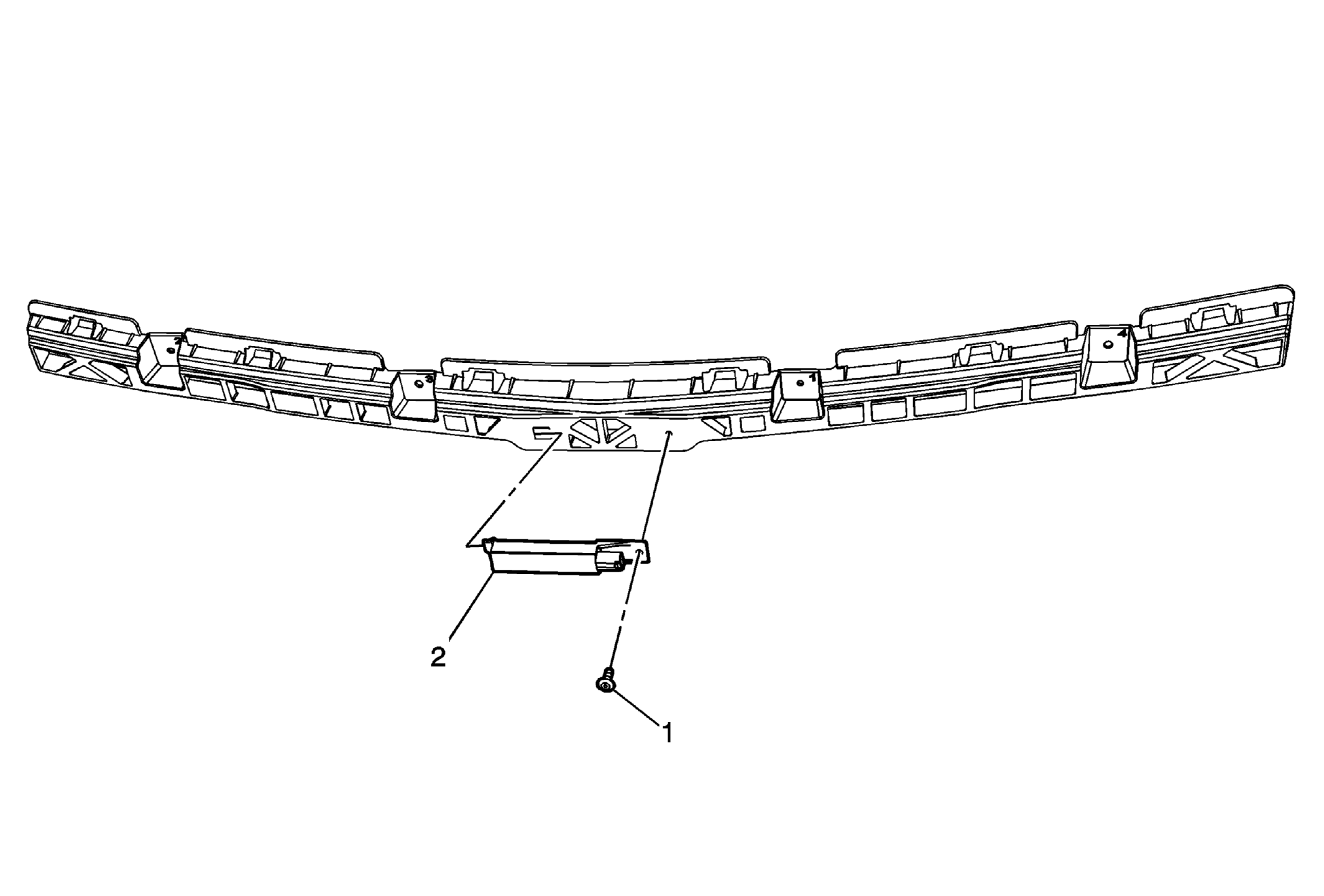

| Callout | Component Name |
|---|---|
|
WARNING:
Refer to Eye Protection Warning
. Preliminary Procedure: Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement
. |
|
| 1 | Ignition Lock Key Transmitter Antenna Rivet |
| 2 | Ignition Lock Key Transmitter Antenna Procedure: Disconnect the electrical connectors. |
