Instrument Panel Airbag Disable Switch Replacement (With C99)

WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

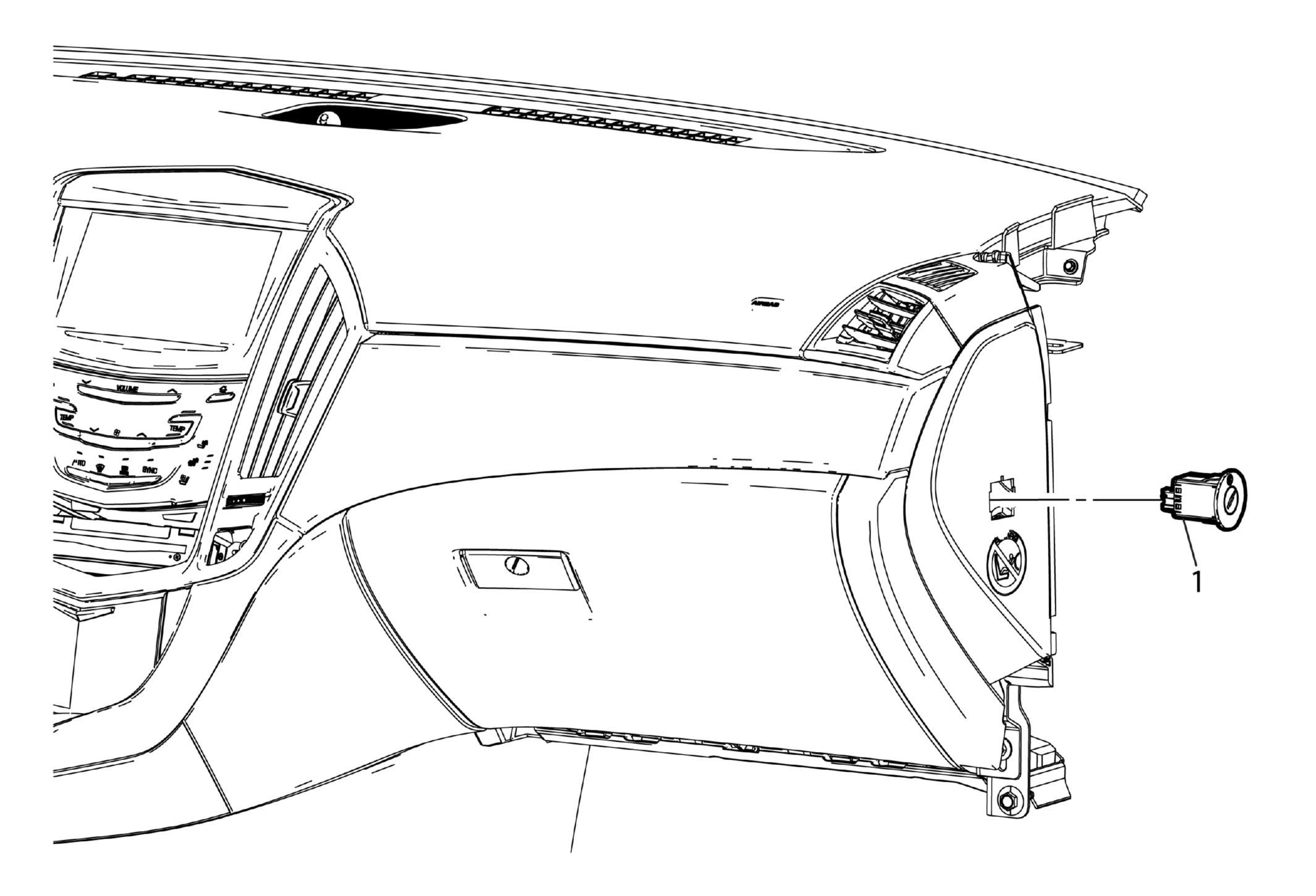

Fig 1: Instrument Panel Airbag Disable Switch Assembly (With C99)
GM3620107Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to SIR Warning .

Preliminary Procedure

  1. Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling .
  2. Remove the instrument panel side trim panel. Refer to Instrument Panel Side Trim Panel Replacement .
1 Instrument Panel Airbag Disable Switch Assembly

Procedure

  1. Use a small flat bladed tool to aid in the removal of the switch from the instrument panel side trim panel.
  2. Disconnect the electrical connector.
