Front Side Door Window Switch Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

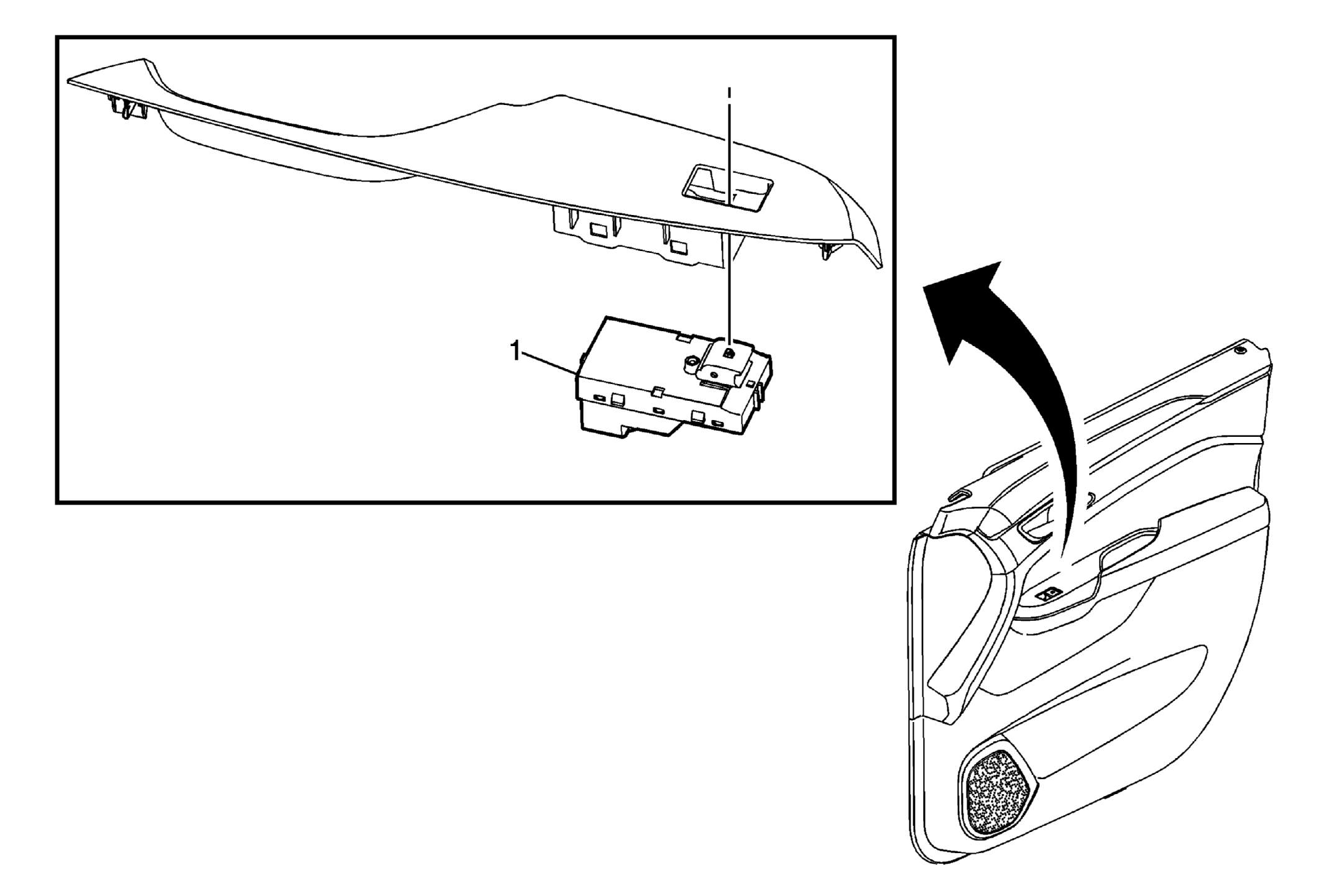

Fig 1: Identifying Front Side Door Window Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front side door accessory switch mount plate. Refer to Front Side Door Accessory Switch Mount Plate Replacement .
1	Front Side Door Window Switch Assembly Procedure Disconnect the electrical connectors. Refer to Control Module References .

Callout

Component Name

Preliminary Procedure:
Remove the front side door accessory switch mount plate. Refer to Front Side Door Accessory Switch Mount Plate Replacement .

Front Side Door Window Switch Assembly

Procedure

Disconnect the electrical connectors.
Refer to Control Module References .
