Headlamp Replacement (Traverse)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

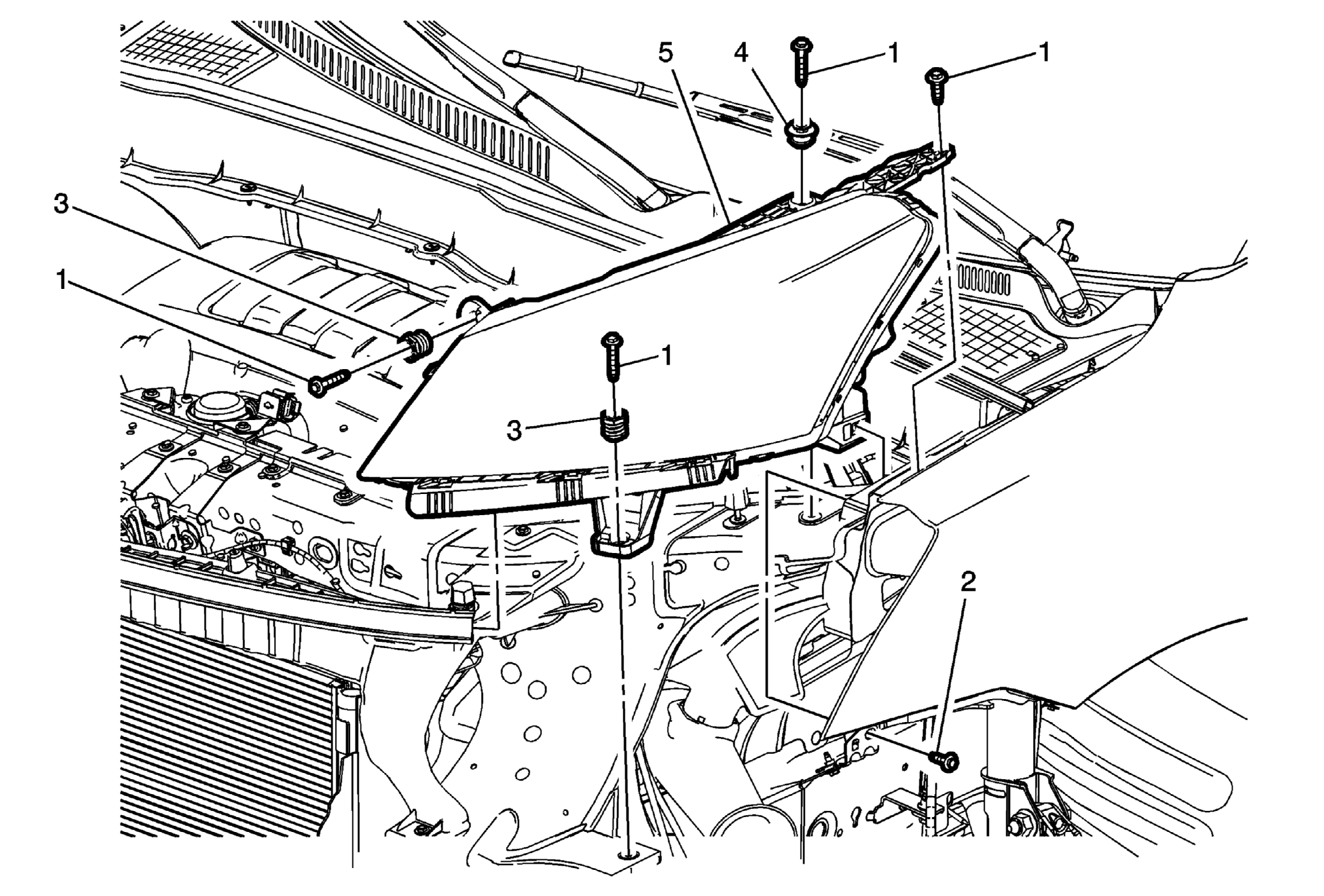

Fig 1: Headlamp (Traverse)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Traverse) .
1	Headlamp Bolt (Qty: 4) CAUTION: Refer to Fastener Caution .
2	Front Bumper Fascia Brace Bolt CAUTION: Refer to Fastener Caution .
3	Headlamp Horizontal and Vertical Adjustment Nuts (Qty: 2) Procedure Set the cam adjusting nuts to the nominal setting of 6 turns off fully seated prior to installing the new headlamp. Check the front bumper fascia to headlamp finish fit and adjust the cam nuts accordingly to achieve an even fit.
4	Headlamp Vertical Adjusting Nut
5	Headlamp Procedure Pull forward and up to remove the headlamp. Disconnect the electrical connector. Remove the headlamp from vehicle. Aim the headlamp after replacement. Refer to Headlamp Aiming
