Installation Procedure

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the brake caliper to the caliper bracket.
    2. Fig 1: Identifying Caliper Guide Pins
    GM2216182Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  2. Using a backup wrench to hold the brake caliper guide pins stationary, install the brake caliper guide pin bolts (1) and tighten to 60 N.m (44 lb ft).

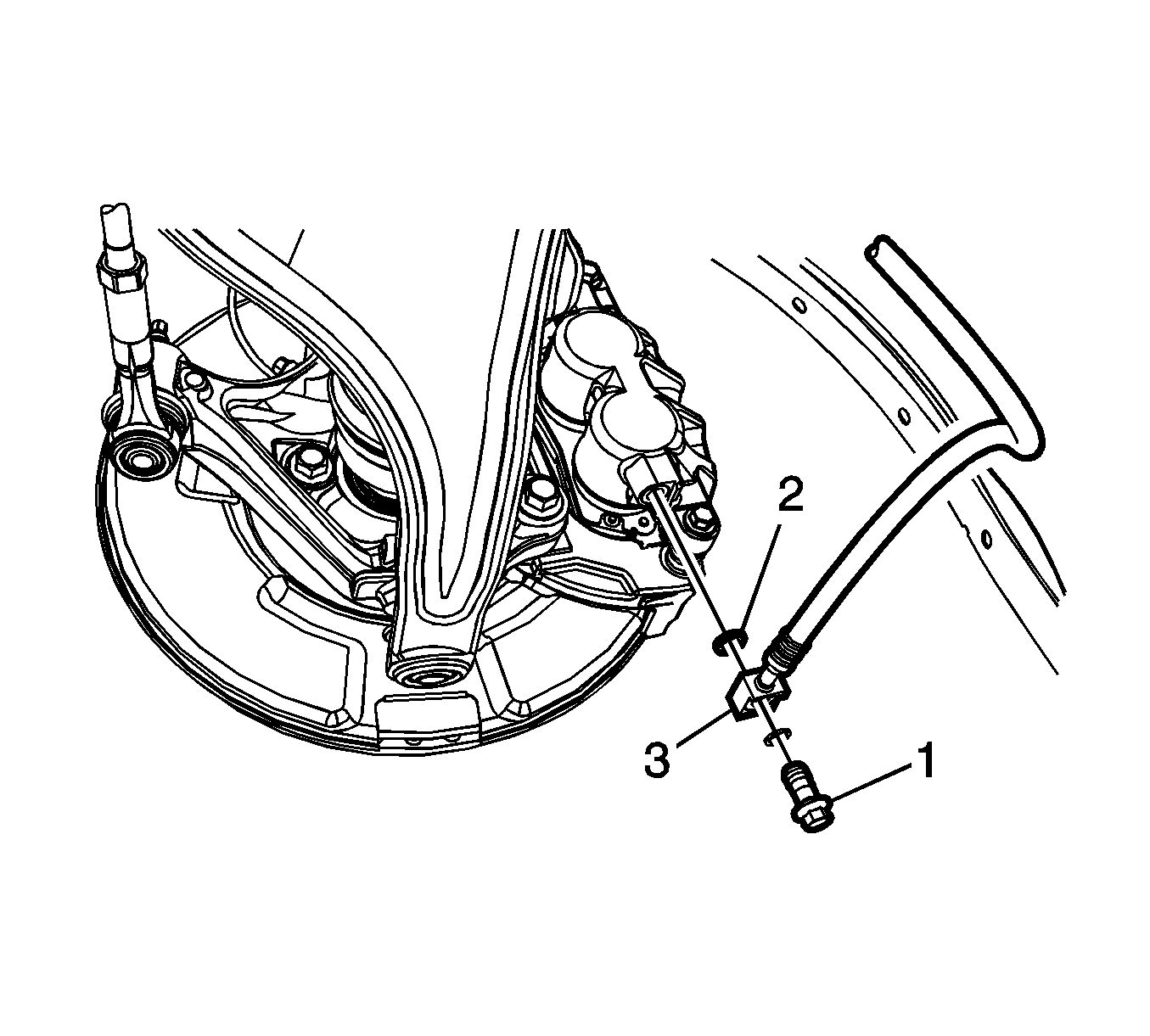

    3. Fig 2: View Of Brake Hose Fitting Bolt
    GM2216181Courtesy of GENERAL MOTORS CORP.
    NOTE: Install new brake hose fitting gaskets.
  3. Assemble the brake hose fitting bolt (1) and 2 new brake hose fitting gaskets (2) to the brake hose fitting (3).
  4. Install the brake hose assembly to the brake caliper and tighten the fitting bolt to 40 N.m (30 lb ft).
  5. Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Manual) or Hydraulic Brake System Bleeding (Pressure) .
  6. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
