Installation Procedure

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

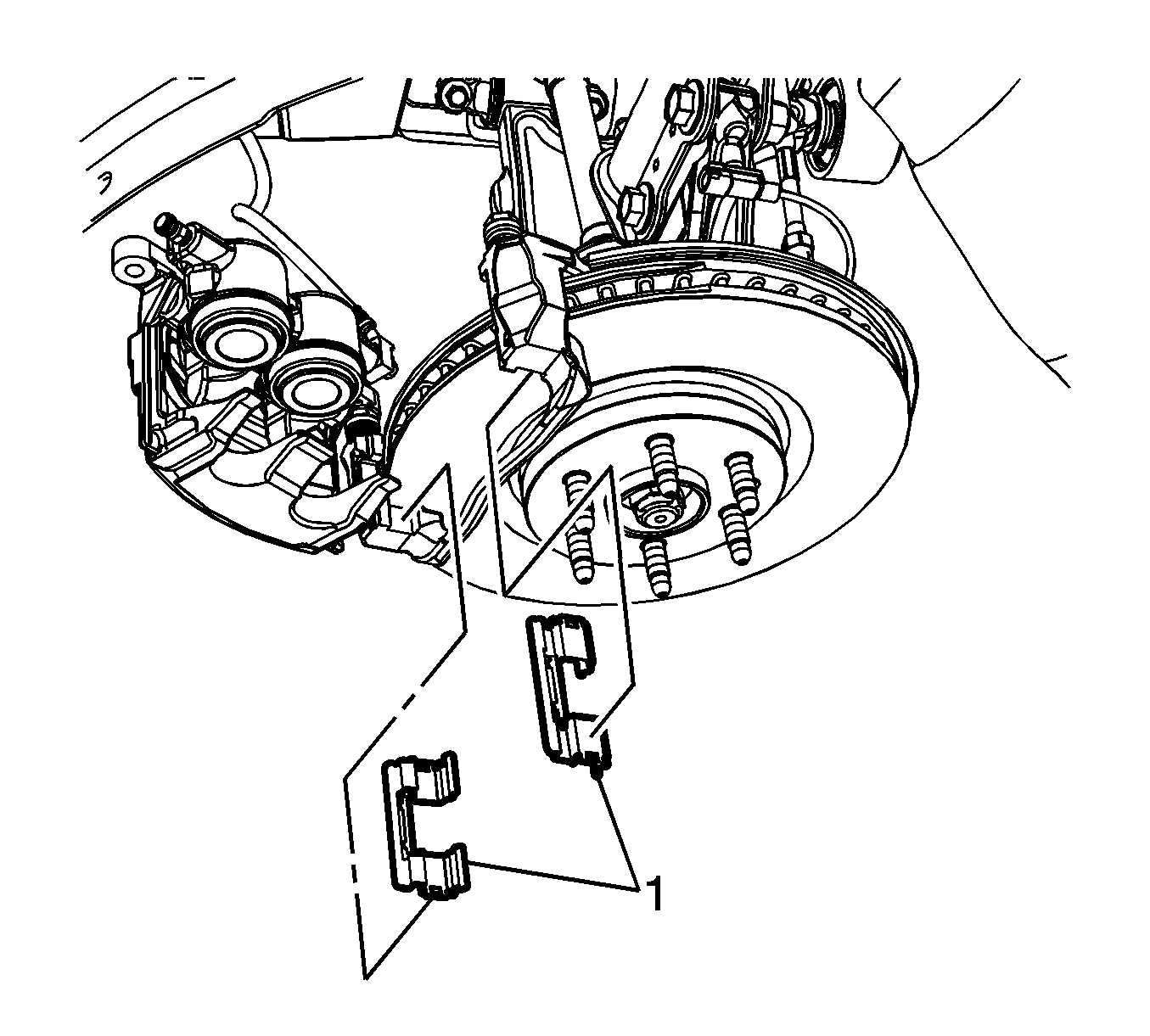

    Fig 1: View Of Upper & Lower Brake Pad Springs
    GM2216180Courtesy of GENERAL MOTORS CORP.
    NOTE: If installing new brake pads, install new springs.
  1. Install the upper and lower brake pad springs (1).

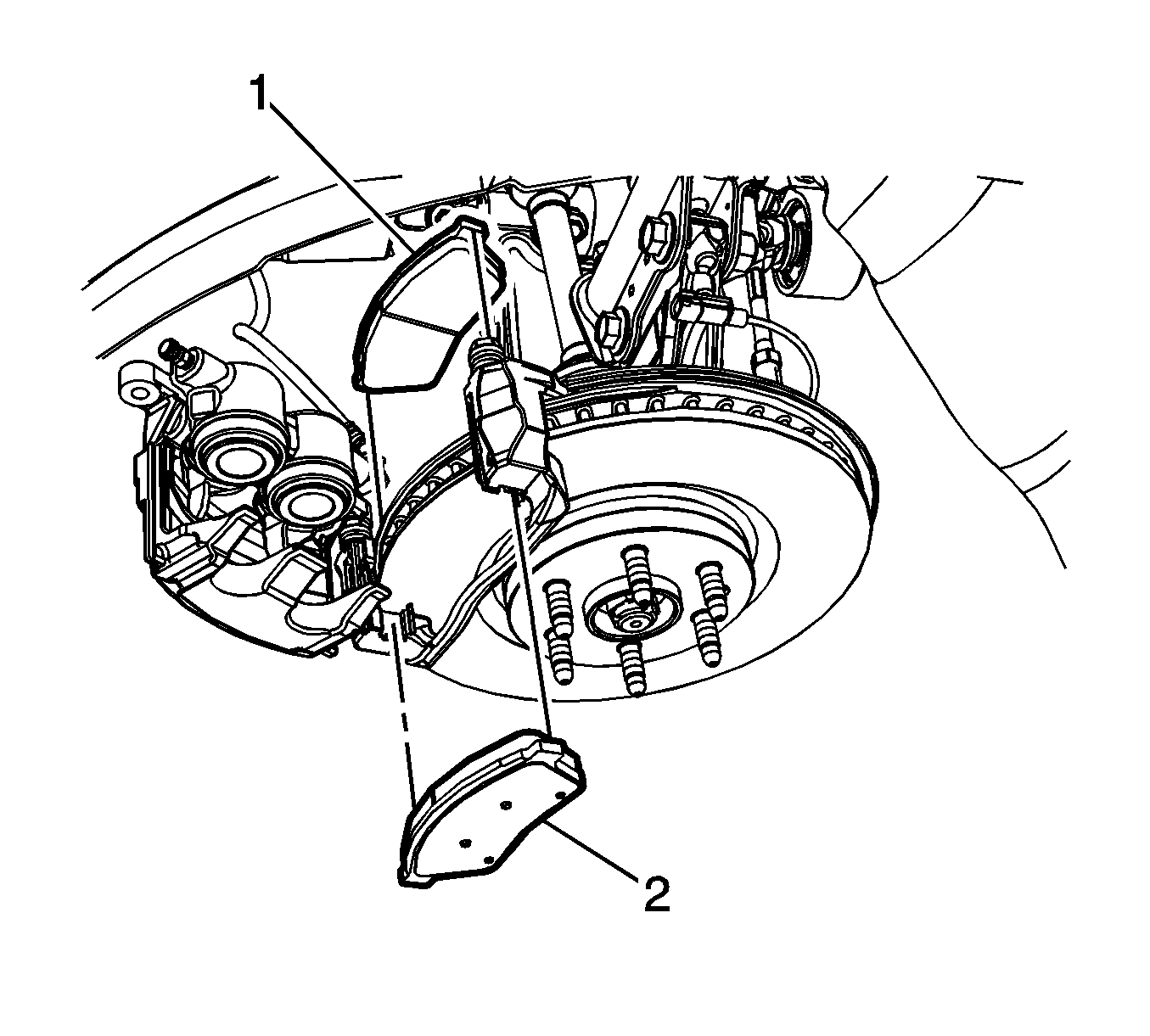

    2. Fig 2: Identifying Disc Brake Pads
    GM2216179Courtesy of GENERAL MOTORS CORP.
  2. Install the inner brake pad (1) and the outer brake pad (2).

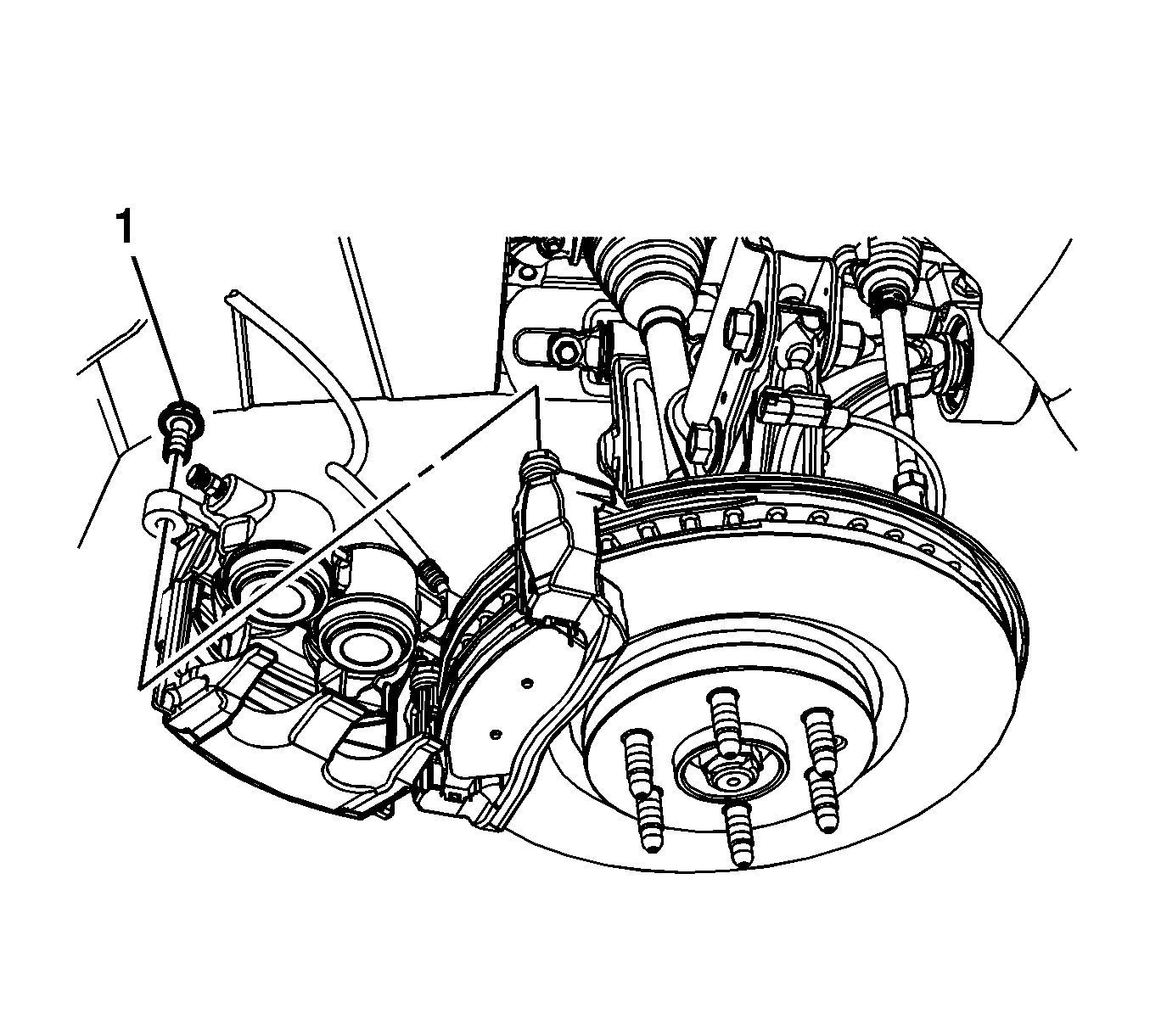

    3. Fig 3: Identifying Caliper Guide Pin Bolt
    GM2216177Courtesy of GENERAL MOTORS CORP.
  3. Rotate the brake caliper into position.
    4. CAUTION: Refer to Fastener Caution .
  4. Using a backup wrench to hold the brake caliper guide pin stationary, install the brake caliper guide pin bolt (1) and tighten to 60 N.m (44 lb ft).
  5. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  6. With the engine OFF, gradually apply the brake pedal to approximately 2/3 of its travel distance.
  7. Slowly release the brake pedal.
  8. Wait 15 seconds, then repeat steps 6-7 until a firm brake pedal is obtained. This will properly seat the brake caliper pistons and brake pads.
  9. Fill the master cylinder reservoir to the proper level. Refer to Master Cylinder Reservoir Filling .
  10. Burnish the brake pads and rotors. Refer to Brake Pad and Rotor Burnishing .
