Installation Procedure

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

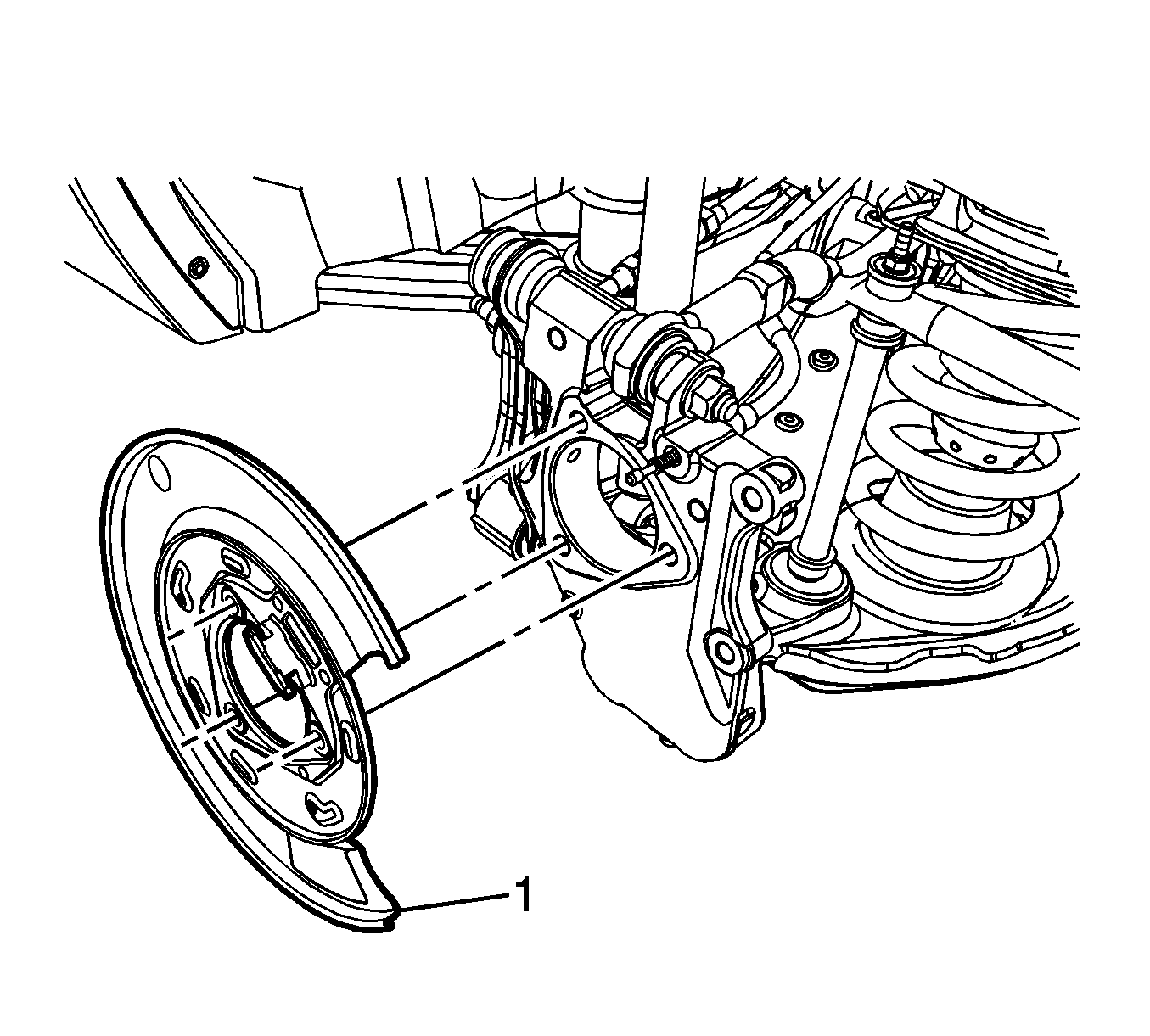

    Fig 1: View Of Rear Disc Brake Backing Plate
    GM2230126Courtesy of GENERAL MOTORS CORP.
  1. Install the rear disc brake backing plate (1).
  2. Install the rear wheel bearing and hub assembly. Refer to Rear Wheel Bearing and Hub Replacement .

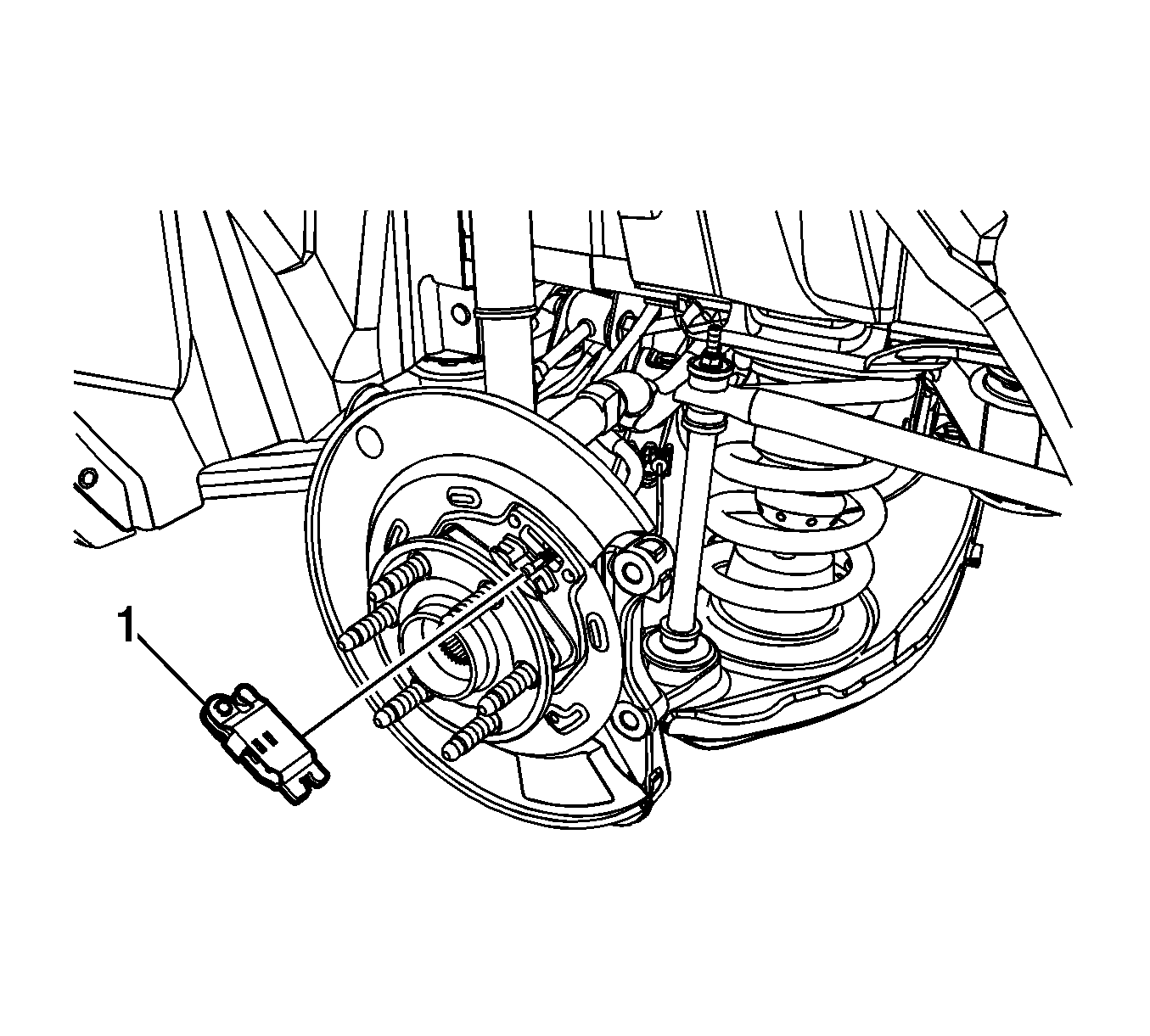

    3. Fig 2: Identifying Parking Brake Actuator
    GM2230124Courtesy of GENERAL MOTORS CORP.
  3. Install the parking brake actuator (1). Refer to Parking Brake Actuator Replacement .
  4. Install the park brake shoes. Refer to Parking Brake Shoe Replacement .
  5. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  6. Enable the parking brake cable adjuster. Refer to Parking Brake Cable Adjuster Enabling .
